VARIOMATIC TRANSMISSION VT-4
V-BELT
Check the V-belt for break, fissures,
aging, and other damages.

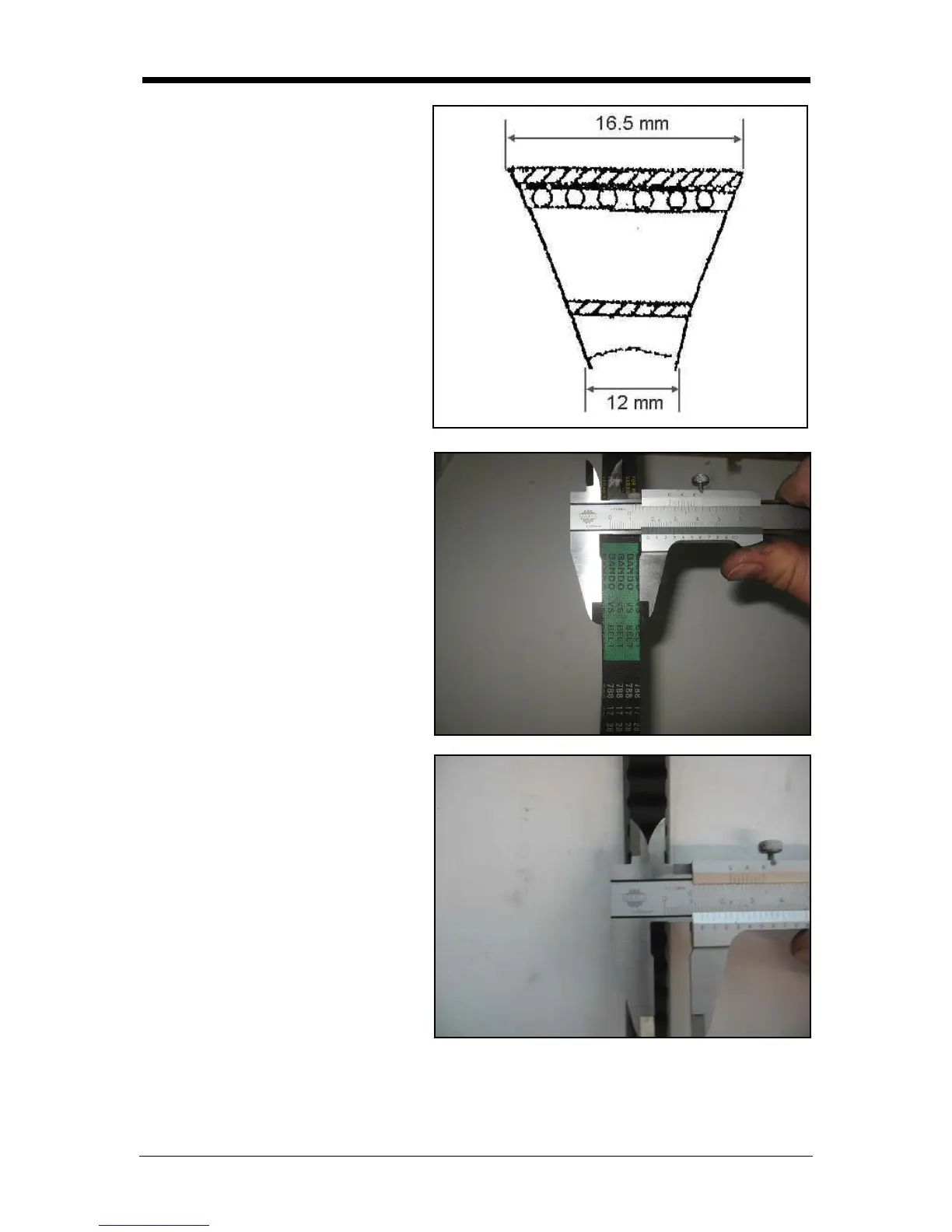

Measure the width of the V-belt upper
and lower side.
Upper side wear limit: 16.5 mm
Lower side wear limit: 12 mm
Replace the drive belt if the wear limit is
exceeded.
If the lower side width is less than the
defined wear limit the angle of the V-belt
shape is changed.
Note that the proper functioning of the
belt transmission is not ensured if the belt
width is less than the defined wear limit.
