CPI FORMULA R - BATTERY AND CHARGING

ELECTRICAL SYSTEM ES-4

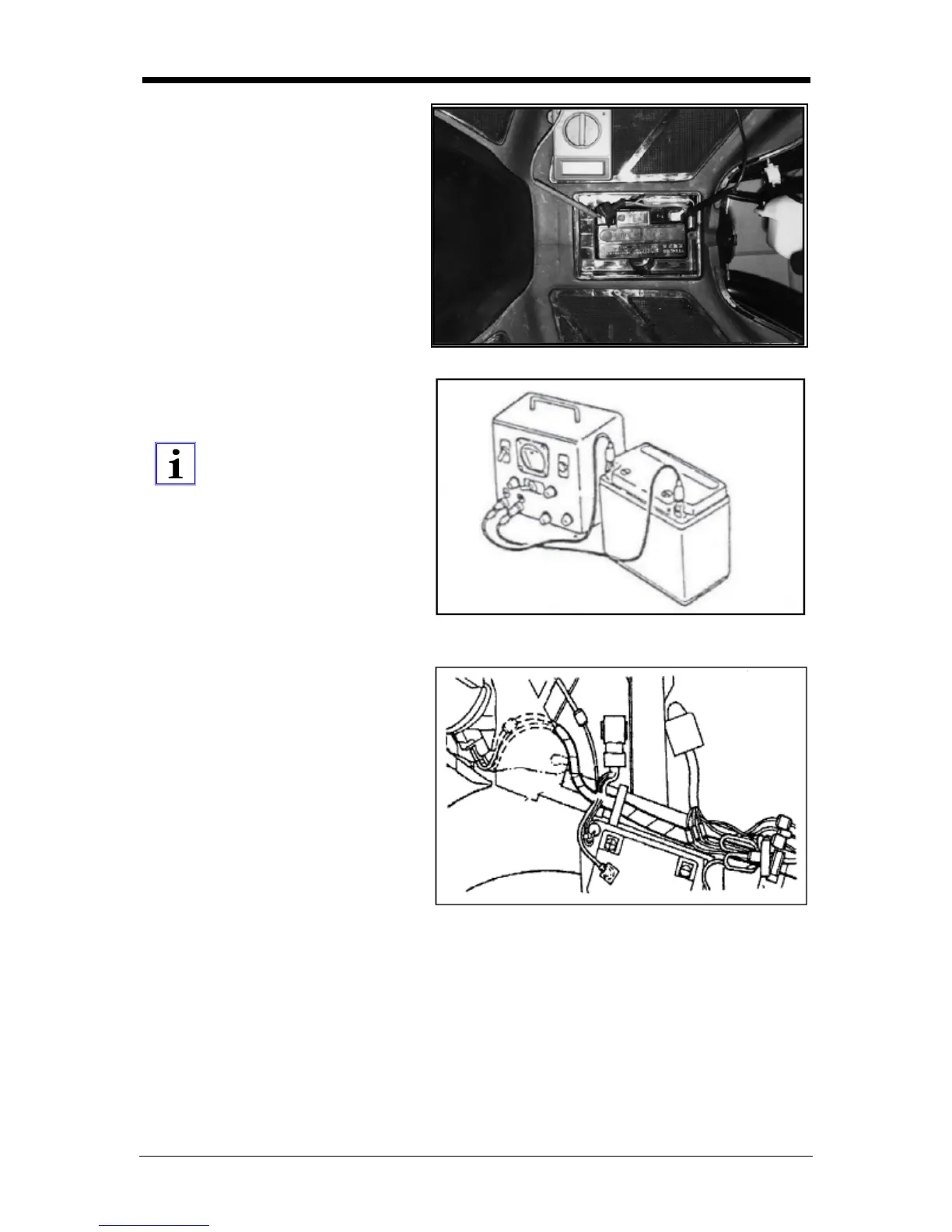

STARTER BATTERY
CHECK
Measure the voltage of the starter
battery.
Fully charged: 13.0 ~ 13.2 V
Discharged: 11 V
Measure the charging voltage.
14 ± 0.5 V at5000 rpm
STARTER BATTERY
CHARGING
The CPI JR comes with a
maintenance-free starter
battery. Use battery chargers
that are suited for those battery types
(e.g. Optimate / Tec Mate®
International S.A. B-3300 Tienen,
Belgium). The use of non-suited
chargers may cause damages to the
starter battery.
Charging current: 0.4 A
Charging time: 5 ± 0.5 hours
LIGHT/ CHARGING COIL
Light coil: Measure the resistance
between the green/red and black cables.
Desired value: 0.8 ± 0.4 Ω at 20°C
ambient temperature
Charging coil: Measure the resistance
between the white and black cables.
Desired value: 0.8 ± 0.4 Ω at 20°C
ambient temperature
