Operating Controls

SUMMARY:

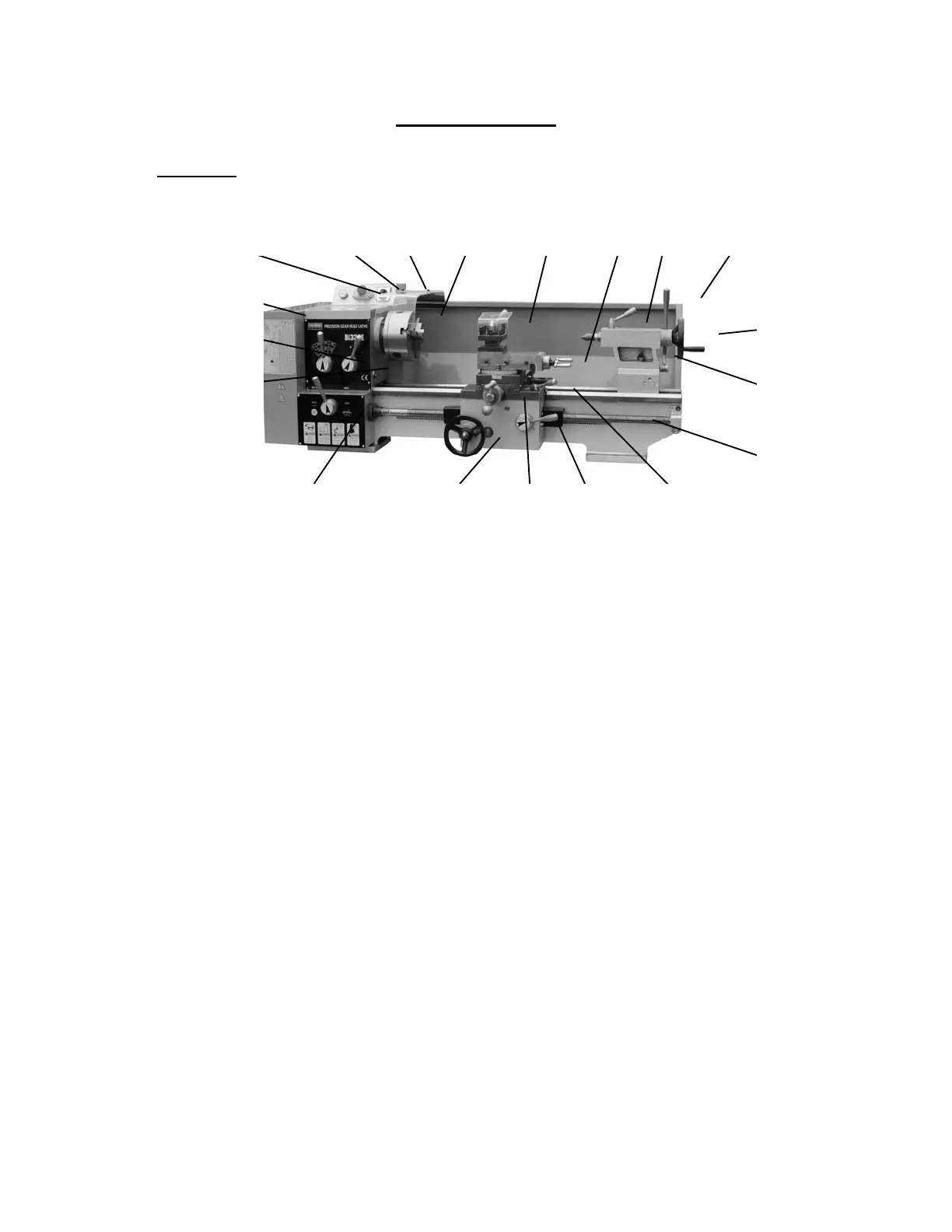

REFER TO THE DIAGRAM BELOW FOR THE BL330E operation controls.



 Fig 8. Operation Parts Fig.



1. Handler of Spindle Speed Change A

2. Handler of Spindle Speed Change B

3. Change Gear Box

4. Power Indictor

5. Emergency Stop Switch

6. Forward-Stop-Reverse Switch

7. Self-centering 3 Jaw Chuck

8. Handler of 4-way Tool Post

9. Tool Post Feeding Handler

10. Handle Lock for tailstock center

11. Lever to lock Tailstock

12. Tailstock hand-wheel

13. Tailstock Offset Screw

14. Main Lead-screw

15. Longitudinal-cross feed handle

16. Handler of Auto-Feed (Half Nut)

17. Carriage Cross Feed hand wheel

18. Apron feed hand-wheel

19 Handle of forward/reverse for lead screw



4567891011

3



2



1

1918171615

12



13



14
