STOP/START SWITCH
LOCKOUT
This is to safeguard the band saw from
unauthorized operation and to avoid
accidental startup by children. The SWITCH
has two holes through the switch guards
enabling the insertion of a padlock. This will
successfully guard against unauthorized
use.

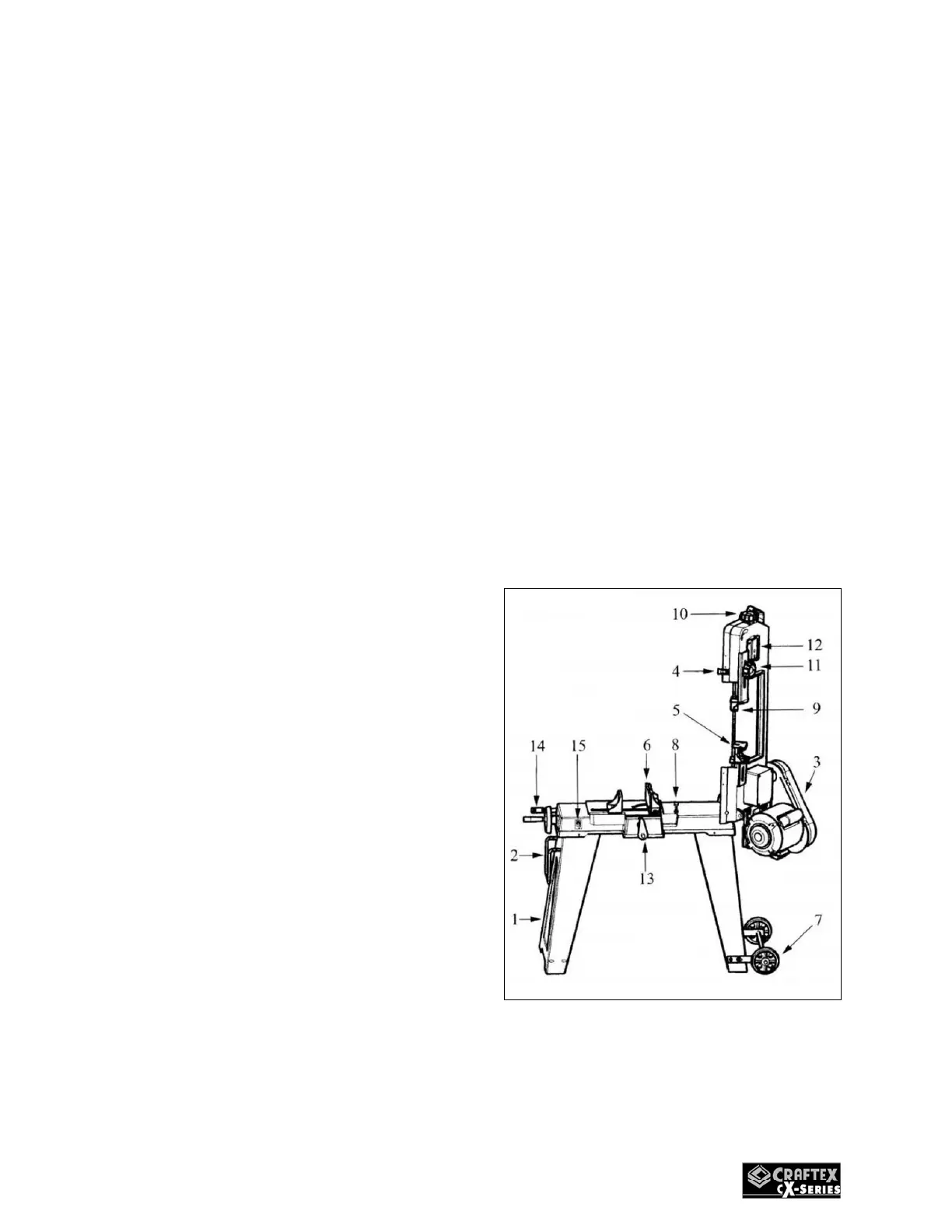

BANDSAW FUNCTIONS:
1. STAND - Simple rolling support
stand with removable wheel
assembly which enables the band
saw to be bolted to a supporting
surface.
2. HANDLE - To easily assist
movement of the band saw.
3. PULLEY COVER - Protection
cover for the V-belts
4. AUTO STOP TAB - As band saw
lowers to the horizontal position it
engages the start/stop switch and
cuts power to the motor.
5. VERTICAL TABLE - Provides a
working surface for when the saw is
in the vertical position
6. VISE PLATE - provides a means
to tighten and hold the workpiece
securely from 0- 45 degrees.
7. WHEELS - Allows for easy
movement of the machine and
provides additional support when the
machine is in the vertical position.
8. STOP BOLT & LOCK NUT -
Controls the lowest cutting position
9. BLADE SUUPORT & GUIDE
BEARINGS - Keeps the blade
tracking properly
10. BLADE TENSION ADJUSTMENT
KNOB - Controls blade tension
11. BLADE GUIDE ADJUSTMENT
KNOB - Adjusts the blade guide
brackets to accommodate the size of
the workpiece.
12. BLADE ADJUSTMENT SCREW -
Adjusts the blade to the proper
position
13. STOCK STOP - Used as a stop
when doing repeated cuts of the
same length.
14. PRESSURE ADJUSTMENT
HANDLE - Increases and
decreases feed pressure
15. STOP/START SWITCH - Start
switch and when Auto Stop engages
ā automatic shut off.
