EYE SHIELD, TOOL REST
AND FRONT DUST PORT

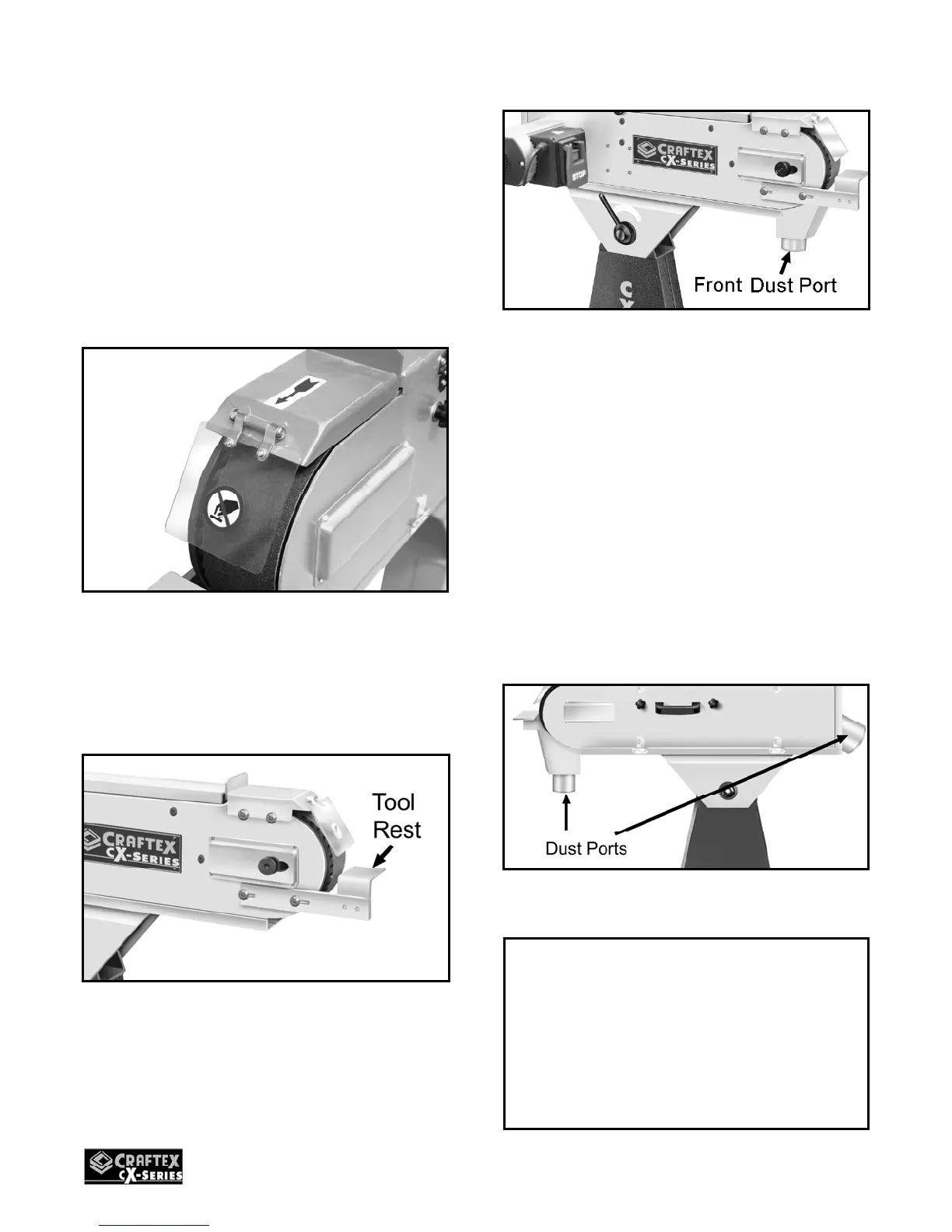

The CX503 features an eye shield in front
of the belt for the protection of operator’s
eyes. The eyes shield must be installed
before operation.
Install the eye shield to the sander as
shown in figure-8.
Figure-8 Installing eye shield
Attach the tool rest to the sander and
secure it using the screws provided. See
figure-9.
Figure-8 Installing the tool rest
The front dust port is installed to the front of
the machine just below the tool rest shown
in figure-9 using screws provided.
Figure-11 Installing spark trap
DUST COLLECTION
The CX503 features two dust ports to
connect to a metal dust collection system
for optimum metal dust removal. Make sure
to use a system rated for metal dust
collection.
When connecting to a dust collector, use
proper sized hoses and make sure all the
connections are sealed tightly. Also ensure
that the hose is suitable for metal dust
extraction.
Figure-9 CX503 Dust ports
WARNING
The fine dust particles produced by the
machine, can go inside your lungs
causing serious respiratory problems.
Connect the machine to a proper dust
collection system and make sure you are
wearing a dust mask while operation.

Craftex CX503 Specifications

General

Brand	Craftex
Model	CX503
Category	Sander
Language	English
