6
CX503 – METALWORKING SANDER

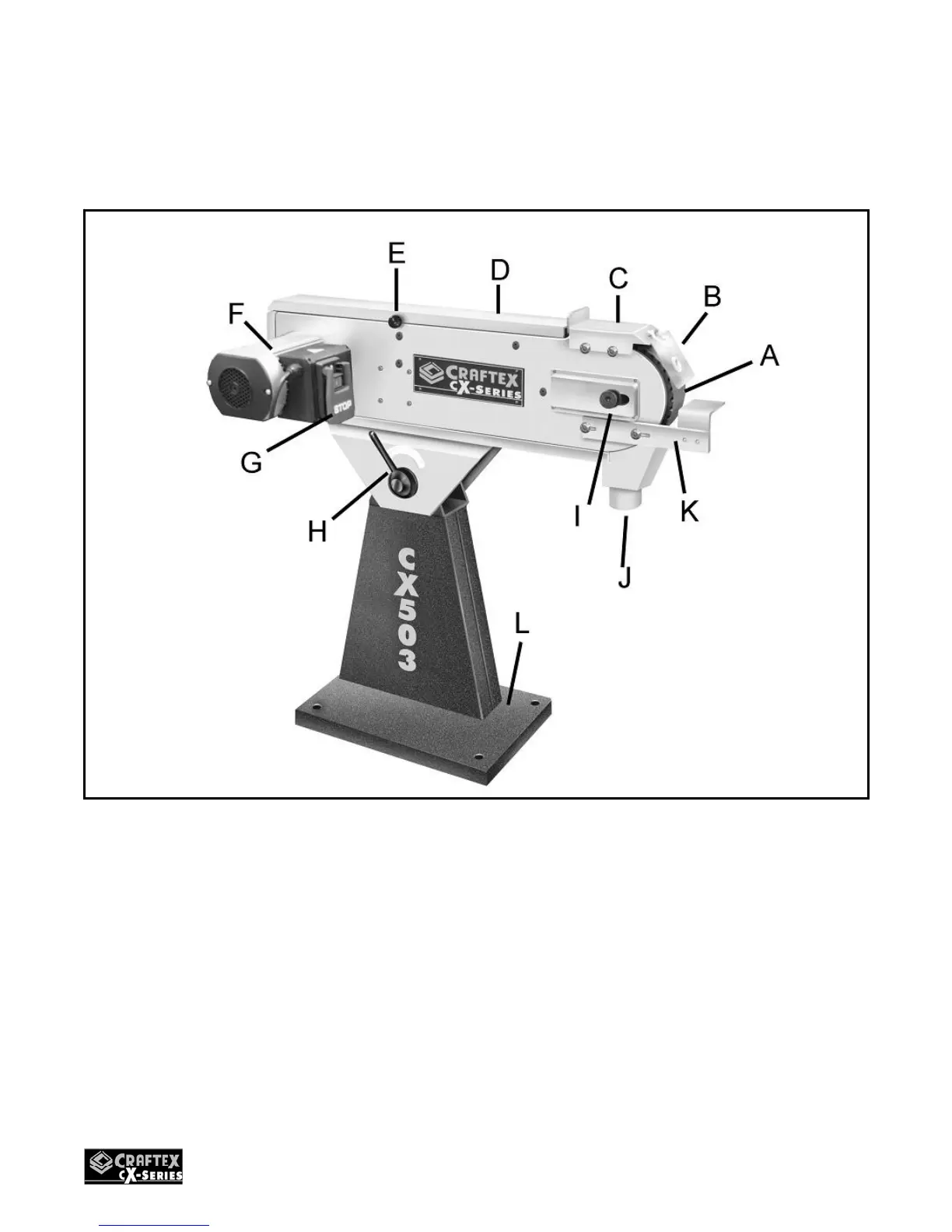

PHYSICAL FEATURES
A. Sanding Belt
B. Eye Shield
C. Eye Shield Bracket
D. Belt Guard
E. Belt Guard Securing Knob
F. Motor
G. ON/OFF Switch
H. Angle Adjustment Lever
I. Belt Tracking Adjustment Knob
J. Front Dust Port
K. Tool Rest
L. Base
