UNPACKING
To ensure safe transportation this machine
is properly packaged and shipped
completely in a crate. When unpacking,
carefully inspect the crate and ensure that
nothing has been damaged during transit.
While doing inventory, if you can not find
any part, check if the part is already
installed on the machine. Some of the parts
come assembled with the machine for the
shipping purposes.
SETUP
Before setting up your machine you should
read and understand the instructions given
in this manual.
The unpainted surfaces of this machine are
coated with a rust preventive waxy oil and
you will want to remove this before starting
assembly. Use a solvent cleaner that will
not damage painted surfaces.
MOUNTING TO
A TABLE TOP
The CX617 features two mounting holes
allowing it to be mounted to a table top
having a load capacity of approximately 38
Kg.

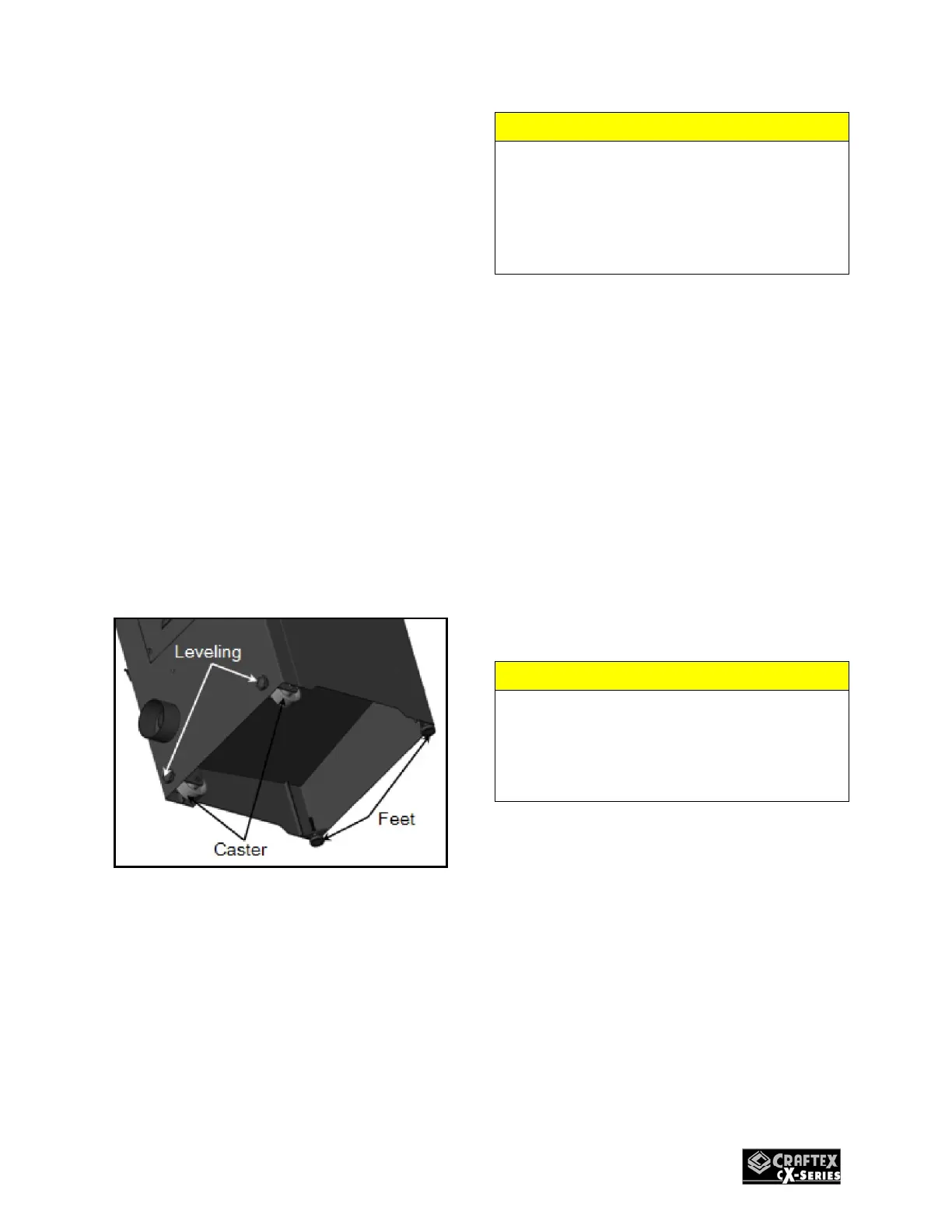

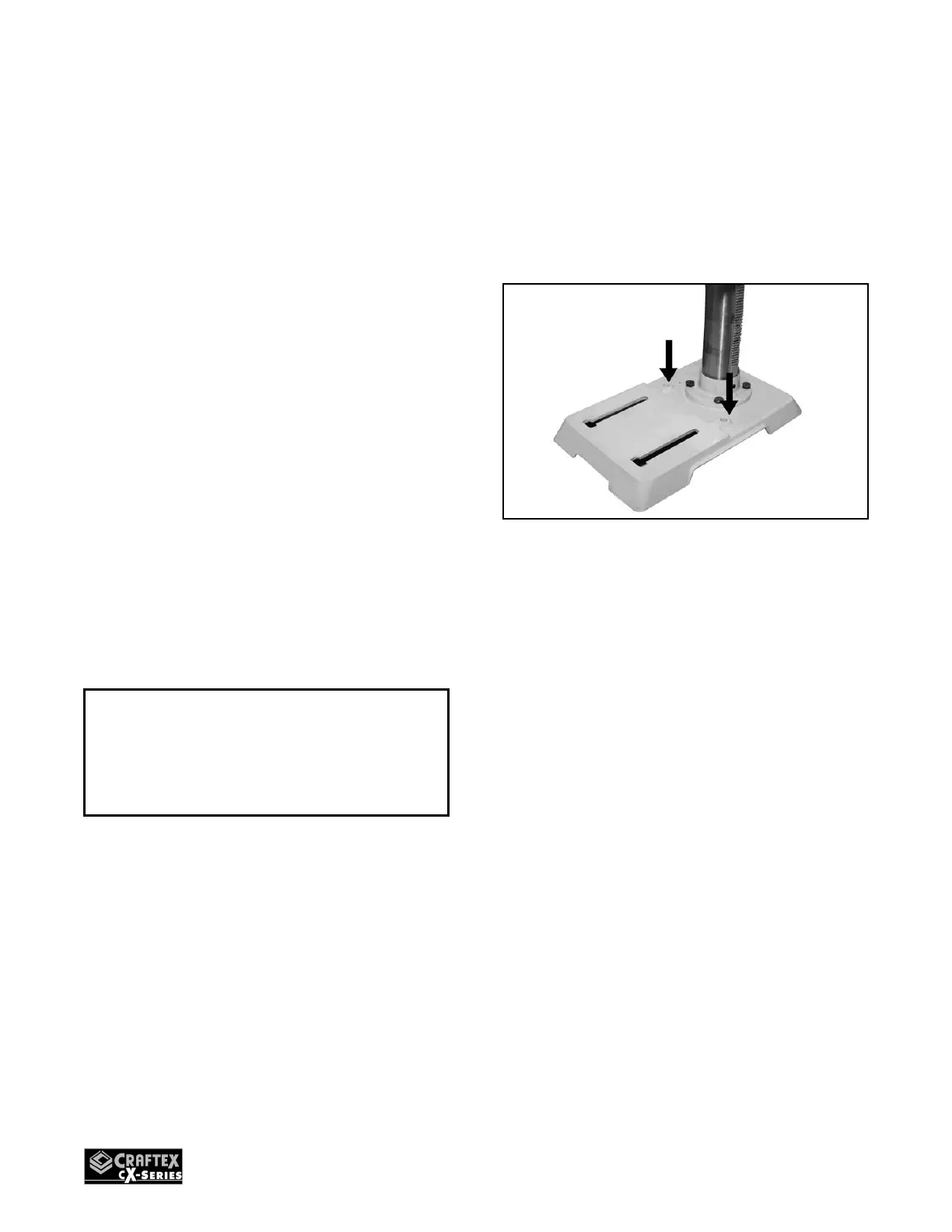

Figure-2 Mounting holes on the base
To mount the drill press to the table top:
Make sure the surface is flat and stable.
Position the drill press onto the table and
use the two holes on the drill press base as
a guide and drill into the table.
Secure the drill press to the table by using
lag bolts, flat washers and hex nuts (not
provided).
TABLE SUPPORT
To install the table support:
Slide the table support assembly all the way
down until it rests on the base.
Install the support lock handle to right side
of the table support as shown in figure-3.
WARNING!
CX617 is a heavy machine, do not over-
exert yourself. Use a fork truck or get the
help of an assistant for safe moving.
