UNPACKING
The machine is properly packaged in a
carton for safe transportation. When
unpacking, carefully inspect the crate and
ensure that nothing has been damaged
during transit. Open the crate and check
that the machine is in a good condition.
There is a bag which contains some loose
parts of the machine. After the machine
has been un-packed, check that all loose
parts shown in Figure-1 are present.

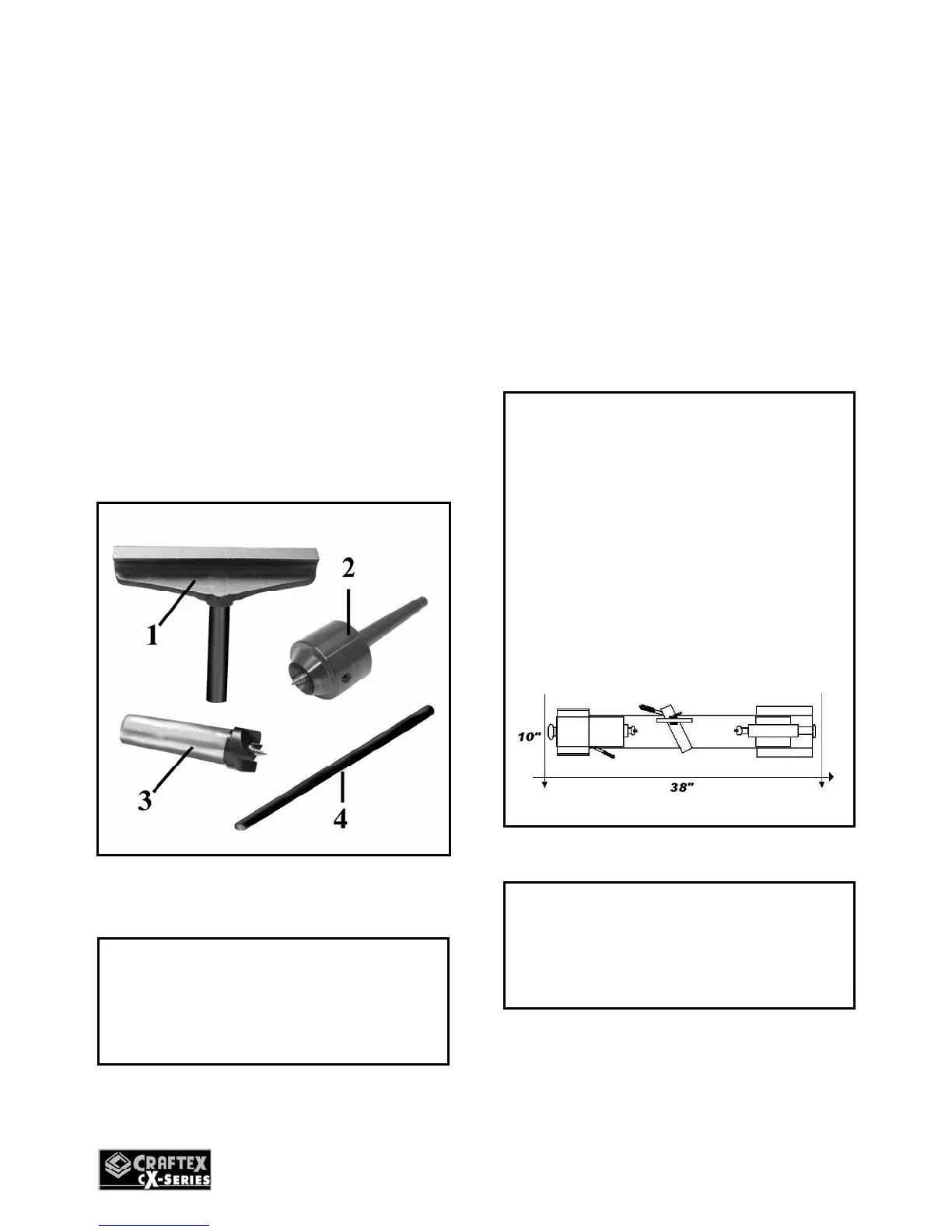

1. Tool Rest
2. Tailstock Center (Live Center) MT2
3. Headstock Center (Dead Center) MT2
4. Center Knock-Out Bar
Figure-1 Loose parts
SETUP
Before starting setting up the machine
you need to read and understand this
user manual completely. For the
protection of your eyes you need to have
safety glasses. The unpainted surfaces or
parts of the lathe are coated with rust
prevention waxy oil and you will want to
remove this before you begin assembly.
Use a solvent cleaner that will not
damage painted surfaces.
IMPORTANT
When setting up your machine, you will
want to find an ideal spot where your
machine will most likely be positioned
most of the time. Consider your
complete work environment as well as
working comfortable with the lathe
before placing your machine in the
ideal spot. The figure below shows
minimum workplace for the lathe.
WARNING
CX801 weighs approximately 105 lbs.
Do not over-exert yourself. Get the
help of an assistant for safe moving.
IMPORTANT
While doing inventory, if you can not
find any part, check if the part is
already installed on the machine.
