Craftex CX801 User Manual

9
BED EXTENSION (Optional)
The bed extension is available as an
optional component (MODEL#
CX801EXT). The bench top lathe has
been factory drilled with two holes at the
end of the bed for installing the bed
extension. See Figure-5

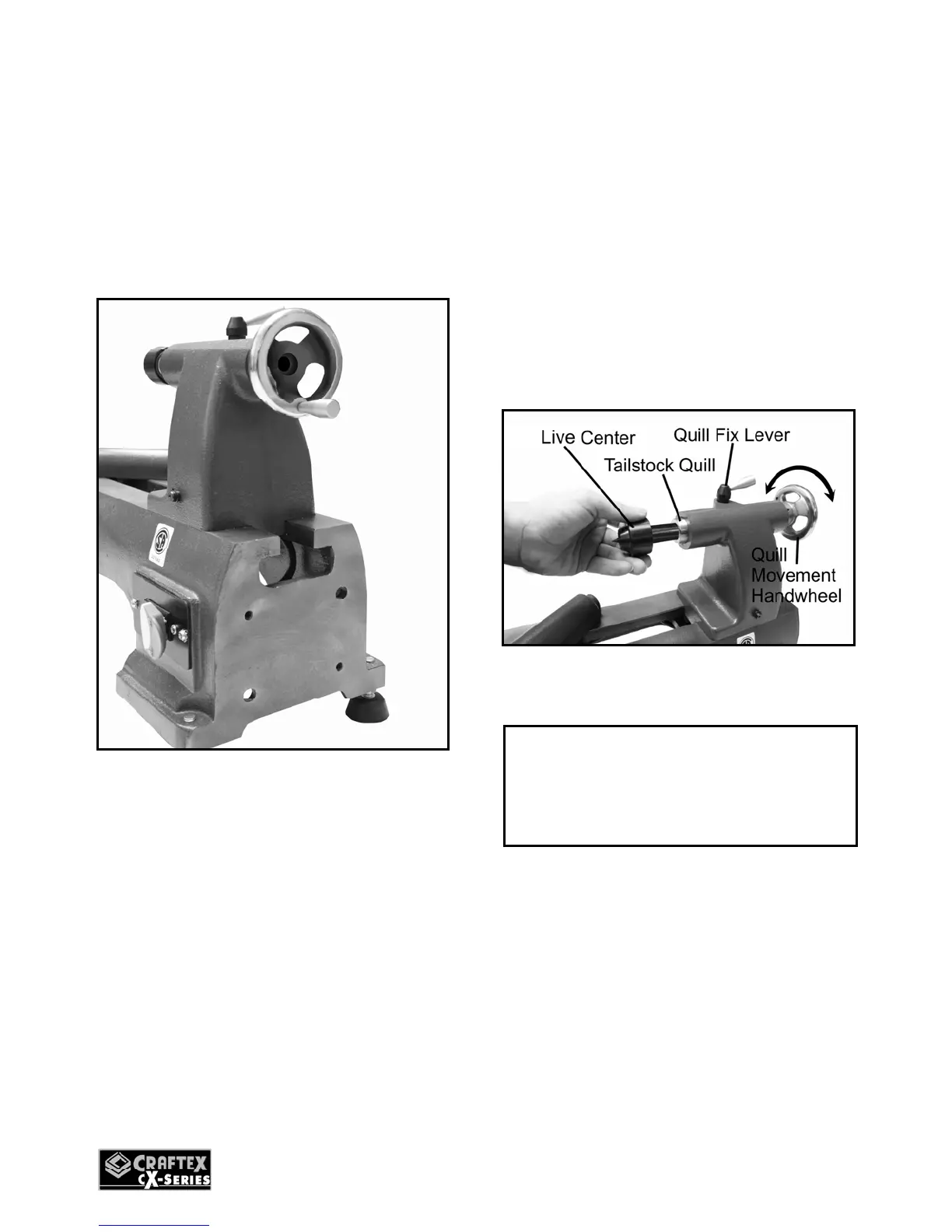

Figure-5 Bed Installing Extension Holes
To install the bed extension, align the two
holes on the bed extension with the two
holes on the bed end. Tighten the bed
extension with two M8 screws.
It is necessary to make leveling
adjustments between the lathe bed and
the bed extension by using a straight
edge guide.
INSTALLING / REMOVING
TAILSTOCK CENTER
Clean the tailstock center shank and the
tailstock quill and insert the center firmly
by hand into the tailstock quill.
To remove the tailstock center from the
tailstock quill, simply turn the quill
movement hand-wheel until the quill end
is nearly inside the tailstock. Then loosen
the quill fix lever and you can move the
quill in or out. See Figure-6.
Figure-6 Installing / Removing tailstock
WARNING
Disconnect the machine from the
power source before mounting and
removing headstock center.

Craftex CX801 Specifications

General

Brand	Craftex
Model	CX801
Category	Lathe
Language	English
