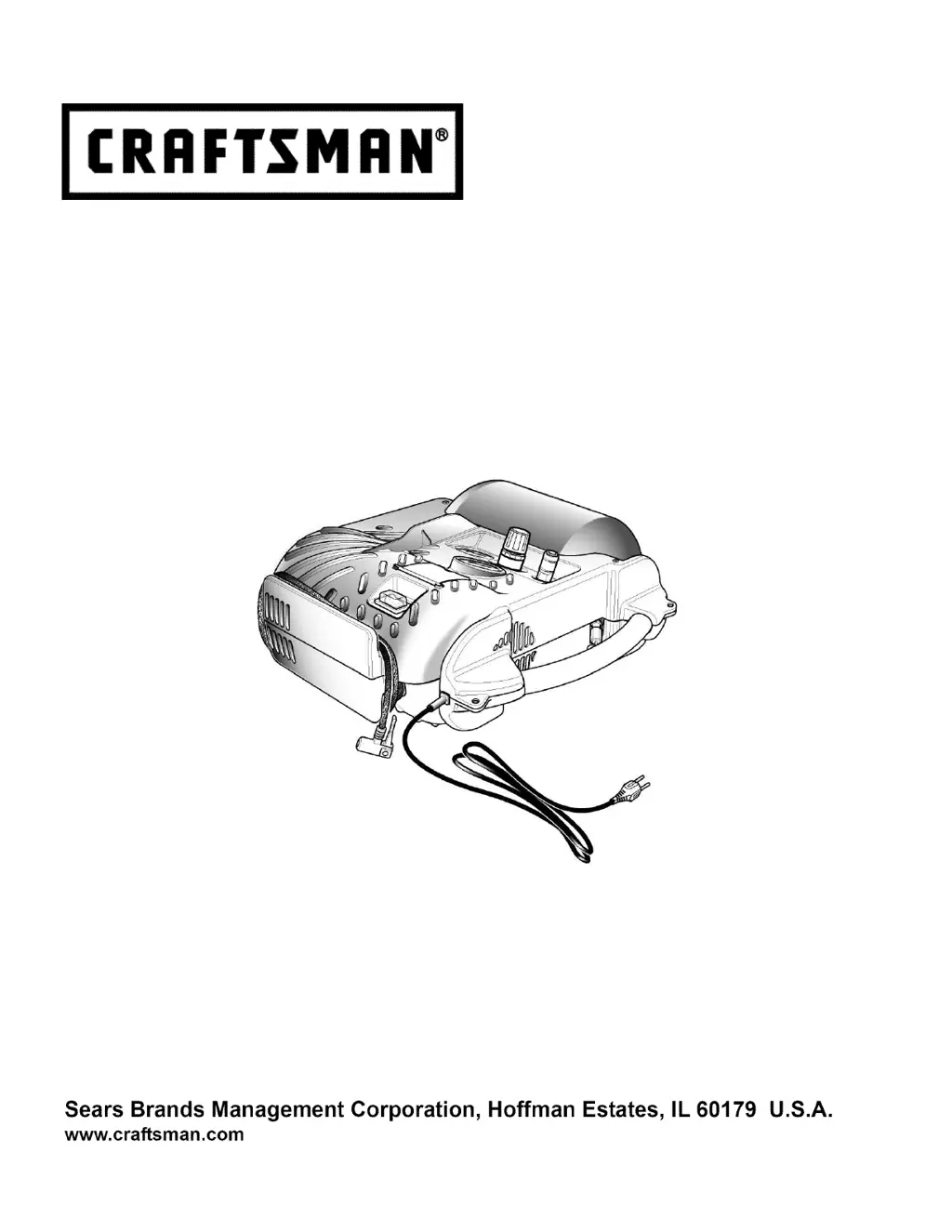

Owner’s Manual
Model No. 107.16574
1.2 Gallon Portable Air Compressor
6/13/2013
Part No. 9039584
CAUTION:
Before using this product,
read this manual and follow
all its Safety Rules and
Operating Instructions.
AIR COMPRESSOR
• Safety Instructions
• Assembly & Operation
• Maintenance
• Troubleshooting Guide
• Storage
• Parts List
• Español, p. 16

Table of Contents

Questions and Answers

  • A
    Amy FieldsAug 14, 2025
    Why does my Craftsman Air Compressor not run?
    • C
      carmengreenAug 14, 2025
      Your Craftsman Air Compressor might not be running due to several reasons: a loss of power or overheating (check extension cord), no electrical power or the power switch is off (ensure it's plugged in and switched on), a blown fuse (replace it), a tripped breaker (reset it), thermal overload (unplug and let cool), a bad pressure switch (replace it), or because the tank is full (it will restart when pressure drops).
  • V
    Vickie MillerAug 17, 2025
    What to do if my Craftsman 107.16574 keeps tripping the circuit breaker?
    • C
      Chelsea SimpsonAug 17, 2025
      If your Craftsman Air Compressor repeatedly trips the circuit breaker, it could be due to an incorrect fuse size or an overloaded circuit. Check that the fuse or breaker at the power supply is the correct size and type, using only time-delay fuses. Also, disconnect other electrical appliances from the circuit or operate the compressor on its own branch circuit. Another potential cause is incorrect wire gauge or extension cord length, so ensure you are using the correct ones. If these steps don't resolve the issue, the unloader or check valve may be defective, requiring service.
  • I
    Ian ReyesAug 20, 2025
    What to do if my Craftsman 107.16574 tank pressure drops after it shuts off?
    • Z
      zsilvaAug 21, 2025
      If the air receiver pressure drops after your Craftsman Air Compressor shuts off, check all connections (fittings, tubing, etc.) for leaks using soapy water; tighten any loose connections until the leak stops. Also, ensure the drain valve is tightened. If neither of these resolves the issue, the check valve may be leaking, requiring service.
  • E
    Emily MerrittAug 25, 2025
    How to fix air leaking from my Craftsman Air Compressor?
    • D
      Dennis ThompsonAug 25, 2025
      If air is leaking from your Craftsman Air Compressor, ensure hose connections are sealed with thread sealing tape and properly tightened. If the air hose is broken or damaged, replace it.
  • D
    Douglas PadillaAug 27, 2025
    What to do if my Craftsman 107.16574 Air Compressor runs continuously?
    • S
      Susan BrooksAug 27, 2025
      If your Craftsman Air Compressor runs continuously, check that the tank drain valve is closed. If it is closed, the pressure switch may be defective, requiring professional attention. Also consider whether usage is excessive, meaning the compressor isn't large enough for the tool's air requirements; decrease tool run-time in this case.
  • A
    Angela FrenchAug 30, 2025
    Why does my Craftsman 107.16574 thermal overload protector cut out repeatedly?
    • J
      Jesus FlynnAug 30, 2025
      If the thermal overload protector in your Craftsman Air Compressor cuts out repeatedly, it could be due to low voltage from the power supply (check with a voltmeter), a poorly ventilated room causing overheating (move to a well-ventilated area), or an incorrect wire gauge or extension cord length (check for proper specifications).
  • D
    Danielle FloresSep 3, 2025
    Why is my Craftsman 107.16574 motor humming but not running?
    • D
      Douglas JamesSep 3, 2025
      If your Craftsman Air Compressor motor hums but doesn't run, or runs slowly, the voltage from the power supply may be low, so check it with a voltmeter. Also, the gauge wire or the length of the extension cord could be wrong, so use the correct wire gauge and length. In some cases, the motor winding might be shorted or broken, or the unloader or check valve could be defective, both requiring a visit to a service center.
  • J
    Jeffrey HallSep 6, 2025
    How to reduce moisture in air discharge from my Craftsman Air Compressor?
    • J
      Jeffery MartinSep 6, 2025
      To reduce excessive moisture in the air discharge from your Craftsman Air Compressor, drain the tank to remove water. If humidity is high, move the compressor to an area of less humidity or use an air line filter.
  • T
    Tara AlvarezSep 9, 2025
    Why does my Craftsman 107.16574 Air Compressor vibrate?
    • D
      dparkerSep 9, 2025
      If your Craftsman Air Compressor vibrates, it may be because the mounting bolts are loose. Tighten the mounting bolts to reduce vibration.

Summary

Safety Symbols

General Safety Instructions

Essential safety guidelines for operation and handling of the air compressor.

General Safety Instructions

Work Area

Guidelines for maintaining a clean, well-lit, and safe operating environment.

Electrical Safety

Precautions related to power supply, cords, and grounding.

Personal Safety

Advice on protective gear, proper attire, and situational awareness.

Tool Use and Care

Recommendations for safe operation, maintenance, and tool handling.

Specific Safety Instructions

Read the operators manual

Importance of understanding the manual for safe operation and hazard avoidance.

Eye protection

Requirement for safety goggles or shields during operation to prevent eye injury.

Risk of Fire or Explosion

Precautions against flammable liquids, confined spaces, and sparks.

Risk of Bursting

Adherence to pressure limits for attachments and compressor to prevent failure.

Risk of Electrical Shock

Warnings regarding hazardous voltage, grounding, and avoiding wet conditions.

Hot Surface

Advice to avoid contact with hot components to prevent burns or damage.

Risk to Hearing

Necessity of wearing ear protection during tool use to prevent hearing loss.

Risk to Breathing

Guidance on air quality and respiratory protection during operation.

Drain Tank

Procedure for draining moisture from the air tank daily.

Service

Electrical Safety

Extension Cords

Guidelines for safe and proper use of extension cords with the compressor.

Electrical Connection

Requirements for connecting the compressor to a 120V, 60Hz AC power supply.

Speed and Wiring

Factors affecting motor performance related to wiring and voltage.

Grounding Instructions

Procedures for ensuring proper grounding to reduce electric shock risk.

Glossary

Assembly

Unpacking

Steps for safely removing the compressor from packaging and checking contents.

Operation

Know Your Air Compressor

Familiarization with operating features like motor, pump, and power switch.

Breaking in the Pump

Procedure for initial pump preparation before regular use.

Applications

Uses and capabilities of the air compressor for various air system tasks.

How to Use Your Air Compressor

Step-by-step guide for connecting tools and operating the air compressor.

Using the Inflation Hose with Thumb-Lock Connector

Specific instructions for using the inflation hose and thumb-lock connector.

Draining the Tank

Procedure for removing moisture from the air tank at the end of each day.

Checking the Safety Valve

Procedure to verify the proper function of the safety valve.

Maintenance

General Maintenance

Routine checks and cleaning procedures for the air compressor.

Lubrication

Information regarding bearing lubrication for the life of the unit.

Storage

End of Operation;Storage

Steps for safely shutting down and storing the air compressor.

Troubleshooting

Parts List

Craftsman 107.16574 Specifications

General IconGeneral
BrandCraftsman
Model107.16574
CategoryAir Compressor
LanguageEnglish
