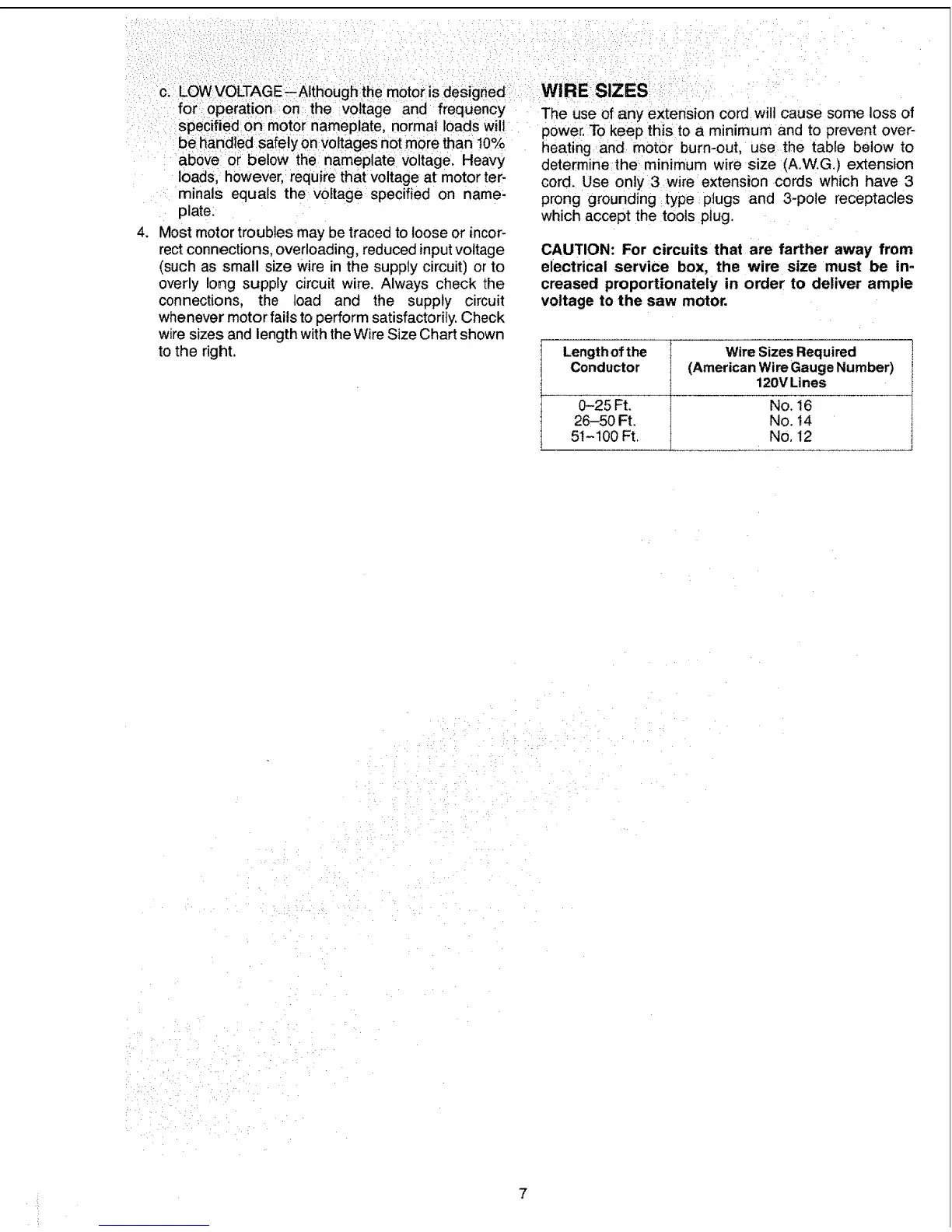

c. LOWVOLTAGE.Althoughthemotorisdesigned:: WIRE: SIZES
f0i'i operation:on the voltage and frequency The use of any extension cord wilt cause some loss of
specified:on motor nameplate, normal loads will power, To keep this to a minimum and to prevent over-
be handled safelyonvoltages notmore than 10% heating and motor burn-out, use the table below to
above or below the nameplate voltage. Heavy
loads, however, require that voltage at motor ter-
minals equals the voltage specified on name-
plate:
4. Most motor troubles may be traced to loose or incor-
rect connections, overloading, reduced input voltage
(such as small size wire in the supply circuit) or to
overly long supply circuit wire. Always check the
connections, the load and the supply circuit
whenever motor fails to perform satisfactorily. Check
wire sizes and length with the Wire Size Chart shown
to the right.
determine the minimum wire size (A.W.G,) extension
cord. Use only 3 wire extension cords which have 3
prong grounding type p_ugs and 3-pole receptacles
which accept the tools plug.
CAUTION: For circuits that are farther away from
electrical service box, the wire size must be in-
creased proportionately in order to deliver ample
voltage to the saw motor.
Length of the
Conductor
Wire Sizes Required
(American Wire Gauge Number)
120V Lines
0-25 Ft. No. 16
26.50 Ft. No. 14
51-100 Ft. No, 12
• i ¸¸¸ :.... • •
7
