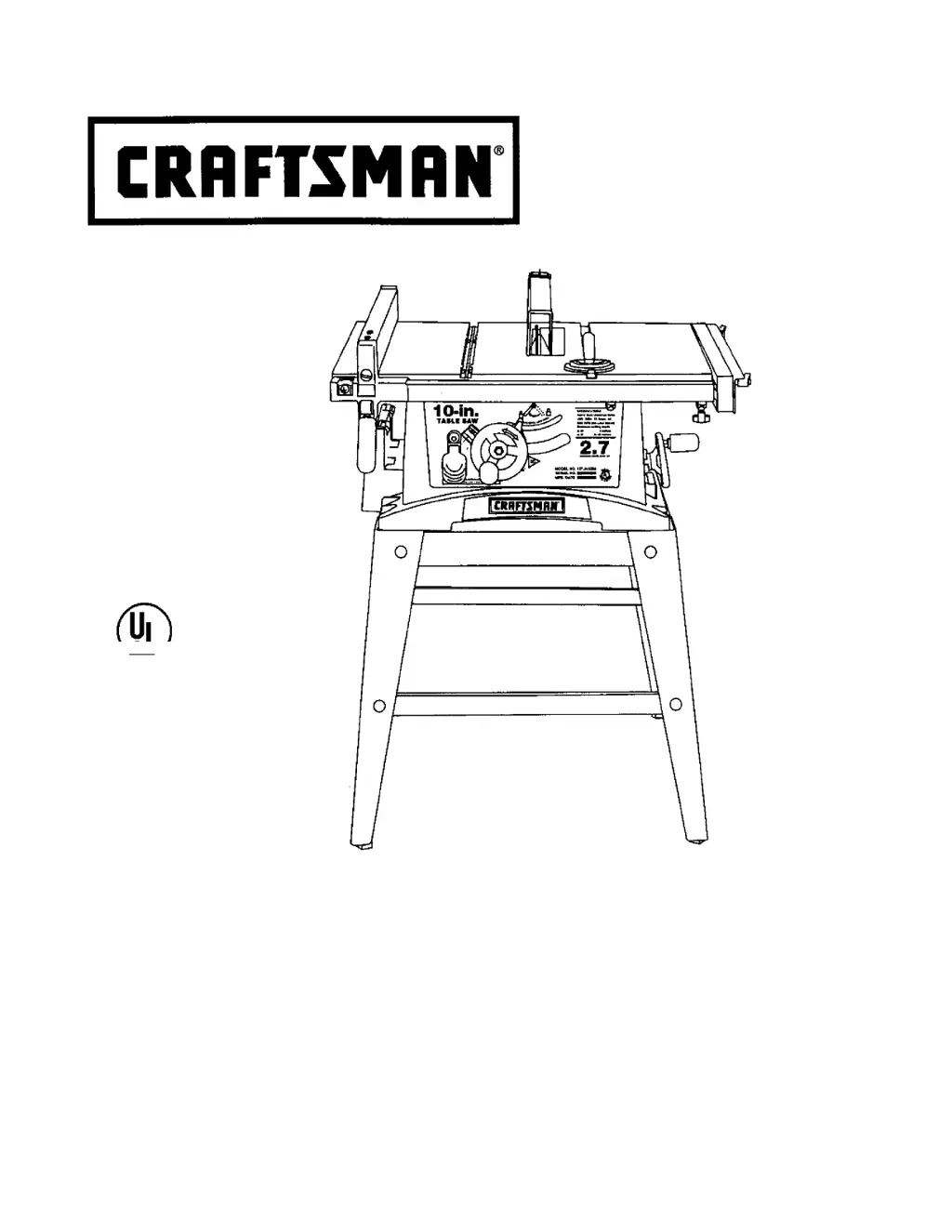

Owner’s Manual
2.7 HP (Maximum Developed)
10" Inch Blade
5000 R.P.M.
TABLE SAW
Model No.
137.218250
E82443
C Vfjy us
USED 37J2
CAUTION:
Before using this Table Saw,
read this manual and follow
all its Safety Rules and
Operating Instructions.
Safety Instructions
Installation
Operation
Maintenance
Parts List
Español
Customer Help Line
1
-
800
-
843-1682
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Part No. 137218250001

Table of Contents

Questions and Answers

  • J
    Jonathan RobinsonAug 15, 2025
    Why won't my Craftsman Saw start?
    • R
      Robin NelsonAug 15, 2025
      If your Craftsman Saw won't start, there are several potential causes: * The saw might not be plugged in, so ensure it is properly connected to a power source. * A fuse may be blown or a circuit breaker tripped; replace the fuse or reset the circuit breaker. * The cord could be damaged; in this case, have the cord replaced by a Sears Service Center.
  • N
    Natalie GarzaAug 18, 2025
    Why is material kicking back from the blade of my Craftsman Saw?
    • M
      Melissa EdwardsAug 19, 2025
      If material kicks back from the blade of your Craftsman Saw, consider the following possible causes and solutions: 1. The rip fence may be out of alignment; align it with the miter gauge slot. 2. The splitter might not be aligned with the blade; align the splitter with the blade. 3. You may be feeding stock without a rip fence; install and use the rip fence. 4. The splitter may not be in place; install and use the splitter (with guard). 5. The blade could be dull; replace the blade. 6. The operator might be letting go of the material before it is past the saw blade; push the material all the way past the saw blade before releasing work. 7. The miter angle lock knob might not be tight; tighten the knob.
  • J
    Jill HughesAug 21, 2025
    Why does my Craftsman 137.218250 make unsatisfactory cuts?
    • V
      victoria34Aug 21, 2025
      If your Craftsman Saw is making unsatisfactory cuts, here are a few things to check: * The blade may be dull, so replace it. * The blade might be mounted backwards, so turn it around. * There could be gum or pitch on the blade; remove the blade and clean it with turpentine and coarse steel wool. * You might be using the incorrect blade for the work; change the blade. * Gum or pitch on the table could be causing erratic feed; clean the table with turpentine and steel wool.
  • H
    hhaynesAug 25, 2025
    Why does my Craftsman 137.218250 Saw vibrate excessively?
    • Q
      qbrownAug 25, 2025
      If your Craftsman Saw vibrates excessively, consider these possible causes: * The saw may not be mounted securely to the workbench; tighten all mounting hardware. * The bench could be on an uneven floor; reposition it on a flat, level surface and fasten it to the floor if necessary. * The saw blade might be damaged; replace the blade.
  • C
    Christopher FrenchAug 27, 2025
    Why doesn't the blade on my Craftsman Saw come up to speed?
    • C
      Cody MooreAug 27, 2025
      If the blade on your Craftsman Saw does not come up to speed, it could be due to the following: * The extension cord may be too light or too long; replace it with an adequate size cord. * There might be low house voltage; contact your electric company.
  • K
    Kim JohnsonAug 30, 2025
    What to do if material pinches the blade when ripping with a Craftsman 137.218250 Saw?
    • T
      Tina DavisAug 31, 2025
      If the material pinches the blade when ripping with your Craftsman Saw, it could be because: * The rip fence is not aligned with the blade; check and adjust the rip fence. * The wood is warped, and the edge against the fence is not straight; select another piece of wood.
  • A
    andrew21Sep 3, 2025
    Why doesn't my Craftsman 137.218250 Saw make accurate 45° and 90° rip cuts?
    • D
      Dawn AllenSep 3, 2025
      If your Craftsman Saw does not make accurate 45° and 90° rip cuts, it could be due to: * The positive stop not being adjusted correctly; check the blade with a square and adjust the positive stop. * The blade tilt pointer not being set accurately; check the blade with a square and adjust the pointer to zero.
  • K
    Kristen YangSep 5, 2025
    What to do if material binds on the splitter of my Craftsman Saw?
    • B
      Brian BlairSep 5, 2025
      If the material binds on the splitter of your Craftsman Saw, the splitter might not be aligned correctly with the blade. Check and align the splitter with the blade.
  • X
    xandersonSep 8, 2025
    Why doesn't the blade on my Craftsman Saw raise or tilt freely?
    • M
      monicaharrisSep 8, 2025
      If the blade on your Craftsman Saw does not raise or tilt freely, it is probably due to sawdust and dirt in the raising and tilting mechanisms. Brush or blow out any loose dust and dirt.
  • B
    Brian WhiteSep 12, 2025
    Why doesn't my Craftsman 137.218250 make accurate 45° and 90° cross cuts?
    • D
      Deanna HallSep 12, 2025
      If your Craftsman Saw does not make accurate 45° and 90° cross cuts, the miter gauge might be out of adjustment. Adjust the miter gauge.

Summary

WARRANTY

FULL ONE YEAR WARRANTY

Details warranty coverage for defects and commercial/rental use.

PRODUCT SPECIFICATIONS

MOTOR

Lists motor specifications like HP, Type, Amps, Voltage, Hz, RPM, and Overload Protection.

SAW

Lists saw specifications like table size, extension capacity, blade size, rip scale, and cut depths.

GENERAL SAFETY INSTRUCTIONS

BEFORE USING THE TABLE SAW

Emphasizes reading the manual and understanding hazards before operation.

SPECIFIC SAFETY INSTRUCTIONS FOR THE TABLE SAW

ELECTRICAL REQUIREMENTS

POWER SUPPLY AND MOTOR SPECIFICATIONS

Details power requirements and motor specifications for safe operation.

GROUNDING INSTRUCTIONS

GUIDELINES FOR EXTENSION CORDS

Provides guidelines for selecting and using extension cords for safe operation.

ACCESSORIES AND ATTACHMENTS

RECOMMENDED ACCESSORIES

Advises visiting Sears Hardware or catalog for recommended accessories.

CARTON CONTENTS

UNPACKING AND CHECKING CONTENTS

Instructions for unpacking and verifying all parts against the list before assembly.

TOOLS NEEDED FOR ASSEMBLY

KNOW YOUR TABLE SAW

ASSEMBLY AND ADJUSTMENTS

ASSEMBLY INSTRUCTIONS

Provides step-by-step instructions for assembling the leg set and attaching it to the saw.

SAW TO LEG SET (FIG. B)

Details how to attach the assembled leg set to the saw base.

SAW MOUNTED TO OTHER WORK SURFACES (FIG. C)

KEEPING THE AREA CLEAN (FIG. D)

BLADE RAISING HANDWHEEL (FIG. E, F)

BLADE TILTING HANDWHEEL (FIG. F)

RIP FENCE (FIG. G)

CHANGING THE BLADE (FIG. H, I, J)

BLADE GUARD ASSEMBLY (FIG. K, L, M)

ADJUSTMENT INSTRUCTIONS

ADJUSTING THE TABLE EXTENSION (FIG. O)

Instructions for adjusting the table extension for added support.

RIP FENCE ADJUSTMENT (FIG. Q)

RIP FENCE INDICATOR ADJUSTMENT (FIG. Q)

MITER GAUGE ADJUSTMENT (FIG. P)

ADJUSTING THE 90° AND 45° POSITIVE STOPS (FIG. R, S)

BLADE TILT POINTER

BLADE PARALLEL TO MITER GAUGE GROOVE (FIG.T,U)

BASIC SAW OPERATIONS

RAISING THE BLADE (FIG.V)

Explains how to raise or lower the saw blade using the handwheel.

TILTING THE BLADE (FIG. V)

Details the process for tilting the blade for bevel cuts.

ON; OFF SWITCH (FIG. W)

Describes the operation and safety features of the ON/OFF switch with a removable key.

OVERLOAD PROTECTION (FIG. W)

USING THE TABLE EXTENSION (FIG. X)

CUTTING OPERATIONS

RIPPING (FIG.Y,Z)

Instructions for cutting along the length of the workpiece using the rip fence.

BEVEL RIPPING

RIPPING SMALL PIECES

CROSSCUTTING (FIG. AA)

BEVEL CROSSCUTTING (FIG. BB)

COMPOUND MITER CROSSCUTTING (FIG. CC)

MITERING (FIG. DD)

DADO CUTS (FIG. FF)

USING WOOD FACING ON THE RIP FENCE (FIG. EE)

MAINTENANCE

GENERAL MAINTENANCE

Covers cleaning the saw cabinet, table, and blades, and cord inspection.

LUBRICATION

Details lubrication points for mechanical parts using dry lubricants like graphite or silicone.

BLADE RAISING AND TILTING MECHANISM (FIG. GG)

TROUBLESHOOTING

TROUBLESHOOTING GUIDE

A guide to diagnose and correct common problems encountered with the table saw.

Craftsman 137.218250 Specifications

General IconGeneral
Model Number137.218250
TypeTable Saw
Arbor Size5/8 inches
Max RPM5000 RPM
Voltage120V
Cord Length6 feet
Motor Amps15 Amps
