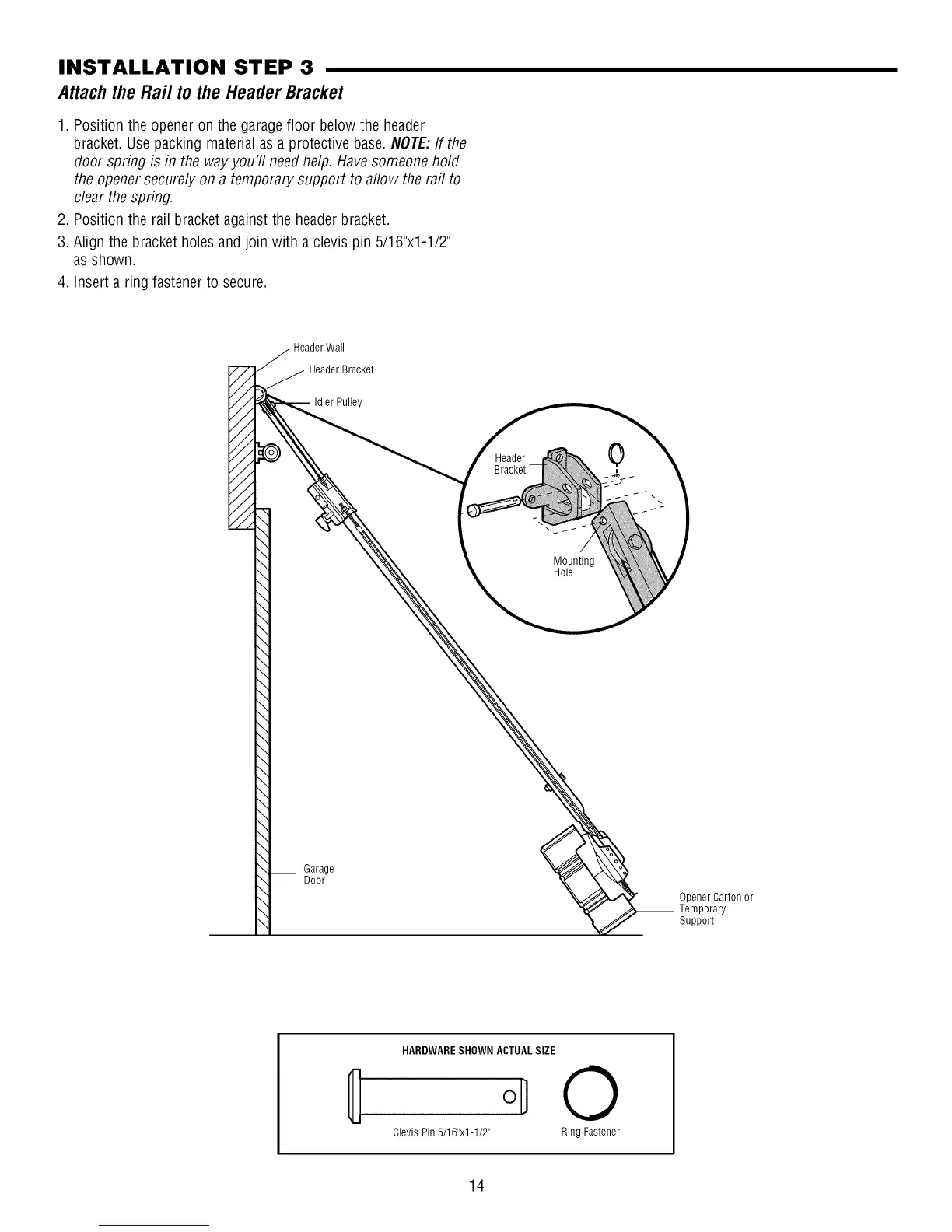

INSTALLATION STEP 3
AttachtheRail to the HeaderBracket
1. Position the opener on the garagefloor below the header
bracket. Usepacking material asa protective base. NOTE:If the
door spring is in the wayyou'll needhelp. Havesomeone hold
theopener securely on a temporary support to allow the raft to
clearthe spring.
2. Position the rail bracket againstthe headerbracket.
3. Align the bracket holes and join with a clevis pin 5/16"x1-1/2"
as shown.
4. Inserta ring fastenerto secure.
HeaderWall
HeaderBracket
Idler Pulley
Header
Bracket
Mounting
Hole
0
i
\
__ Garage
Door
Opener Carton or
__ Temporary
Support
HARDWARESHOWNACTUALSIZE
o]
Clevis Pin 5/16"x1-1/2"
0
Ring Fastener
14
