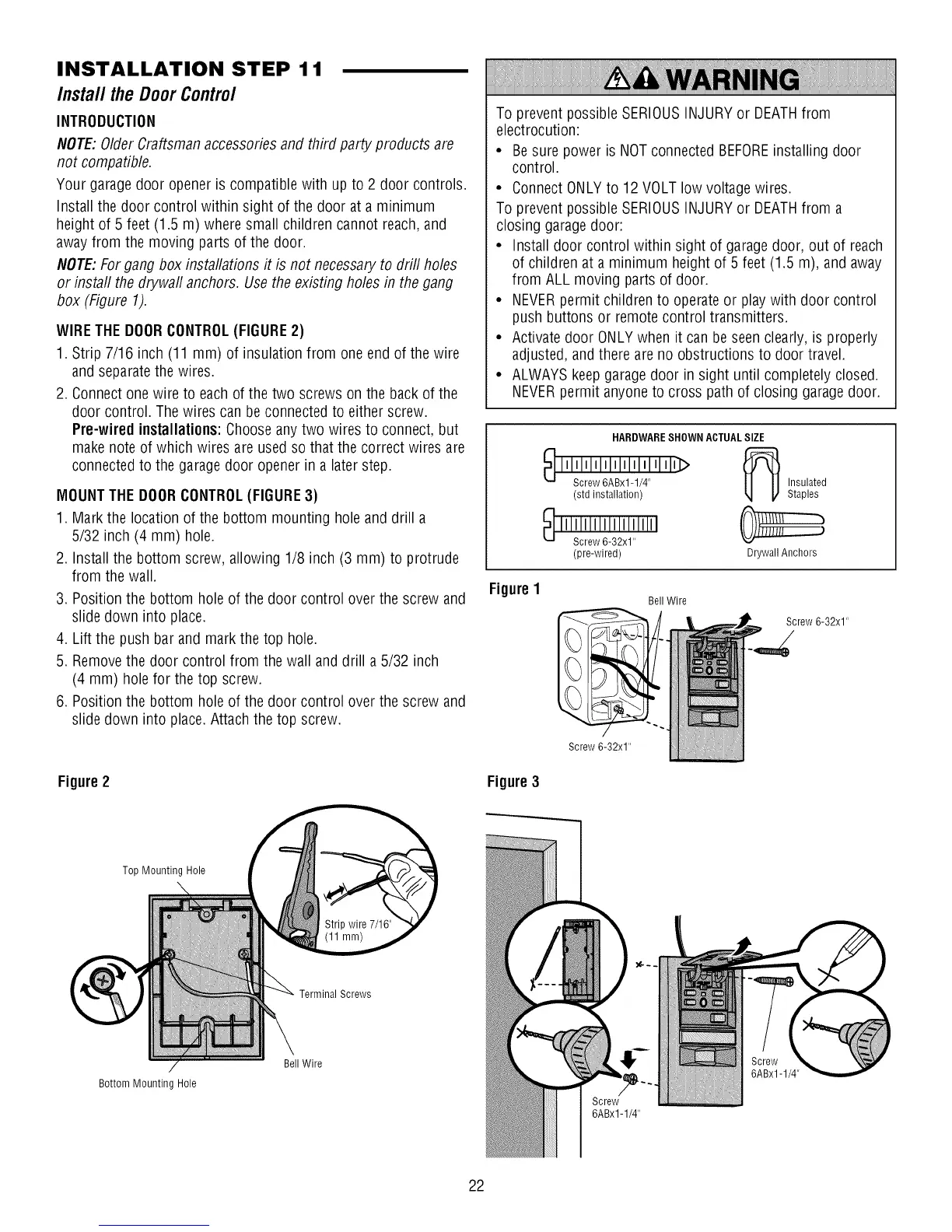

INSTALLATION STEP 11
Install theDoorControl
INTRODUCTION
NOTE:OlderCraftsmanaccessoriesand third party products are
not compatible.
Your garagedoor opener is compatible with up to 2 door controls.
Install the door control within sight of the door at a minimum
height of 5 feet (1.5 m) where small children cannot reach,and
away from the moving parts of the door.
NOTE:Forgang box installations it is not necessaryto drill holes
or instafl the drywafl anchors. Usethe existing holes in the gang
box (Figure 1).
WIRETHE DOORCONTROL(FIGURE2)
1. Strip 7/16 inch (11 mm) of insulation from one end of the wire
and separatethe wires.
2. Connectone wire to each of the two screws on the back of the
door control. The wires can be connectedto either screw.
Pre-wired installations:Chooseanytwo wires to connect, but
make note of which wires are used so that the correct wires are
connectedto the garagedoor opener in a laterstep.
MOUNTTHEDOORCONTROL(FIGURE3)
1. Mark the location of the bottom mounting hole and drill a
5/32 inch (4 mm) hole.
2. Installthe bottom screw, allowing 1/8 inch (3 mm) to protrude
from the wall.
3. Position the bottom hole of the door control over the screw and
slide down into place.
4. Lift the push bar and mark the top hole.
5. Removethe door control from the wall and drill a 5/32 inch
(4 mm) hole for the top screw.
6. Position the bottom hole of the door control over the screw and
slide down into place. Attachthe top screw.
Figure2
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• Be sure power is NOTconnected BEFOREinstalling door
control.
• ConnectONLYto 12 VOLT low voltage wires.
To prevent possible SERIOUSINJURYor DEATHfrom a
closing garagedoor:
• Install door control within sight of garage door, out of reach
of children at a minimum height of 5 feet (1.5 m), and away
from ALL moving parts of door.
• NEVERpermit children to operate or playwith door control
push buttons or remote control transmitters.
• Activate door ONLYwhen it can be seenclearly, is properly
adjusted,and there are no obstructions to door travel.
• ALWAYSkeepgarage door in sight until completely closed.
NEVERpermit anyone to cross path of closing garage door.
HARDWARESHOWNACTUALSIZE
(std installation)
(pre-wired)
Insulated
Staples
Drywall Anchors
Figure1
Bell Wire
Screw 6-32x1"
Screw 6-32x1"
Figure3
Top Mounting Hole
Bottom Mounting Hole
TerminalScrews
Bell Wire
Screw
6ABx1-1/4"
6ABx1-1/4"
22
