NOTE"Allreferencestothe[eftorright sideof thesnowthrowerarefromthe
operator'sposition.Anyexceptionswi[[benoted.

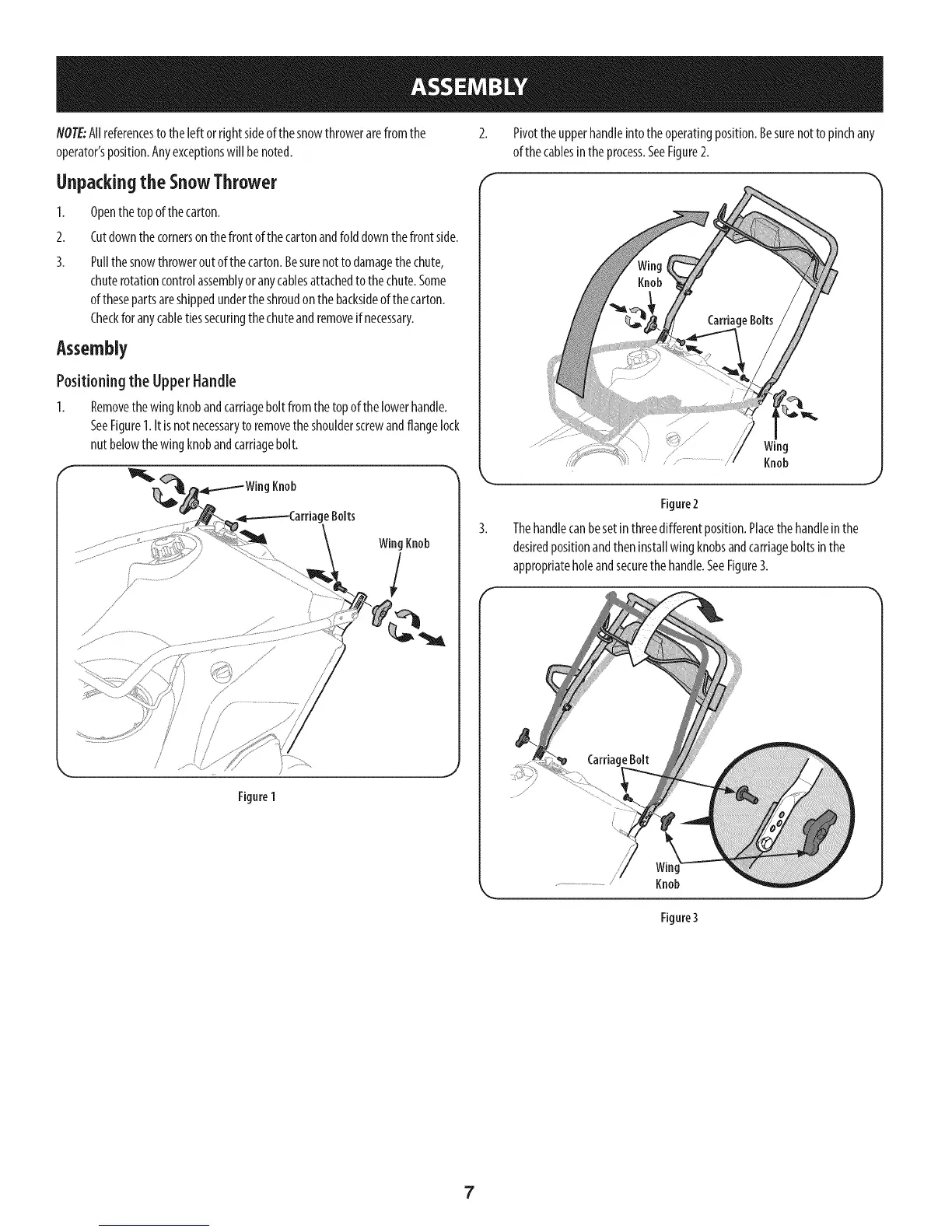

Unpacking the SnowThrower
1.
2.
3.
Openthetopofthecarton.
Cutdownthecornersonthefrontof thecartonandfolddownthefrontside.
Pullthesnowthroweroutof thecarton.Besurenotto damagethechute,
chuterotationcontrolassemblyoranycablesattachedtothechute.Some
ofthesepartsareshippedundertheshroudonthebacksideof thecarton.
Checkfor anycabletiessecuringthechuteandremoveifnecessary.
Assembly
Positioningthe UpperHandle
I. Removethewing knobandcarriageboltfromthetopof thelowerhandle.
SeeFigureI. It isnotnecessaryto removetheshoulderscrewandflangelock
nutbelowthewing knobandcarriagebolt.
Knob
ge Bolts
/
Figure1
Pivottheupperhandleintotheoperatingposition.Besurenotto pinchany
ofthecablesinthe process.SeeFigure2.
Wing
" ................. Knob
J
Figure2
Thehandlecanbesetinthreedifferentposition.Placethe handleinthe
desiredpositionandtheninstallwing knobsandcarriageboltsinthe
appropriateholeandsecurethehandle.SeeFigure3.
Knob
Figure3
7
