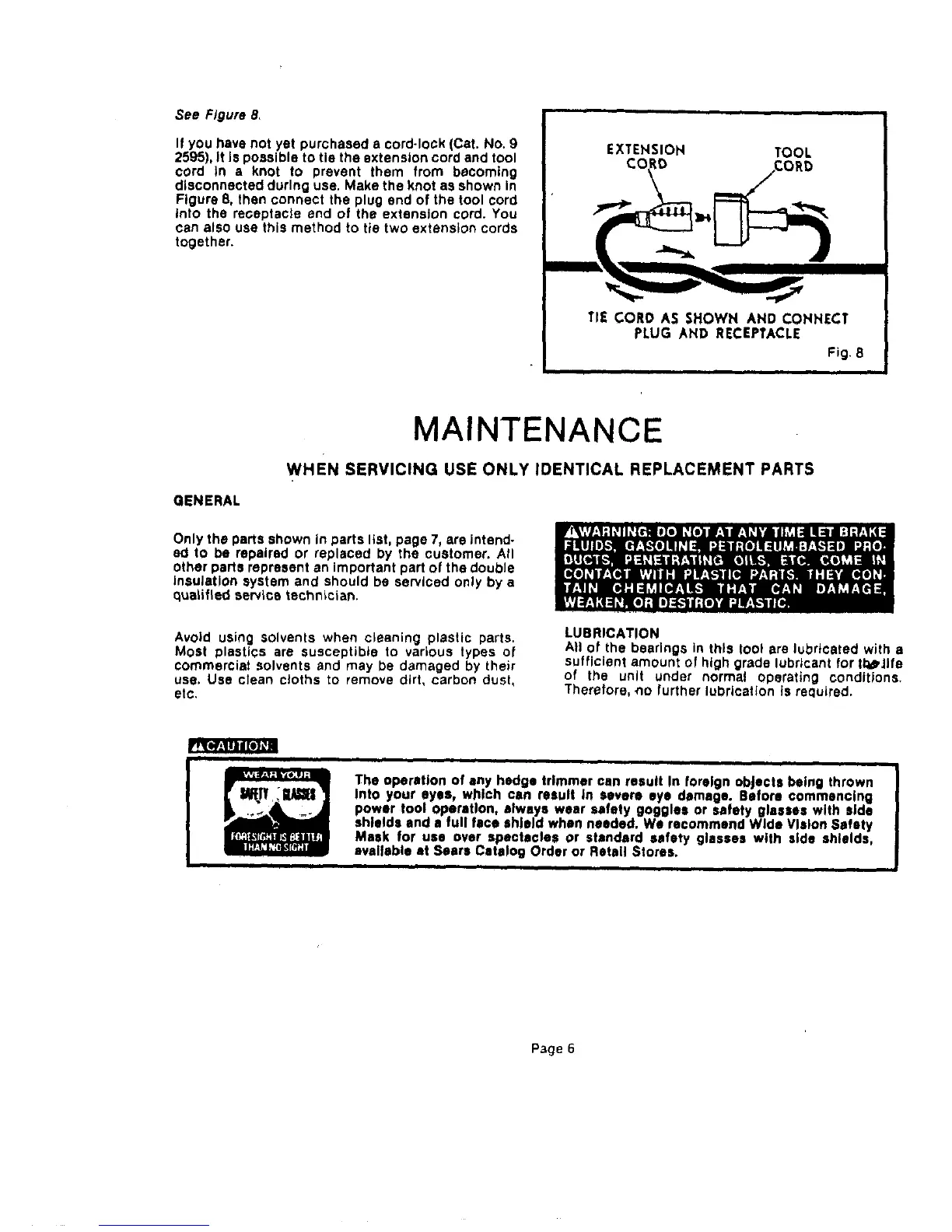

See Figure 8.
If you have not yet purchased a cord-lock (Cat. No. 9
2595), it I$ possible to tie the extension cord and tool
cord tn a knot to prevent them from becoming
disconnected during use, Make the knot as shown in
Figure 8, then connect the plug end of the tool cord
into the receptacle and of the extension cord. You
can also use this method to tie two extension cords
together.
EXTEHSION TOOL
CO ',D
TIE CORD AS SHOWN AND CONNECT
PLUG AND RECEPTACLE
Fig, 8
GENERAL
MAINTENANCE
WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS
Only the parts shown in parts list, page 7, are intend-
ed to be repaired or replaced by the customer. All
other parts represent an important part of the double
insulation system and should be serviced only by a
qualified service technician.
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to various types of
commerciat solvents and may be damaged by their
usa. Use clean cloths to remove dirt, carbon dust,
etc.
LUBRICATION
All of the bearings in this tool are lubricated with a
sufficient amount of high grade lubricant for tl;_Jlfe
of the unit under normal operating conditions.
Therefore, .no further lubrication is required,
The operation of any hedge trimmer can result In foreign objects being thrown
Into your eyes, which can result in severe eye damage. Before commencing
power loci operation, always wear safety goggles or safety glasses with side
shields and a full face shield when needed, We recommend Wide Vision Safety
Mask for use over spectacles or standard safety glasses with side shields,
available at Sears Catalog Order or Retail Stores,
Pa_ge6
