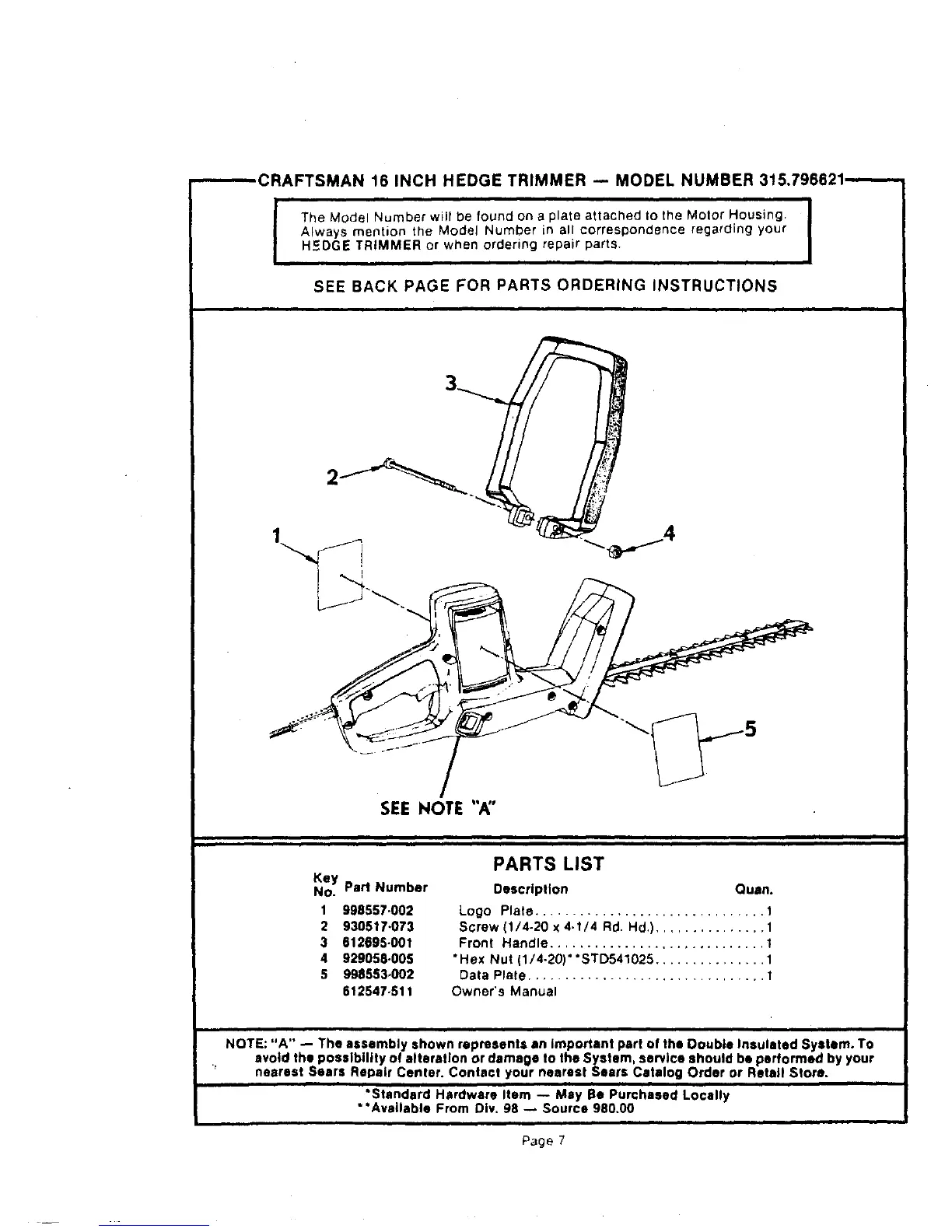

--_'---CRAFTSMAN 16 INCH HEDGE TRIMMER -- MODEL NUMBER 315.796621-_--.-
I
I
The Model Number will be found on a plate attached Io the Motor Housing. I
Always mention the Model Number in all correspondence regarding your
I
H_DGE TRIMMER or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
4
SEE NOTE "A"
Kay
No. Part Number
1 998557.002
2 930517,073
3 612695-001
4 929058-005
5 998553,002
612547-511
i
PARTS LIST
Description Quan.
Logo Plate ............................... 1
Screw (1/4-20 x 4.1/4 Rd. Hd,) ............... 1
Front Handle ............................. 1
"Hex Nut (1/4-20)" "STD541025 ............... 1
Data Plate ................................ I
Owner's Manual
i i
NOTE: "A" -- The assembly shown represents an important part of the Double Insulated System. To
avoid the possibility of alteration or damage to the System, service should be performed by your
nearest Sears Repair Center. Contact your nearest sears Catalog Order or Retail Store.
"Standard Hardware Item _ May Be Purchased Locally
"'Available From DIv. 98 _ Source 980,00
