Craftsman 486.242221 - Attaching Sweeper Hitch to Tractor; Hitch Attachment Group A (8-10 Clearance); Hitch Attachment Group B (10-13 Clearance)

11

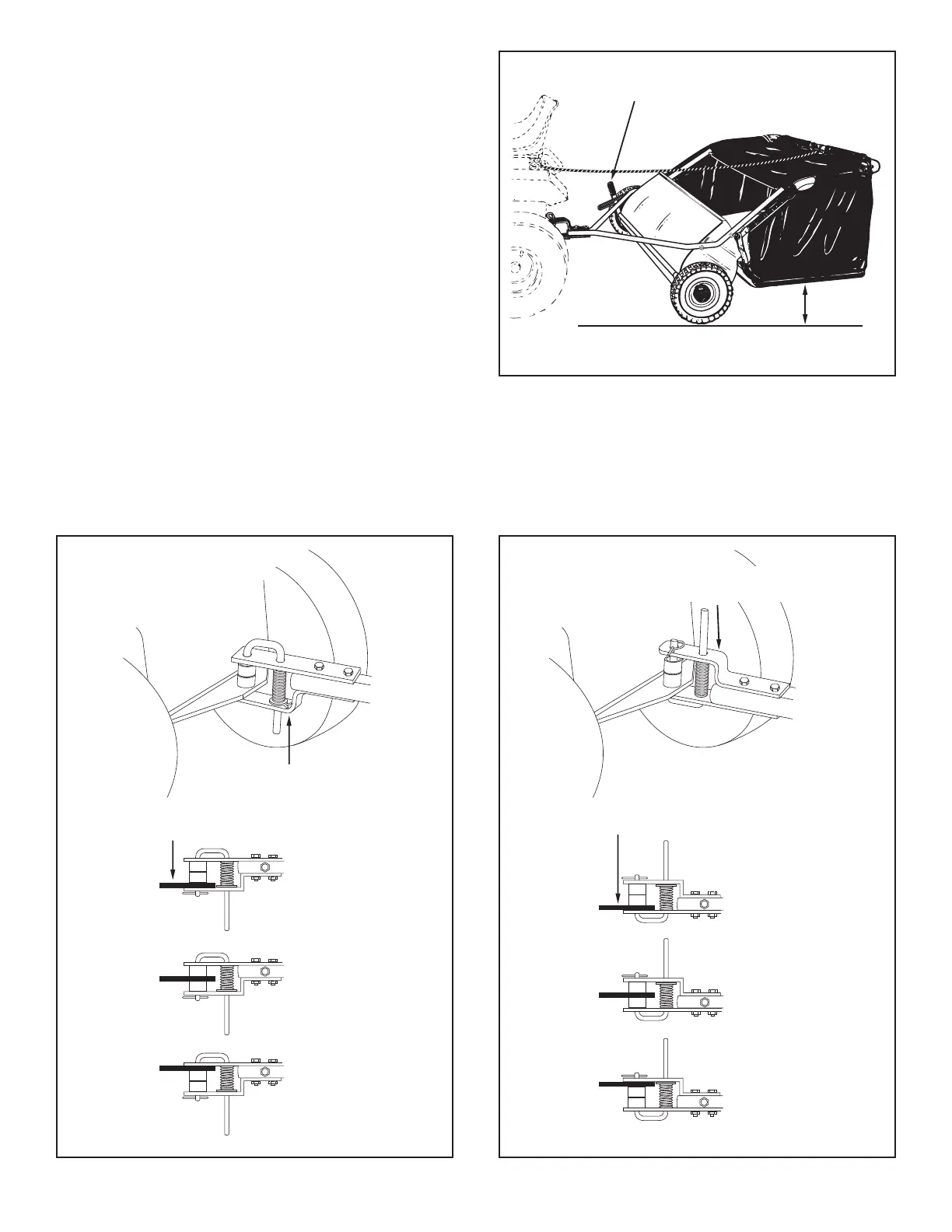

ATTACHING SWEEPER HITCH TO TRACTOR
BLACK LINE IS TRACTOR HITCH
HITCH BRACKET MOUNTED
BELOW HITCH TUBES
BLACK LINE IS TRACTOR HITCH
HITCH BRACKET MOUNTED
ABOVE HITCH TUBES
FIGURE 23
• Placethetractorandsweeperonaatlevelsurface.
• Setthesweeperheightadjustmenthandletoaboutthe
middleofitsadjustmentrange.
• Attachthesweeperhitchtothetractorhitch,arranging
the3/4"spacersinoneofsixpossiblecombinationsas
showninGROUPAandGROUPBdiagramsbelow.
IMPORTANT:Toobtainthebestperformancefromyour
sweeper,arrangethespacerssothatthesweeperbagis
approximatelylevelwiththegroundandapproximately5"
to7"offthegroundasshowningure23.
GROUP "B" - For vehicles with hitches
having 10" to 13" ground clearance.
GROUP "A" - For vehicles with hitches
having 8" to 10" ground clearance.
APPROXIMATELY LEVEL
(5" to 7" FROM SURFACE)
BRUSH HEIGHT ADJUSTED
APPROXIMATELY MID-WAY
