Craftsman 486.242221 - Full Size Hardware Chart

4
REF qTY DESCRIPTION
A 2 HexBolt,5/16-18x3"Lg.
B 3 HexBolt,5/16-18x2-1/4"Lg.
C 3 HexBolt,5/16-18x1-3/4"Lg.
D 4 HexBolt,1/4-20x1"
E 1 CarriageBolt,5/16-18x1"Lg.
F 4 CarriageBolt,5/16-18x3/4"Lg.
G 4 CurvedHeadBolt,1/4-20x1"
H 8 NylockNut,1/4"
I 12 NylockNut,5/16"
J 1 Washer,ToothLock5/16"
K 2 FlatWasher,5/16"Standard
L 2 HitchSpacer,3/4"

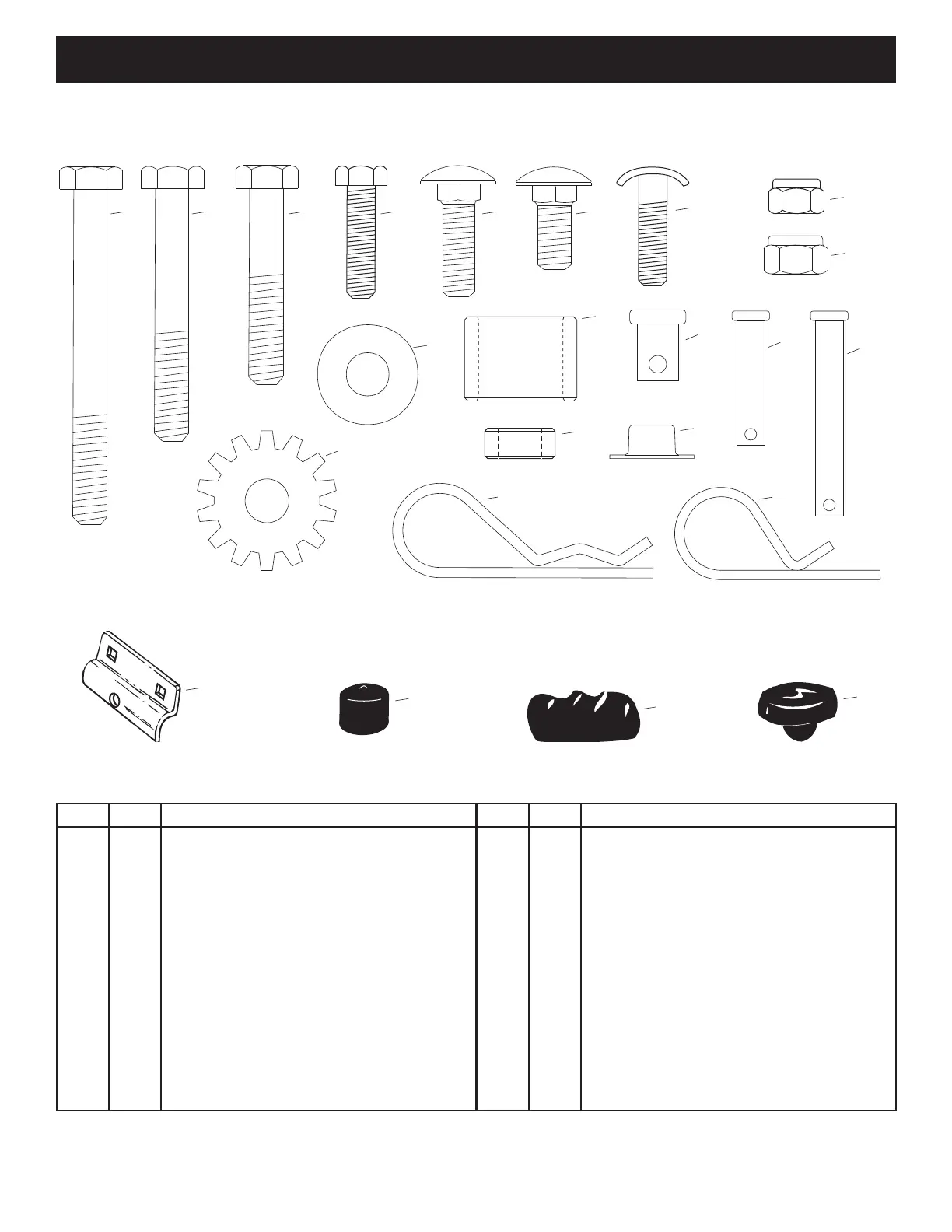

HARDWARE PACKAGE CONTENTS
A B C ED F
I
S
R
K
T
U
V
W
J
P
L
M
SHOWN FULL SIZE
NOT SHOWN FULL SIZE
O
N
H
G
Q
REF qTY DESCRIPTION
M 1 Spacer Bushing
N 2 ClevisPin,3/8"x1/2"
O 4 ClevisPin,1/4"x1-1/8"
P 2 ClevisPin,1/4"x1-3/4"
Q 2 Palnut,3/8"
R 1 HairpinCotter,1/8"
S 8 HairpinCotter,3/32"
T 4 HopperClamp
U 2 VinylCap
V 1 Grip
W 1 PlasticKnob
