Craftsman 82003 - Capacitance Measurements; Frequency and Duty Cycle Measurements

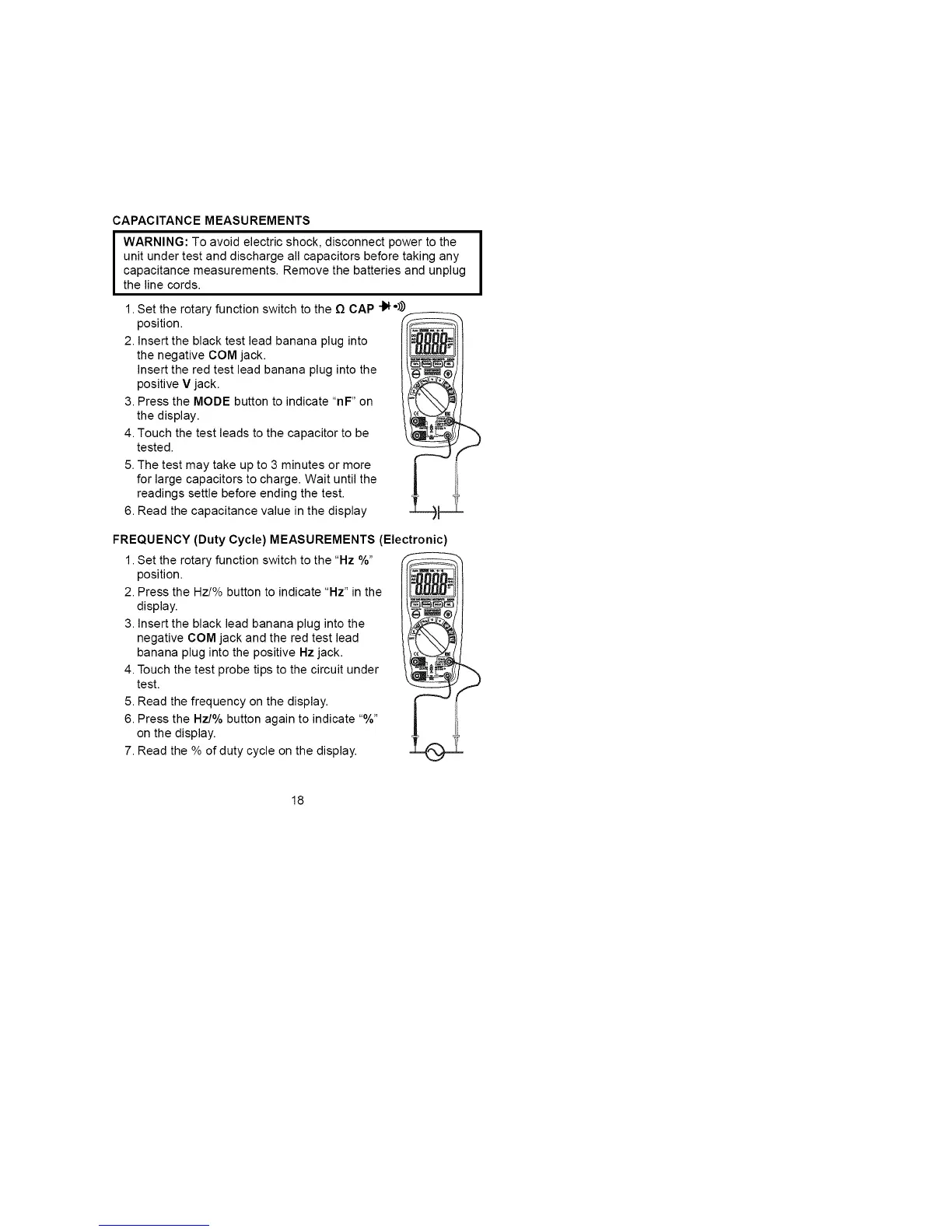

CAPACITANCE MEASUREMENTS
WARNING: To avoid electric shock, disconnect power to the
unit under test and discharge all capacitors before taking any
capacitance measurements. Remove the batteries and unplug
the line cords.
1. Set the rotary function switch to the Q CAP -I_°)))
position.
2. Insert the black test lead banana plug into
the negative COM jack.
Insert the red test lead banana plug into the
positive V jack.
3. Press the MODE button to indicate "nF" on
the display.
4. Touch the test leads to the capacitor to be
tested.
5. The test may take up to 3 minutes or more
for large capacitors to charge. Wait until the
readings settle before ending the test.
6. Read the capacitance value in the display
4. Touch the test probe tips to the circuit under
test.
5. Read the frequency on the display.
6. Press the Hz/% button again to indicate "%"
on the display.
7. Read the % of duty cycle on the display.
FREQUENCY (Duty Cycle) MEASUREMENTS (Electronic)
1. Set the rotary function switch to the "Hz %"
position.
2. Press the Hz/% button to indicate "Hz" in the
display.
3. Insert the black lead banana plug into the
negative COM jack and the red test lead
banana plug into the positive Hz jack.
18
