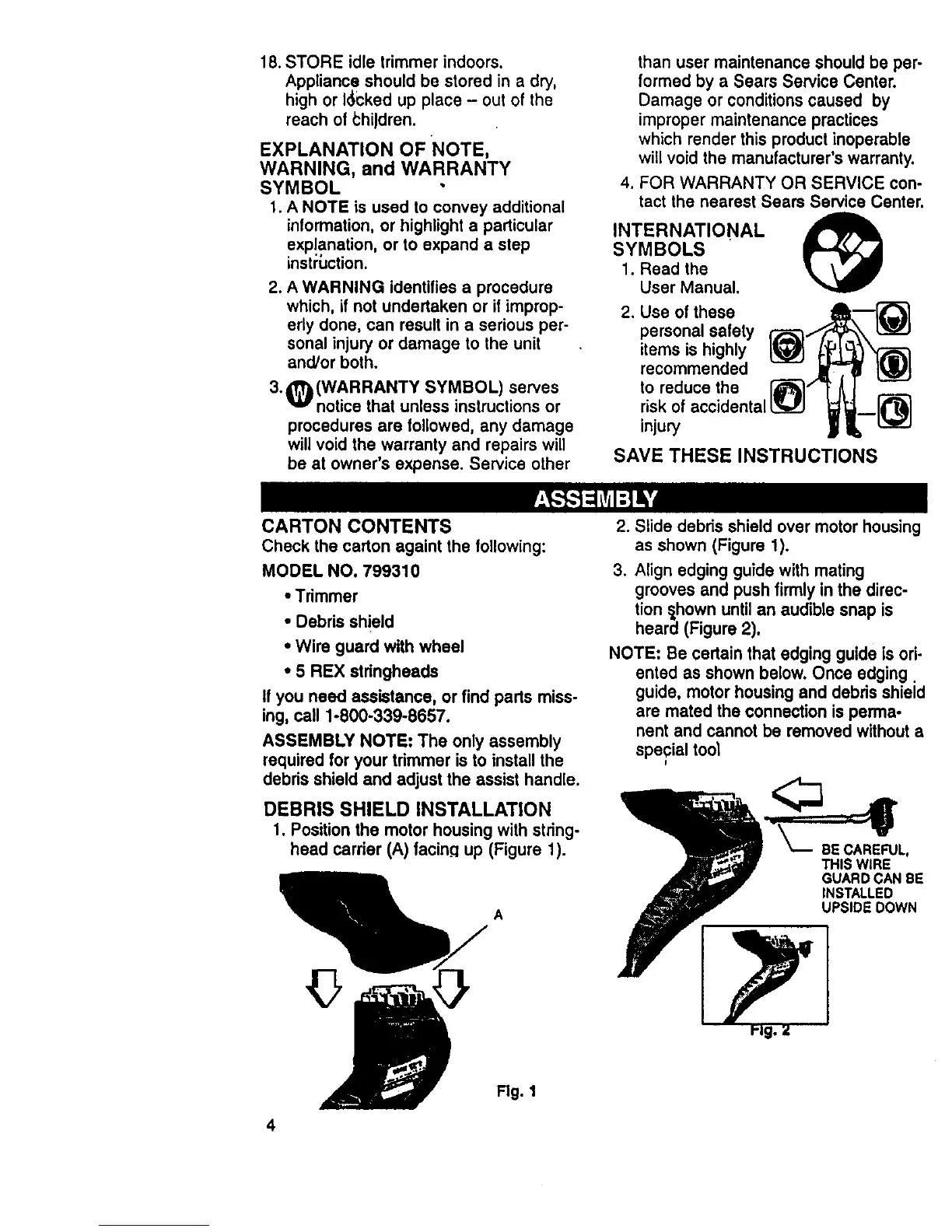

18. STORE idle trimmer indoors.
Appliance should be stored in a dry,
high or IScked up place - out of the
reach of _hildren.
EXPLANATION OF NOTE,
WARNING, and WARRANTY
SYMBOL
1. A NOTE is used to convey additional
information, or highlight a particular
explanation, or to expand a step
inst=:_ction.
2. A WARNING identifies a procedure
which, if not undertaken or if improp-
erly done, can result in a serious per-
sonal injury or damage to the unit
and/or both.
3._)(WARRANTY SYMBOL) serves
noticethat unless instructions or
procedures are followed, any damage
will void the warranty and repairs will
be at owner's expense. Service other
than user maintenance should be per-
formed by a Sears Service Center.
Damage or conditions caused by
improper maintenance practices
which render this product inoperable
will void the manufacturer's warranty.
4. FOR WARRANTY OR SERVICE con-
tact the nearest Sears Service Center.
INTERNATIONAL
SYMBOLS
1. Read the
User Manual.
2. Use of these
personal safety
items is highly
recommended
to reduce the
risk of
injury
SAVE THESE INSTRUCTIONS
CARTON CONTENTS
Check the carton againt the following:
MODEL NO. 799310
• Trimmer
• Debris shield
• Wire guard with wheel
• 5 REX stringheads
if you need assistance, or find parts miss-
ing, call 1-800-339-8657.
ASSEMBLY NOTE: The only assembly
required for your trimmer is to install the
debris shield and adjust the assist handle.
DEBRIS SHIELD INSTALLATION
1. Positionthe motor housingwith string-
head carrier (A) facinq up (Figure 1).
A
Fig. 1
2. S_ide debris shield over motor housing
as shown (Figure 1).
3. Align edging guide with mating
grooves and push firmly in the direc-
tion {hown until an audible snap is
heard (Figure 2).
NOTE: Be certain that edging guide is ori-
ented as shown be ow Once edging
guide, motor housing and debris shield
are mated the connection Is perma-
nent and cannot be removed without a
special tool
I
BE CAREFUL,
THIS WIRE
GUARD CAN BE
INSTALLED
UPSIDE DOWN
Pig.z
4
