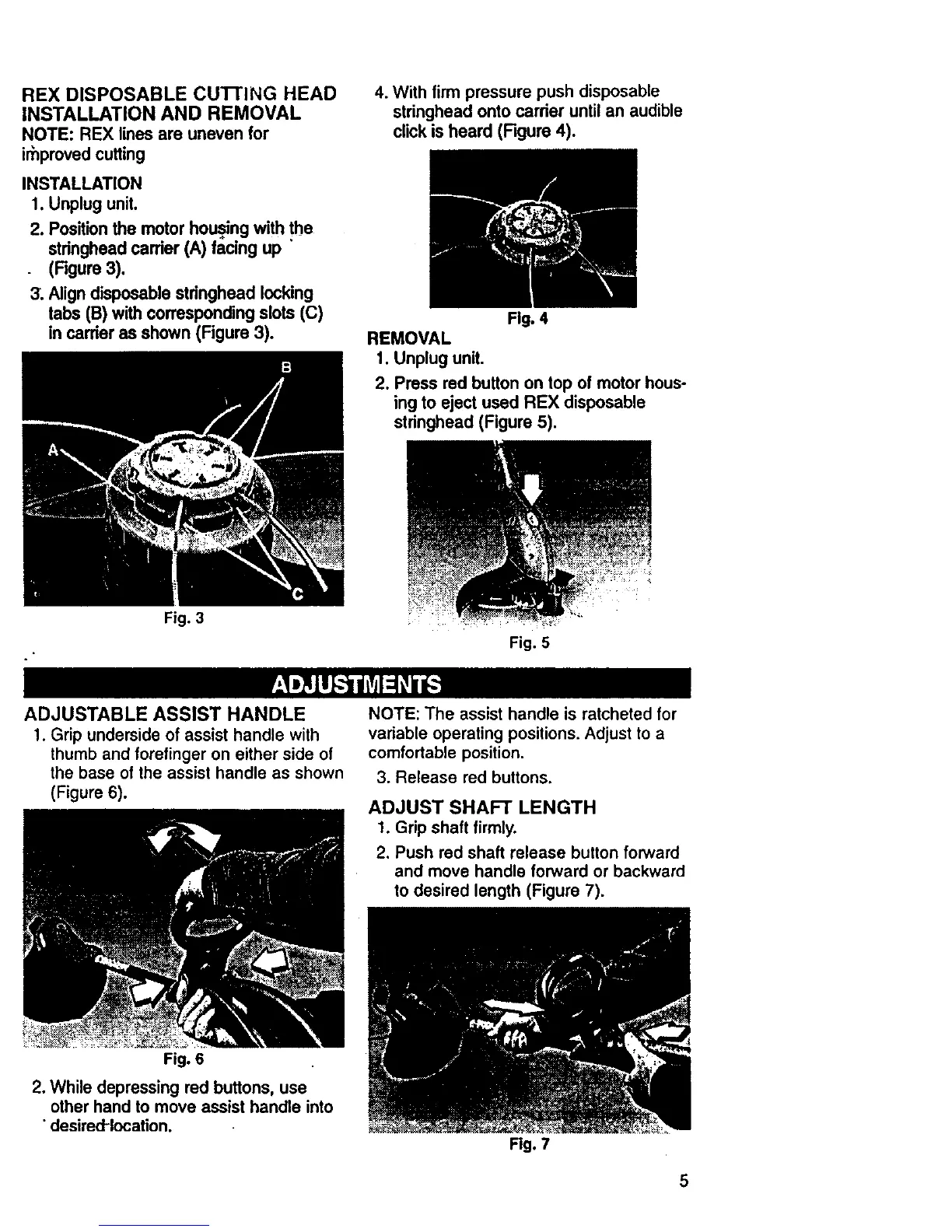

REX DISPOSABLE CU'I-rING HEAD
INSTALLATION AND REMOVAL
NOTE: REX lines are uneven for
ir_provedcutting
INSTALLATION
1. Unplugunit.
2. Positionthe motor housing with the
stringhead carrier (A) facing up "
(Figure 3).
3. Align disposable stdnghead locking
tabs (B) with corresponding slots (C)
in canrieras shown (Figure 3).
Fig. 3
4. With firm pressure push disposable
stringhead onto carder until an audible
click is heard (Figure 4).
Fig. 4
REMOVAL
1. Unplug unit.
2. Press red button on top of motor hous-
ing to eject used REX disposable
stringhead (Figure 5).
Fig. 5
ADJUSTABLE ASSIST HANDLE
1. Grip underside of assist handle with
thumb and forefinger on either side of
the base of the assist handle as shown
(Figure 6).
NOTE: The assist handle is ratcheted for
variable operating positions. Adjust to a
comfortable position.
3. Release red buttons.
ADJUST SHAFT LENGTH
1. Grip shaft firmly.
2. Push red shaft release button forward
and move handle forward or backward
to desired length (Figure 7).
Fig. 6
2. While depressing red buttons, use
other hand to move assist handle into
•desired-location.
Fig. 7
5
