ASSEMBLY
NOTE: All references to the left or right side of the snow thrower are
from the operator’s position. Any exceptions will be noted.
UNPACKING THE SNOW THROWER
1. Open the top of the carton.
2. Cut down the corners on the front of the carton and fold down the
front side.
3. Pull the snow thrower out of the carton. Be sure not to damage
the chute, or any cables attached to the chute, which is shipped
under the shroud on the backside of the carton.
ASSEMBLY
Positioning the Upper Handle
1. Remove the wing knobs and carriage bolts from the top of the lower
handle. See Figure 1. It is not necessary to remove the shoulder
screw and flange lock nut below the wing knob and carriage bolt.
2. Pivot the upper handle into the operating position. Be sure not to
pinch any of the cables in the process. See Figure 2.
3. Tighten the previously removed hardware to secure the handle in
place. See Figure 2.
Wing Knob
Wing Knob
Carriage Bolts

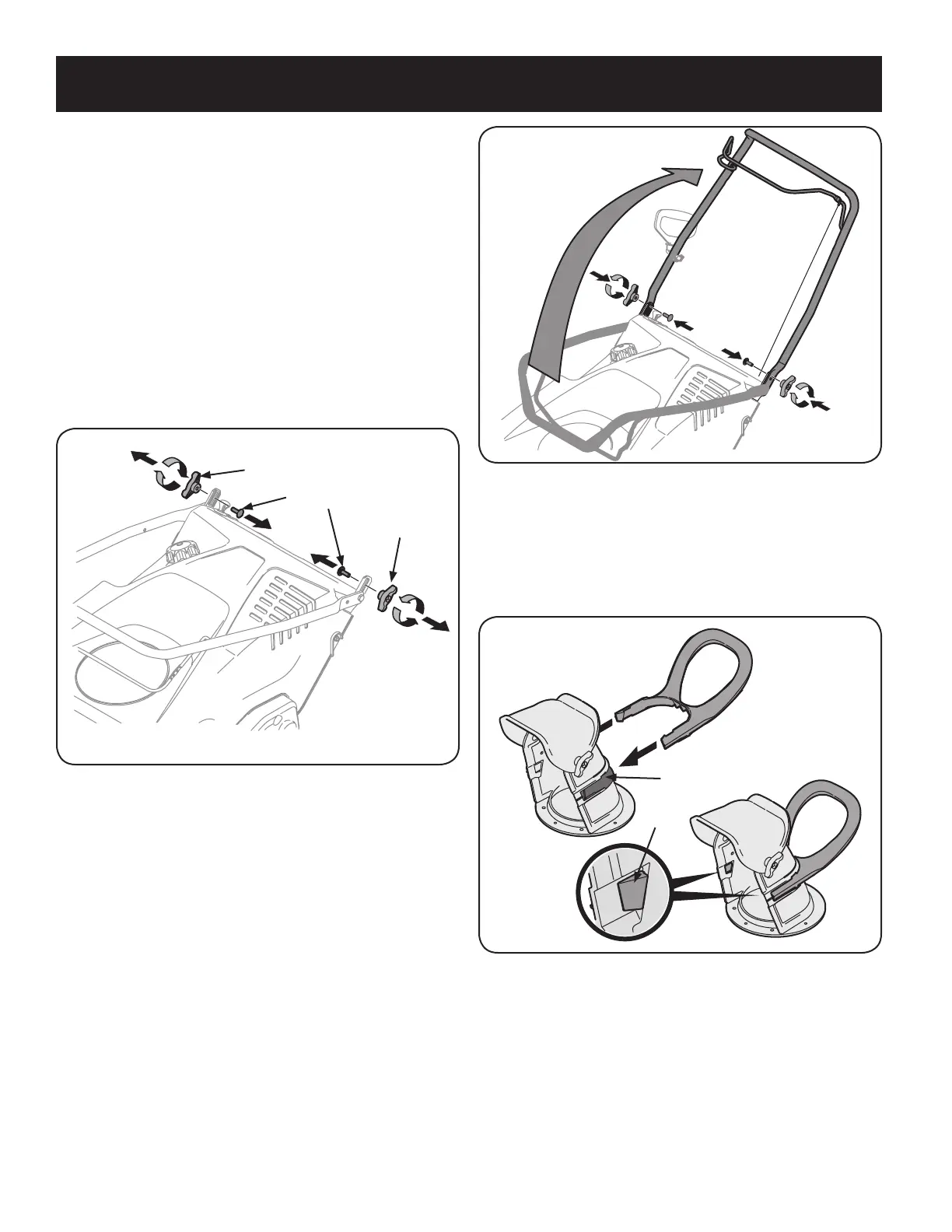

Figure 1
Figure 2
Figure 3
Installing the Chute
1. Place the chute handle on the lower chute as shown in Figure 3.
Be certain that the handle is aligned in the channel on the chute
and the tabs snap into place.
