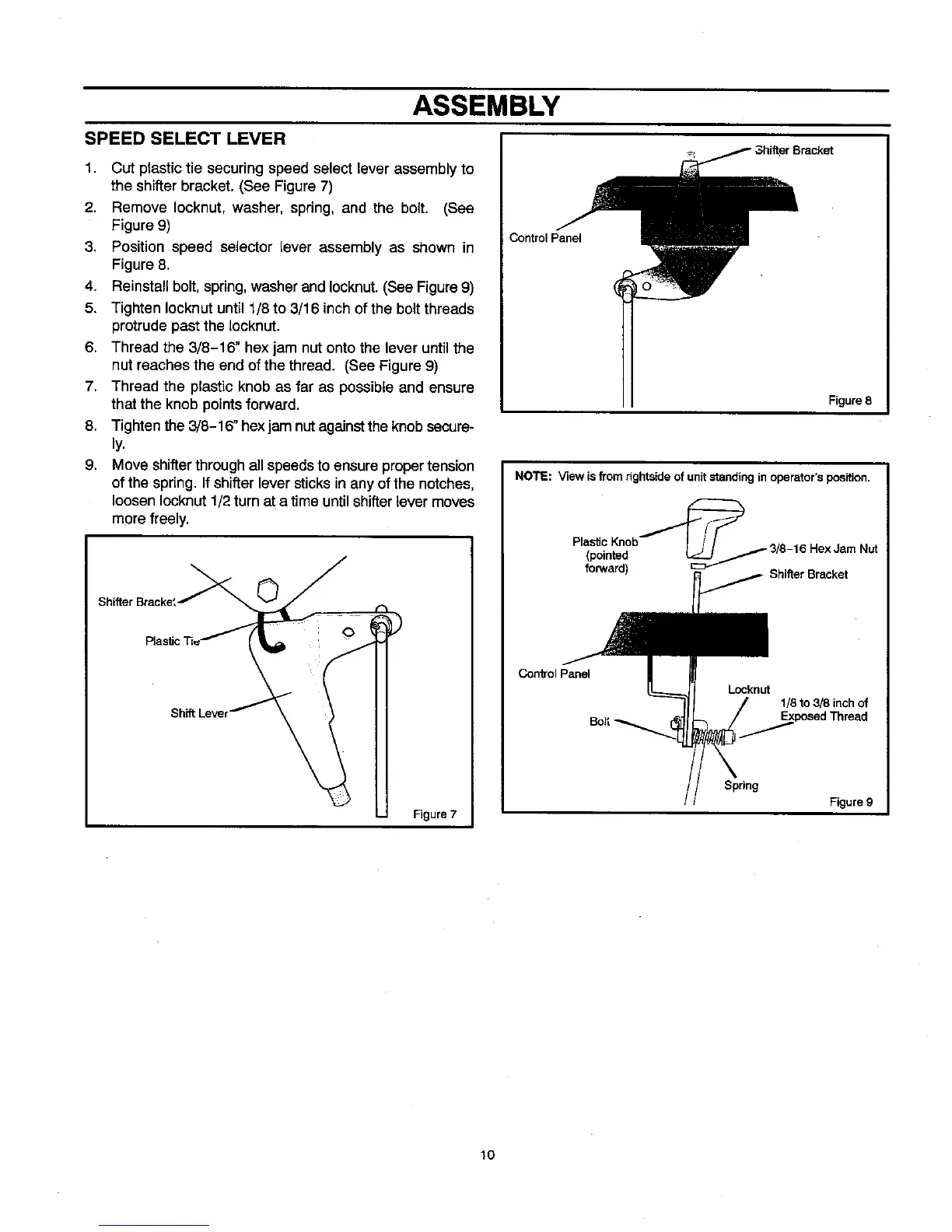

ASSEMBLY
SPEED SELECT LEVER
1. Cut plastic tie securing speed select lever assembly to
the shifter bracket. (See Figure 7)
2. Remove Iocknut, washer, spring, and the bolt, (See
Figure 9)
3, Position speed selector lever assembly as shown in
Figure 8.
4, Reinstall bolt, spring, washer and Iocknut. (See Figure 9)
5. Tighten Iocknut until 1/8 to 3/16 inch of the bolt threads
protrude past the locknut.
6. Thread the 3/8-16" hex jam nut onto the lever until the
nut reaches the end of the thread. (See Figure 9)
7. Thread the plastic knob as far as possible and ensure
that the knob points forward.
8. Tighten the 3/8-16" hex jam nut against the knob secure-
ly.
9. Move shifter through all speeds to ensure proper tension
of the spdng. If shifter lever sticks in any of the notches,
loosen Iocknut 1/2 turn at a time until shifter lever moves
more freely.
Shifter Bracke',_
Figure 7
Control Panel
Figure 8
NOTE: View is from rightside of unit standing in operator's position.
Plastic Kn°b_c:_._..,,,,,_ 38__ 16 HexJ
(pointed / - am Nut
forward) Shifter Bracket
ConlrolPanel
Locknut
1/8 to3/8 inch of
Spring
Figure g
