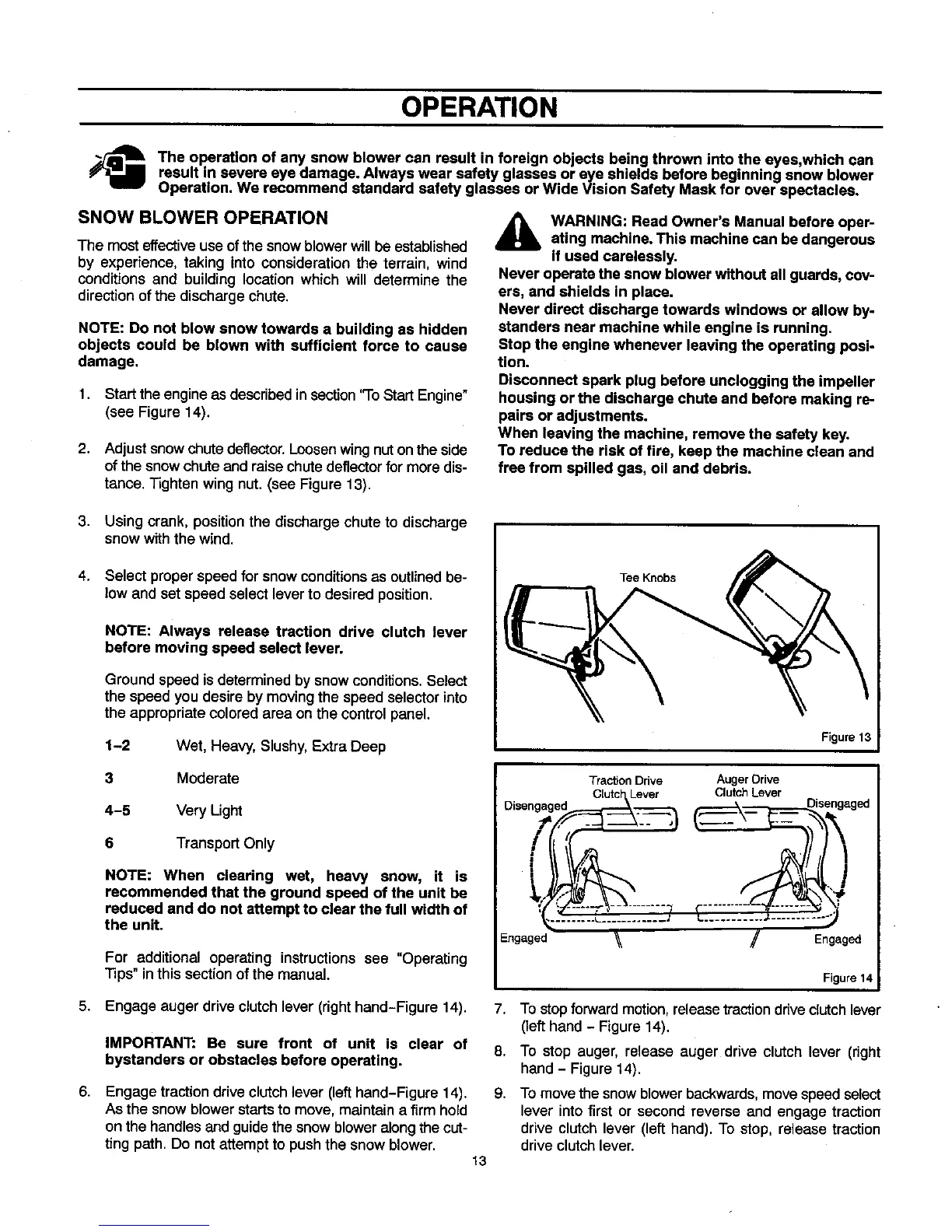

OPERATION
The operation of any snow blower can result in foreign objects being thrown into the eyes,which can
result in severe eye damage. Always wear safety glasses or eye shields before beginning snow blower
Operation. We recommend standard safety glasses or Wide Vision Safety Mask for over spectacles.
SNOW BLOWER OPERATION
The most effective use of the snowblower willbe established
by experience, taking into consideration the terrain, wind
conditions and building location which will determine the
direction of the discharge chute.
NOTE: Do not blow snow towards a building as hidden
objects could be blown with sufficient force to cause
damage.
1. Start the engine as described insection "ToStart Engine"
(see Figure 14).
2. Adjust snow chute deflector. Loosen wing nut on the side
of the snow chute and raise chute deflector for more dis-
tance. Tighten wing nut. (see Figure 13).
_[b ARNING: Read Owner's Manual before oper-
ating machine. This machine can be dangerous
if used carelessly.
Never operate the snow blower without all guards, cov-
ers, and shields in place.
Never direct discharge towards windows or allow by-
standers near machine while engine is running.
Stop the engine whenever leaving the operating posi-
tion.
Disconnect spark plug before unclogging the impeller
housing or the discharge chute and before making re-
pairs or adjustments.
When leaving the machine, remove the safety key.
To reduce the risk of fire, keep the machine clean and
free from spilled gas, oil and debris.
3,
4.
Using crank, position the discharge chute to discharge
snow with the wind.
Select proper speed for snow conditionsas outlined be-
low and set speed select lever to desired position.
NOTE: Always release traction drive clutch lever
before moving speed select lever.
Ground speed is determined by snowconditions. Select
the speed you desire by moving the speed selector into
the appropriate colored area on the control panel.
1-2 Wet, Heavy, Slushy, Extra Deep
3 Moderate
4-5 Very Light
6 Transport Only
NOTE: When clearing wet, heavy snow, it is
recommended that the ground speed of the unit be
reduced and do not attempt to clear the full width of
the unit.
For additional operating instructions see "Operating
Tips" in this sectionof the manual.
5. Engage auger drive clutch lever (right hand-Figure 14).
6,
IMPORTANT: Be sure front of unit is clear of
bystanders or obstacles before operating.
Engage tractiondrive clutch lever (left hand-Figure 14).
As the snow blower starts to move, maintain a firm hold
on the handles and guide the snow blower along the cut-
ting path. Do not attempt to push the snow blower.
Tee Knobs
Figure 13
13
Traction Drive Auger Drive
Disengaged C'l 'ch [e_ r_ ---'--'-_ Clu_h Lever
g_
Engaged _ / Engaged
Figure 14
7. To stop forwardmotion, release tractiondrive dutch lever
(left hand - Figure 14).
8. To stop auger, release auger drive clutch lever (right
hand - Figure 14).
9. To move thesnow blower backwards, move speed select
lever into first or second reverse and engage traction
drive clutch lever (left hand). To stop, release traction
drive clutch lever.
