Troubleshooting
For assistance with your machine, visit our website at
www.craftsman.com for a list of service centers or call the
help line at 1-888-331-4569.
Accessories

WARNING: Since accessories, other than those
offered by CRAFTSMAN, have not been tested with
this product, use of such accessories with this tool
could be hazardous. To reduce the risk of injury, only
CRAFTSMAN recommended accessories should be
used with thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact CRAFTSMAN, call 1-888-331-4569.
MINIMUM AND
MAXIMUM PLANING
DIMENSIONS
1/2"
(12.7 mm)
MINIMUM
3/4"(19 mm) MINimum
6"
(152.4 mm) MAXIMUM
10" (254 mm) MINIMUM
Fig.FF
Direction of Grain (GG, HH)
Avoid feeding work into the jointer against the grain. The
result will be chipped and splintered edges. Feed with the
grain to obtain a smoothsurface.
IN-FEED TA BLE
OUT-FEED
TABLE
CUTTER
MATERIAL
CORRECT FEED - WITH THE GRAIN
Fig.GG
IN-FEED TABLE
OUT-FEED
TABLE
WRONG FEED -
AGAINST THE
GRAIN
MATERIAL
Fig.HH
deflection in the belt
43
at the center span of the
pulleys using light finger pressure. The belt does not
require excessive tension to functionproperly.
4. Replace belt guard
41
.
Fig.II
41
40
43
42
42
Fig.JJ
44
Failure to Start
Should your machine fail to start, check to make sure the
prongs on the cord plug are making good contact in the
outlet. Also, check for blown fuses or open circuit breakers
in theline.
MAINTENANCE

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.

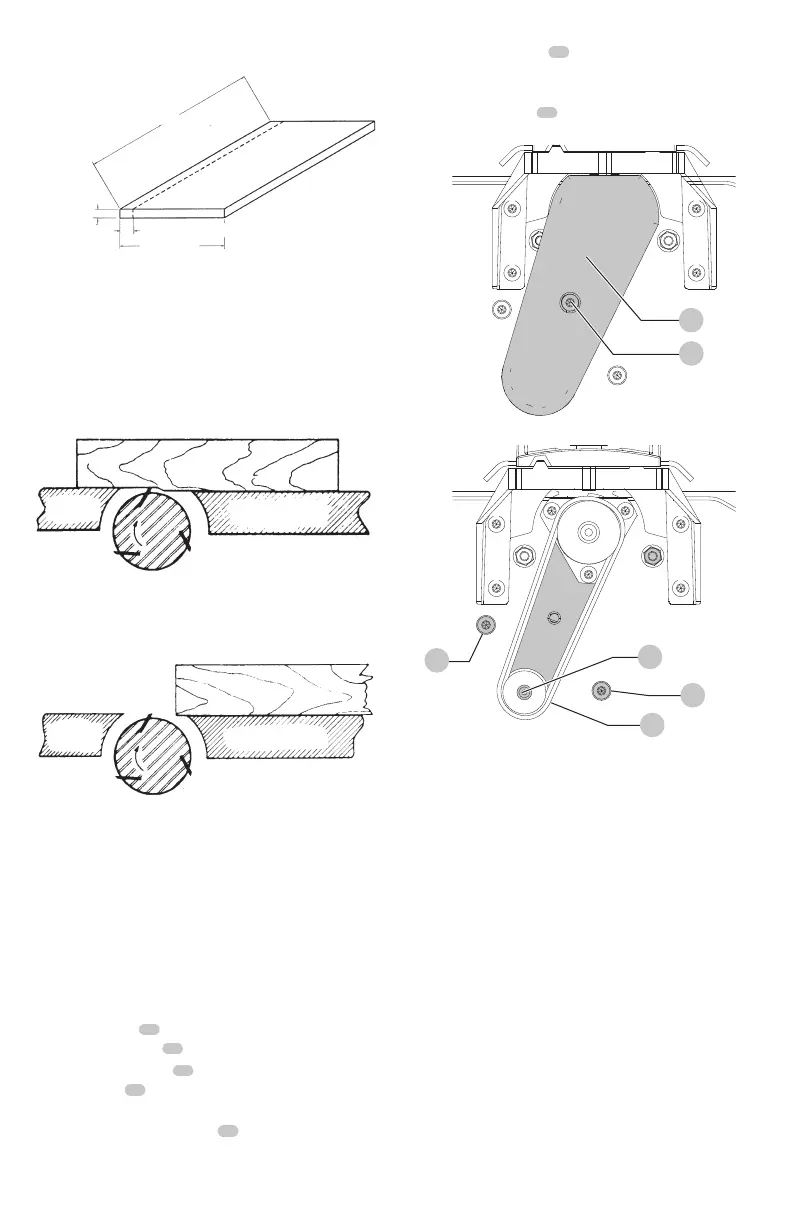

Belt Replacement (Fig. II, JJ)
When it becomes necessary to replace the belt on
yourjointer:
1. Remove screw
40
using hex wrench supplied, and
remove belt guard
41
.
2. Loosen three screws
42
to release belt tension and
remove belt
43
frompulleys.
3. Assemble new belt to the cutterhead and motor pulleys.
Press down on motor pulley
44
to tension belt and
tighten three screws.
NOTE: There should be approximately 1/4" (6.4 mm)
