Craftsman CMEW020 Manual

5
ENGLISH
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
COMPONENTS FIG. A
Motor
Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
of power and overheating. These tools are factory tested; if
this tool does not operate, check powersupply.
Intended Use
The CMEW020 is a 6" (152 mm), variable-speed bench
jointer intended for jointing and planing wood with a
designed cutting capacity of 6" (152 mm) wide and 1/8"
(3mm) deep. Unit includes a 10 Amp, 120Volt motor with
a variable speed range of 6000 to 11000RPM, and a cutting
speed range of 12000 to 22000CPM, a dust chute, a center-
mounted fence, a two-knife cutterhead, a cutterhead guard
and lock, wrenches, and pushblocks.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian ElectricCode.

DANGER: In all cases, make certain that the
receptacle in question is properly grounded. If
you are not sure, have a qualified electrician
check thereceptacle.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.

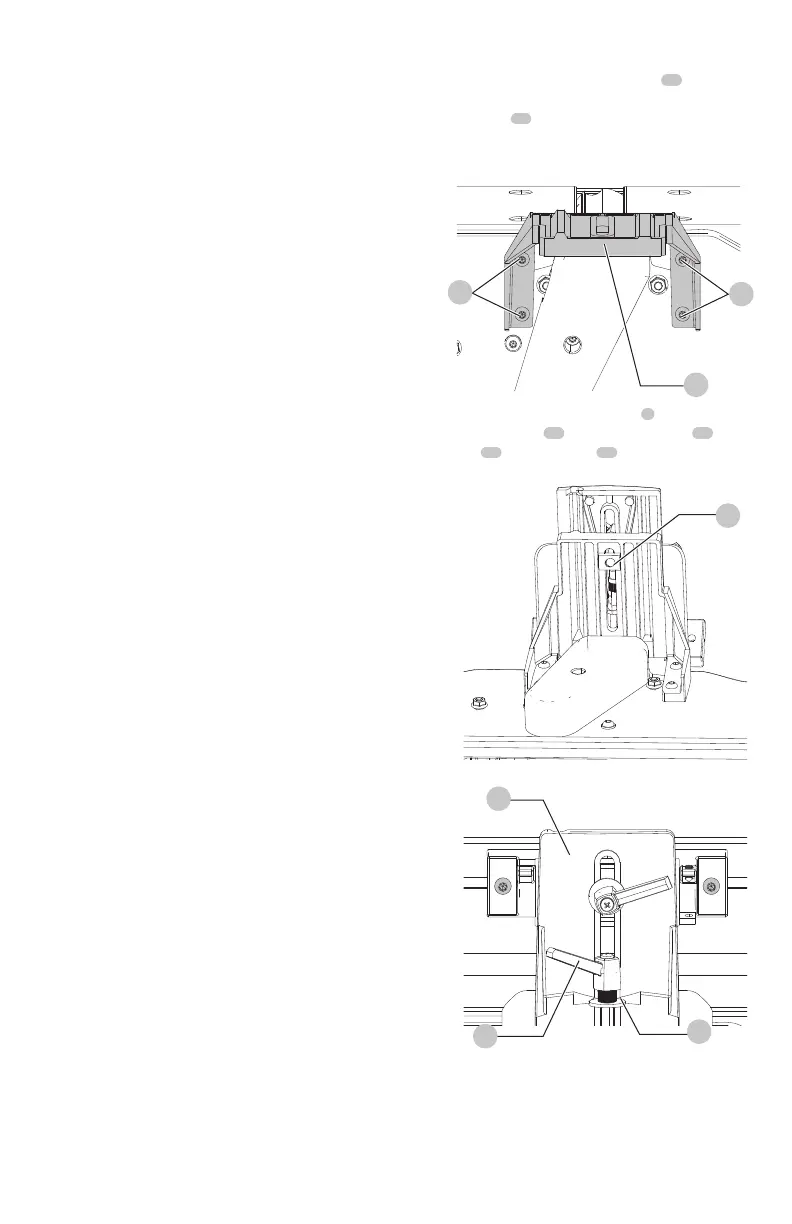

Fence (Fig. D–J)
1. Assemble the fence mounting bracket
11
to the
jointer base using the four M6 x 1 mm x 16 mm button
headscrews
12
.
Fig.D
12
12
11
2. Assemble the fence sliding bracket
3
to fence
mounting bracket
11
using the lockhandle
19
, M8 flat
washer
13
and special nut
14
.
Fig.E
14
Fig.F
3
19
13
Unpacking and Cleaning
Carefully unpack the machine and all loose items from the
shipping container(s). Remove the rust-preventative oil
from unpainted surfaces using a soft cloth moistened with
mineral spirits, paint thinner or denatured alcohol.
NOTICE: Do not use highly volatile solvents such as
gasoline, naphtha, acetone or lacquer thinner for
cleaning your machine.
After cleaning, cover the unpainted surfaces with a good
quality household floor pastewax.
Assembly Tools Required
Two hex wrenches (supplied)
Assembly Time Estimate
Assembly for this machine takes approximately 1hour.

Craftsman CMEW020 Specifications

General

Brand	Craftsman
Model	CMEW020
Category	Power Tool
Language	English
