REPAIR PARTS
TILLER - - MODEL NUMBER 917.292402

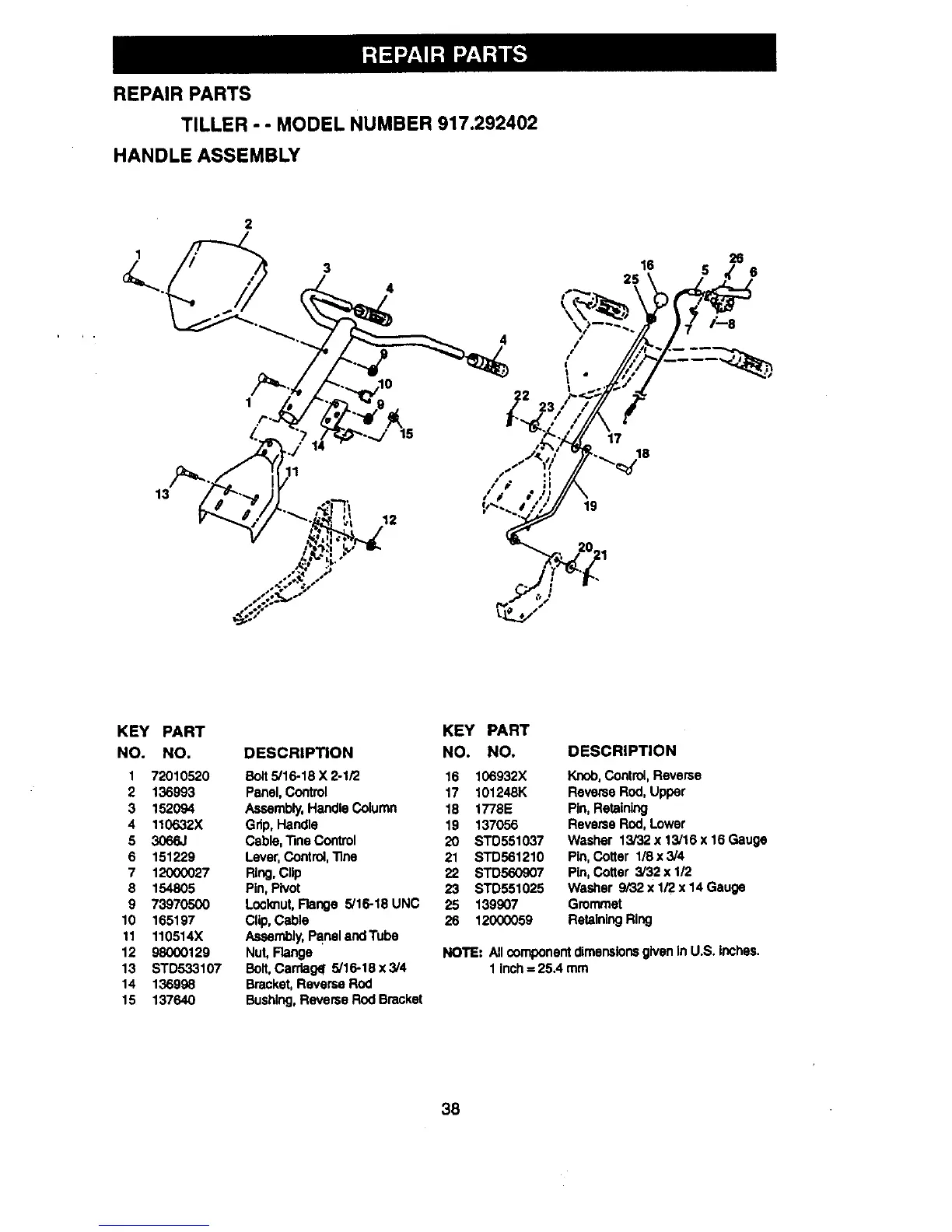

HANDLE ASSEMBLY
1
13
2
1
11
3
4
12
19
16
25
/
/
I
I •
t
17
18
5 6
/--8
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 72010520 Bolt5/16-18 X 2-1/2 16 106932X
2 136993 Panel, Control 17 101248K
3 152094 Assembly,HandleColumn 18 1778E
4 110632X Grip,Handle 19 137056
5 3066J Cable,line Control 20 STD551037
6 151229 Lever,Control, line 21 STD561210
7 12000027 Ring.Clip 22 STD560907
8 154805 Pin,Pivot 23 STD551025
9 73970500 Locknut,Flange 5/16-18 UNC 25 139907
10 165197 Clip,Cable 26 12000059
11 110514X Assembly,Panel aodTube
12 98000129 Nut, Flange
13 STD533107 Bolt,Cardag_r 5/16-18x3/4
14 136998 Bracket,Reverse Rod
15 137640 Bushing,Reverse Rod Bracket
DESCRIPTION
Knob,Control, Reverse
Reverse Rod,Upper
Pin,Retaining
Reverse Rod,Lower
Washer 13/32 x 13/16 x 15 Gauge
Pin,Cotter 1/8 x 3/4
Pin,Cotter 3/32 x 1/2
Washer 9/32 x 1/2 x 14 Gauge
Grommet
RetainingRing
NOTE: All componentdimensior,.sgivenIn U.S. inches.
1 inch-- 25.4 mm
