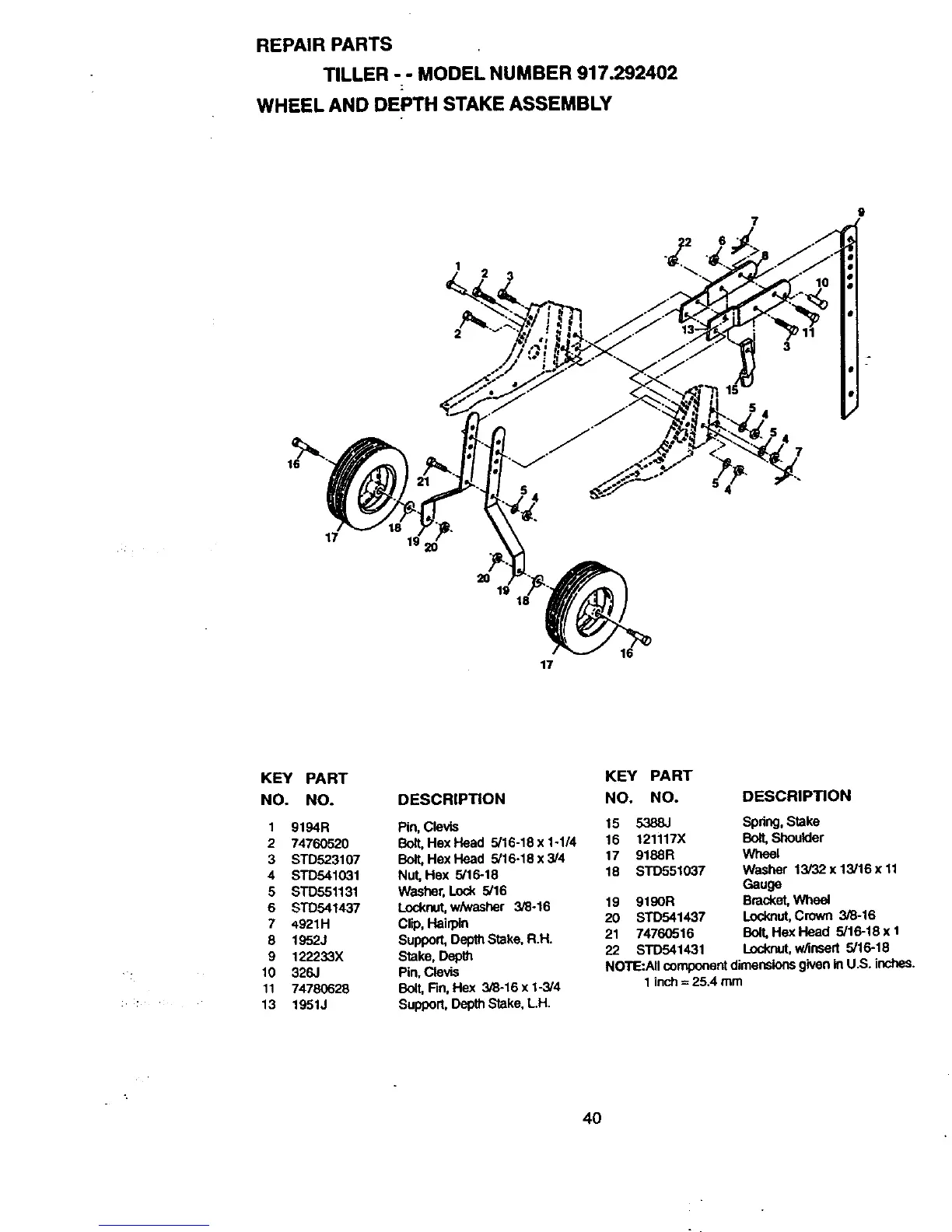

REPAIR PARTS
TILLER - - MODEL NUMBER 917.292402
WHEEL AND DEPTH STAKE ASSEMBLY
7
17
1920
19 1
/ _ 16
17
KEY PART
NO. NO.
1 9194R
2 74760520
3 STD523107
4 STD541031
5 STD551131
6 $TD541437
7 4921H
8 1952J
9 122233X
10 326J
11 74780628
13 1951J
KEY PART
DESCRIPTION NO. NO.
Pin,Clevis 15 5388J
Bolt,HexHead 5/16-18 x 1-1/4 16 121117X
Bolt,HexHead 5/16.18x3/4 17 9188R
Nut, Hex 5/16-18 18 STD551037
Washer,Lock 5/16
Locknut,whvasher 3/8-16 19 9190R
Clip, Hairpin 20 STD541437
Support,Depth Stake, R.H. 21 74760516
Stake, Depth 22 STD541431
Pin,Clevis
Bolt,Fin,Hex 3/8.16 x 1-3/4
Support,DepthStake, L.H.
DESCRIPTION
Spdng,Stake
Bolt,Shoulder
Wheel
Washer 13/32 x 13/16 x 11
Gauge
Brask_, Wheel
Locknut,Crown 3/8-16
Bolt,Hex Head 5/16-18 x 1
Locknut,w/insert 5/16-18
NOTE:AllcompooentdimensionsgiveninU.S. inches.
1 inch= 25.4 mm
4O
