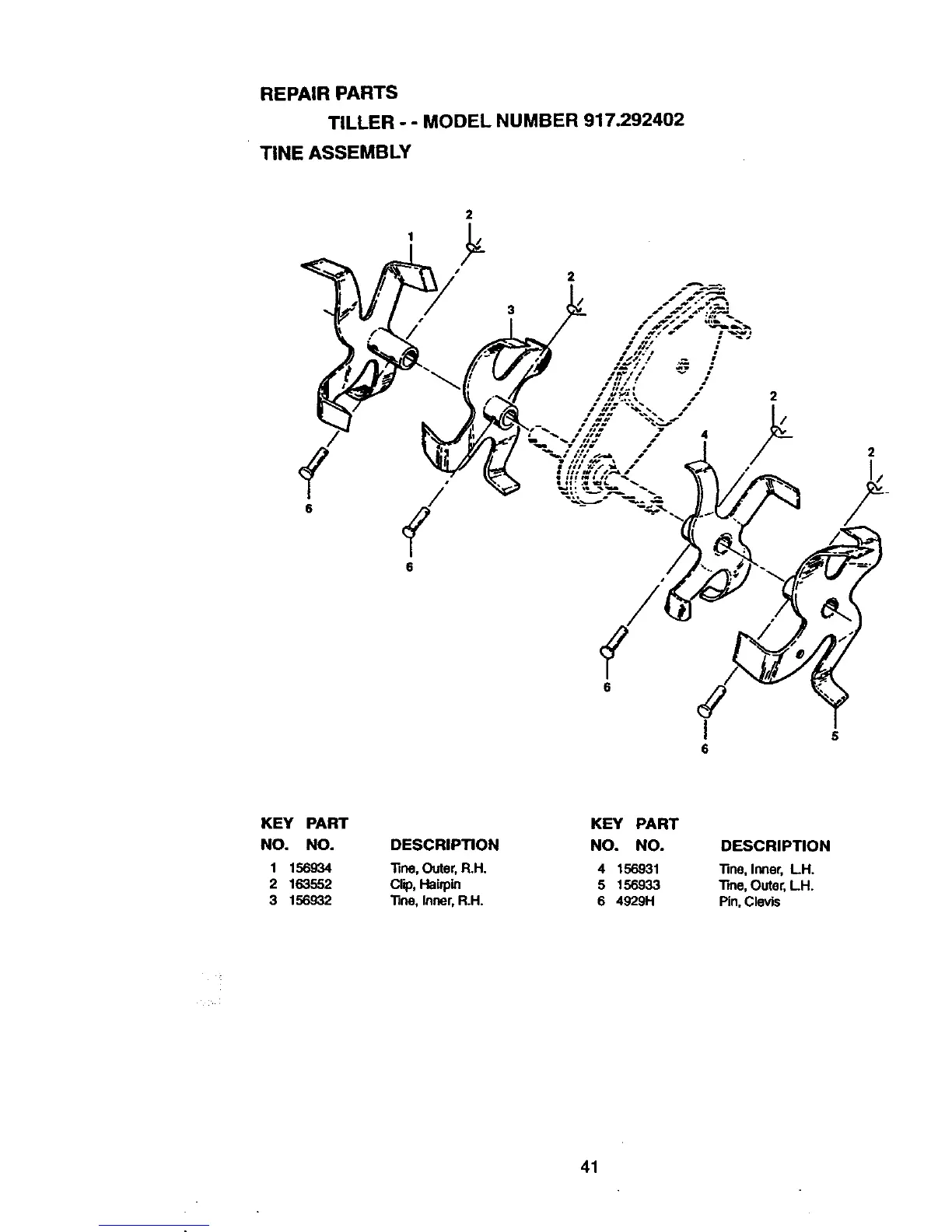

REPAIR PARTS
TILLER - - MODEL NUMBER 917.292402
TINE ASSEMBLY
/
6
2
3
2
i 5
6
KEY PART
NO. NO.
1 156934
2 163552
3 156932
DESCRIPTION
"Rne,Outer,R.H.
Clip, Hairpin
"line,Inner, R.H.
KEY PART
NO. NO.
4 156931
5 156933
6 4929H
DESCRIPTION
"nne.Inner, LH.
Tree,Outer,LH.
Pin,Clevis
