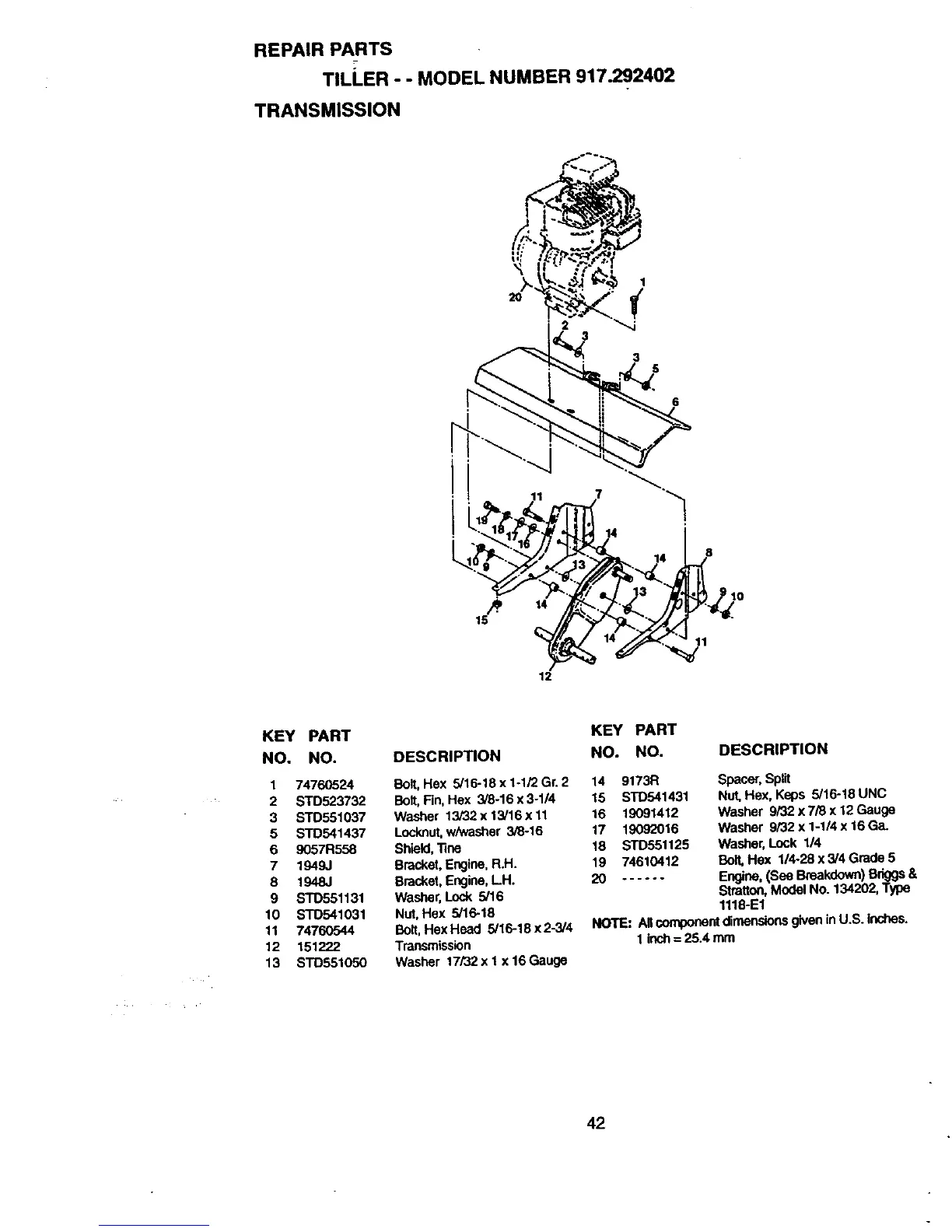

REPAIR PARTS
TILLER - - MODEL NUMBER 917.292402
TRANSMISSION
6
11
14
15
12
KEY PART
NO. NO.
1 74760524
2 STD523732
3 STD551037
5 STD541437
6 9057R558
7 1949J
8 1948J
9 STD551131
10 STD541031
11 74760544
12 151222
13 STD551050
DESCRIPTION
Bolt,Hex 5/16-18 x 1-1/2 Gr.2
Bolt, Fin, Hex 3/8-16 x 3-1/4
Washer 13/32 x 13/16 x 11
Locknut,w/washer 3/8-16
Shield,"fine
Bcacket,C-,nglne,R.H.
Bracket,Engine,LH.
Washer,lock 5/16
Nut, Hex 5/16-18
Bolt, Hex Head 5/16-18 x2-3/4
Transmission
Washer 17/32x I x 16 Gauge
KEY PART
NO. NO, DESCRIPTION
14 9173R Spacer, Split
15 STD541431 Nut, Hex, Keps 5/16-18 UNC
16 19091412 Washer 9i32x7/8x12Gauge
17 19092016 Washer 9/32 x 1-1/4 x 16Ga.
18 STD551125 Washer,Lock 1/4
19 74610412 BoR,Hex 1/4-28 x 3/4 Gmde 5
20 ...... En_ne, (See Breakdown)Bdggs&
Stratton,Model No. 134202,Type
1118-E1
NOTE: AllcomponentdimensionsgiveninU.S. inches.
1 inch= 25.4 mm
42
