4 Design and function
4.1 Brief description
On the TOURNO model, the mowing mechanism is mounted in the front section. For better road adhesion and traction, the
machine has a front-wheel drive and a double-axle drive for the four wheel drive version, respectively. The machine has an
articulated steering via the rear wheels. The speed is controlled progressively by a hydrostatic drive. The height of the mowing
mechanism can be adjusted. The mowing mechanism can be folded up for cleaning and repairs. Various mounting tools can be
attached at the front and rear of the machine.

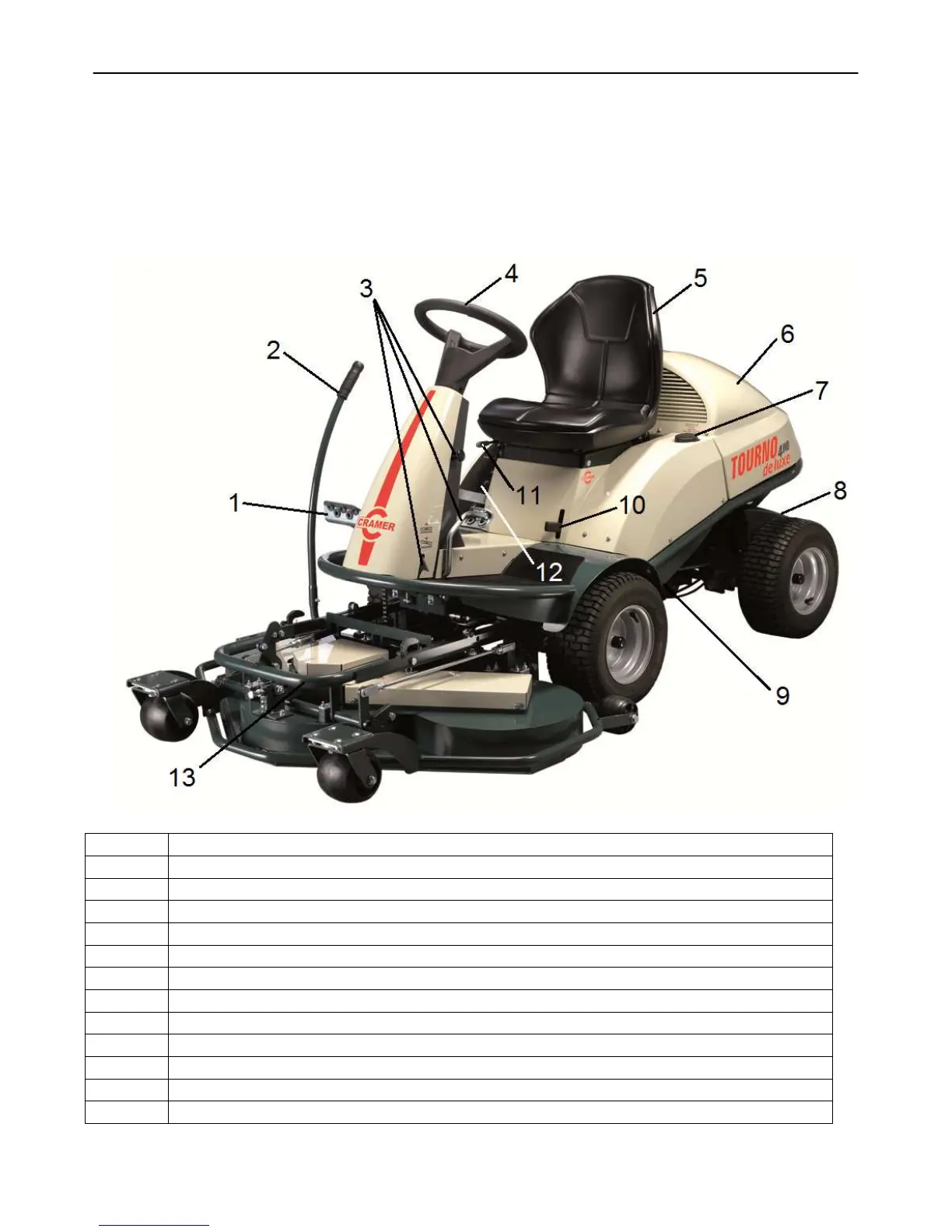

4.2 Overview
1
Accelerator pedal (forward and reverse drive)
2
Adjustment lever for mulching or mowing (model 115 only)
3
Lifting and lowering the mowing mechanism
4
Steering wheel
5
Driver's seat
6
Motor cover
7
Tank opening
8
Lever for motor-gear connection (all-wheel drive)
9
Lever for motor-gear connection (all models)
10
Parking brake lever
11
Seat adjustment
12
Operating panel
13
Mowing mechanism
