TOURNO 696.01-01 8 of 26 As of 2014
Original Operation Manual English

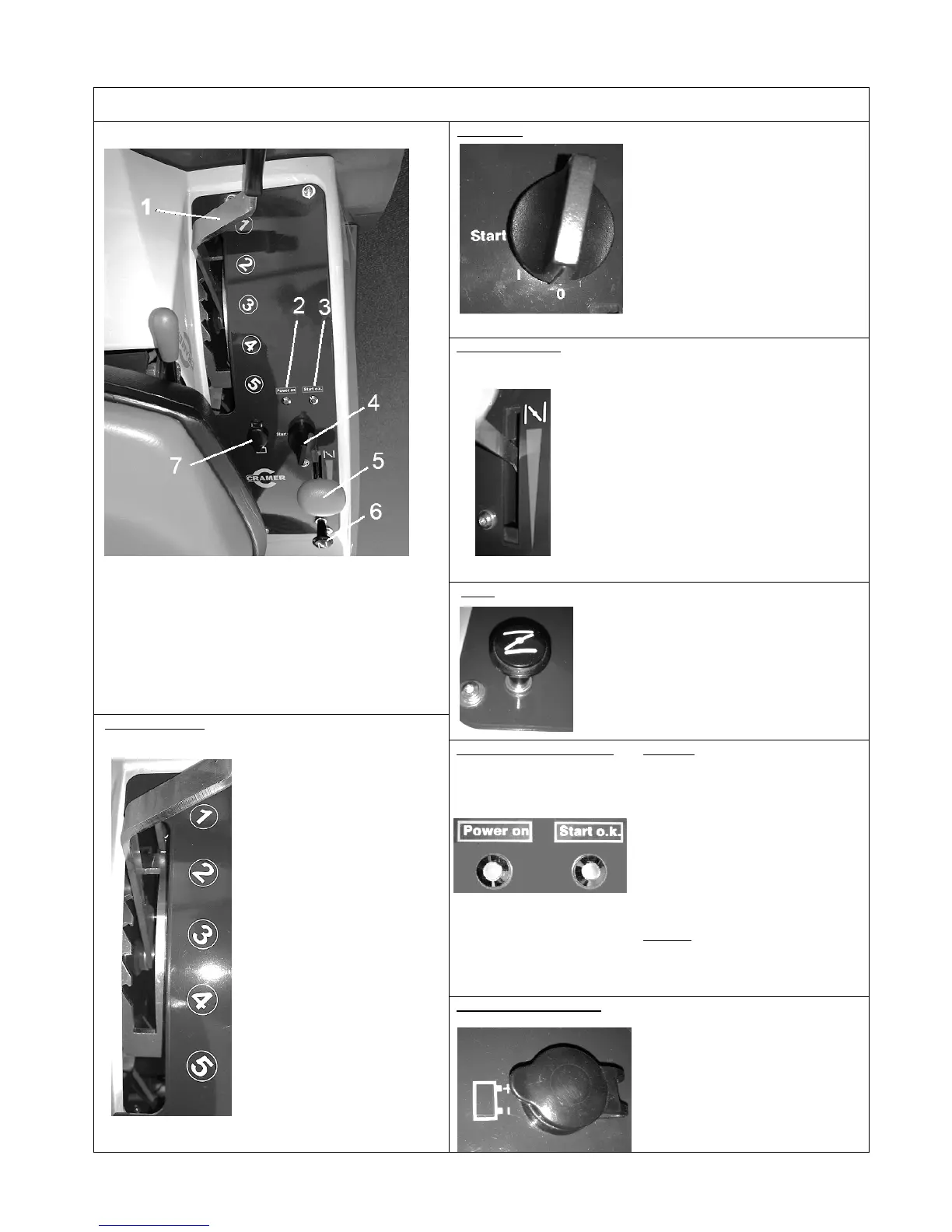

4.3 Displays and operating elements
Operating panel
1 Adjustment lever for mowing height setting
2 Green safety indicator lamp
3 Red operating indicator lamp
4 Ignition
5 Lever for rotational speed
6 Choke
7 Charging socket for battery
Ignition lock
Put the ignition key into the ignition lock
and turn it.
O → Machine inopera+ve
1 → Machine in opera+on (motor is
running)
Throttle with choke
Push throttle to the desired position.
Choke
Full throttle
Idle
Choke
Pull the choke before starting the machine.
Push down again before starting to move.
Set mowing height The height of the mowing
mechanism can be set by adjusting
the lever. Move the lever until it
engages in the desired position.
approx. 4 cm
approx. 5 cm
approx. 6 cm
approx. 7 cm
approx. 9 cm
Green and red indicator lamp Power on
Lights up green when starting, provided
that the following conditions are met
prior to starting:
• Ignition off
• Driver seat occupied
• Mowing mechanism raised
• Accelerator pedal in neutral position
The motor can only be started when the
indicator lamp is lit.
Start o.k.
Lights up red when starting.
The indicator lamp shows that the
ignition is switched on.
Charging socket for battery
To charge the battery, open the
protective cap and connect the charger.
