Cramer TOURNO compact 95 - Assembling the Mowing Mechanism; Mowing Mechanism Component Identification

TOURNO 696.01-01 21 of 26 AS OF 2014
Original Operation Manual English

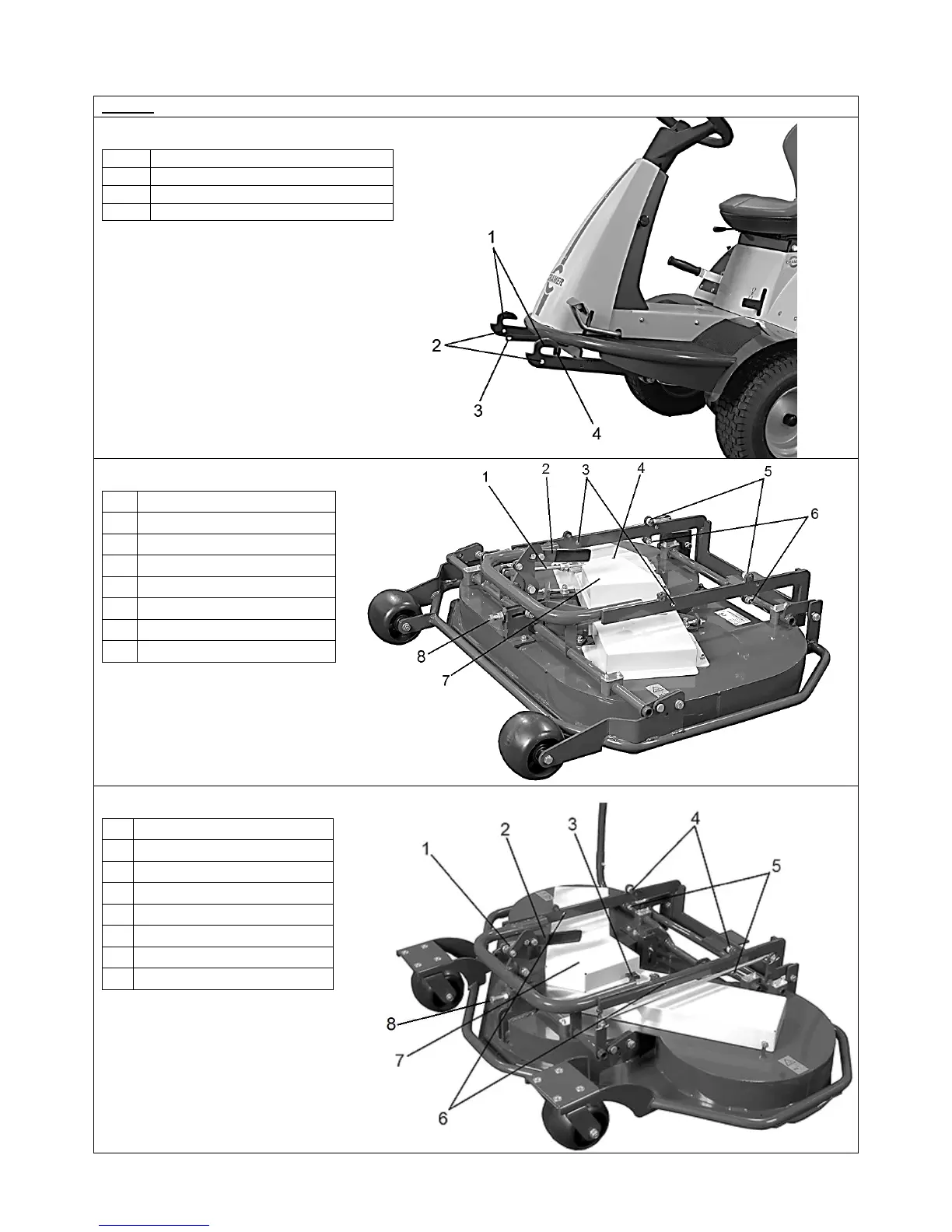

9 Assembling the mowing mechanism
Overview
Receiver point for carrier
1
Fork
2 Hole for bolt with spring clip
3
Hole for deflection rod
4
V-belt fixture
Mower 95
1 Deflection rod for lifting mower
2 Lever for V-belt tensioning
3 Hole for bolt with spring clip
4 Star handle screw
5 Guide pins
6 Allen screws
7 Cover
8 Tensioning screw
Mower 115
1 Deflection rod for lifting mower
2 Lever for V-belt tensioning
3 Star handle screw
4 Guide pins
5 Allen screws
6 Hole for bolt with spring clip
7 Cover
8 Tensioning screw
