TOURNO 696.01-01 22 of 26 AS OF 2014
Original Operation Manual English

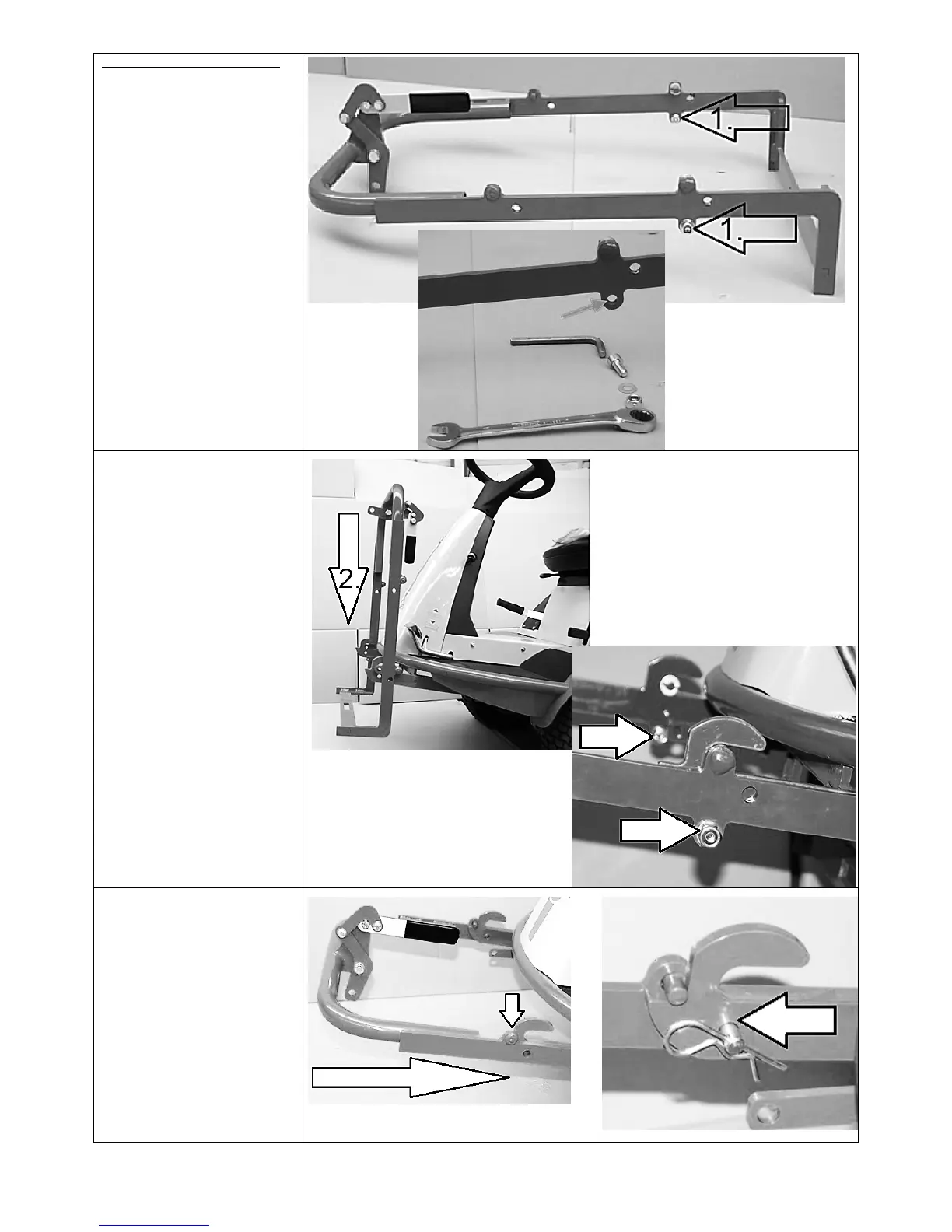

A1: Assembling the swivel frame
1. Remove the two Allen screws
from the swivel frame
2. Place the swivel frame
vertically onto the receiver
point from above
3. Lower the swivel frame
4. Insert the two Allen screws
back into the same holes (the
screw heads must be on the
inside).
5. Push the swivel arm as far as
possible toward the TOURNO.
6. The bolts must be located on
the fork.
7. Secure this position using the
two bolts and spring clips.
