11

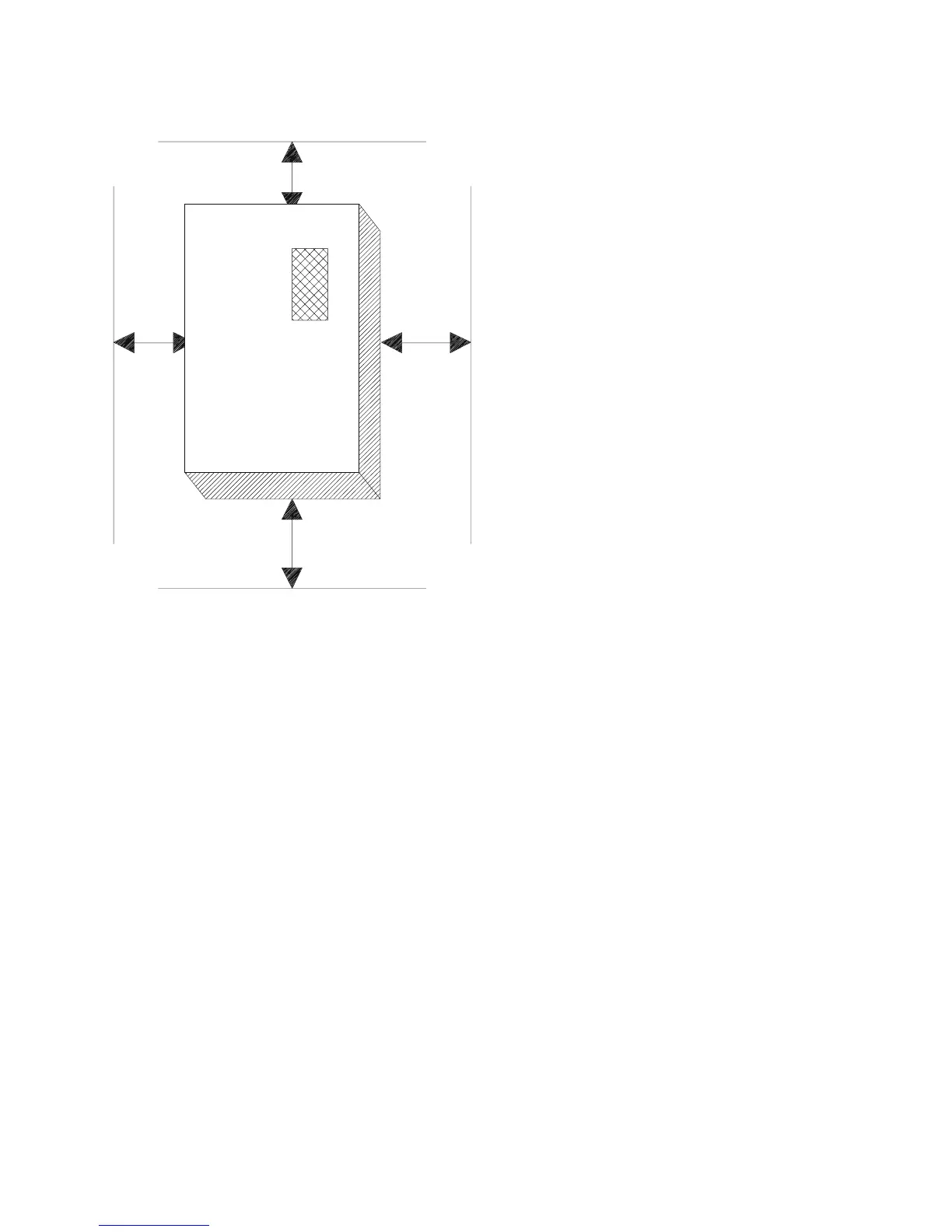

Fig. 1.2.1: Recommended Clearances for Drive Mounting
A: over 6.0’’ (15cm)
B: over 2.0’’ (5cm)
A
A
B
B
Note: Allow more room between drive and other heat producing components (such as
transformers and drive ballast resistors) than shown in Fig. 1.2.1. These
components radiate enough heat to damage the drive and its internal
components.
