5.2.10 Output Voltage Adjustment
F17:
Output Voltage Adjustment (Factory Default: 100%)
Range:50-110%
Inverter output voltage can be adjusted to motor rated input voltage. This function is
useful when rated motor voltage is lower than the rated inverter output voltage.
110% means over-modulation in PWM causing a higher output voltage compared to
100% of rated output voltage.
5.2.11 Frequency Reaching Signal
This function is used to operate the electric motor brake. The output signal is gener-
ated once the drive reaches output frequency level for enough flux gain in the motor
and ready to release the brake. See Section 5.2.4 for more information regarding
the brake and the Multi-Function Output.
F18:
Brake Release Frequency (Factory Default: F12 + 0.01 Hz.)
Range:0.01 - F9 Hz
F19: Frequency Reaching Signal Band (Factory Default: 0.0 Hz.)
Range:0.0 - 30.0 Hz

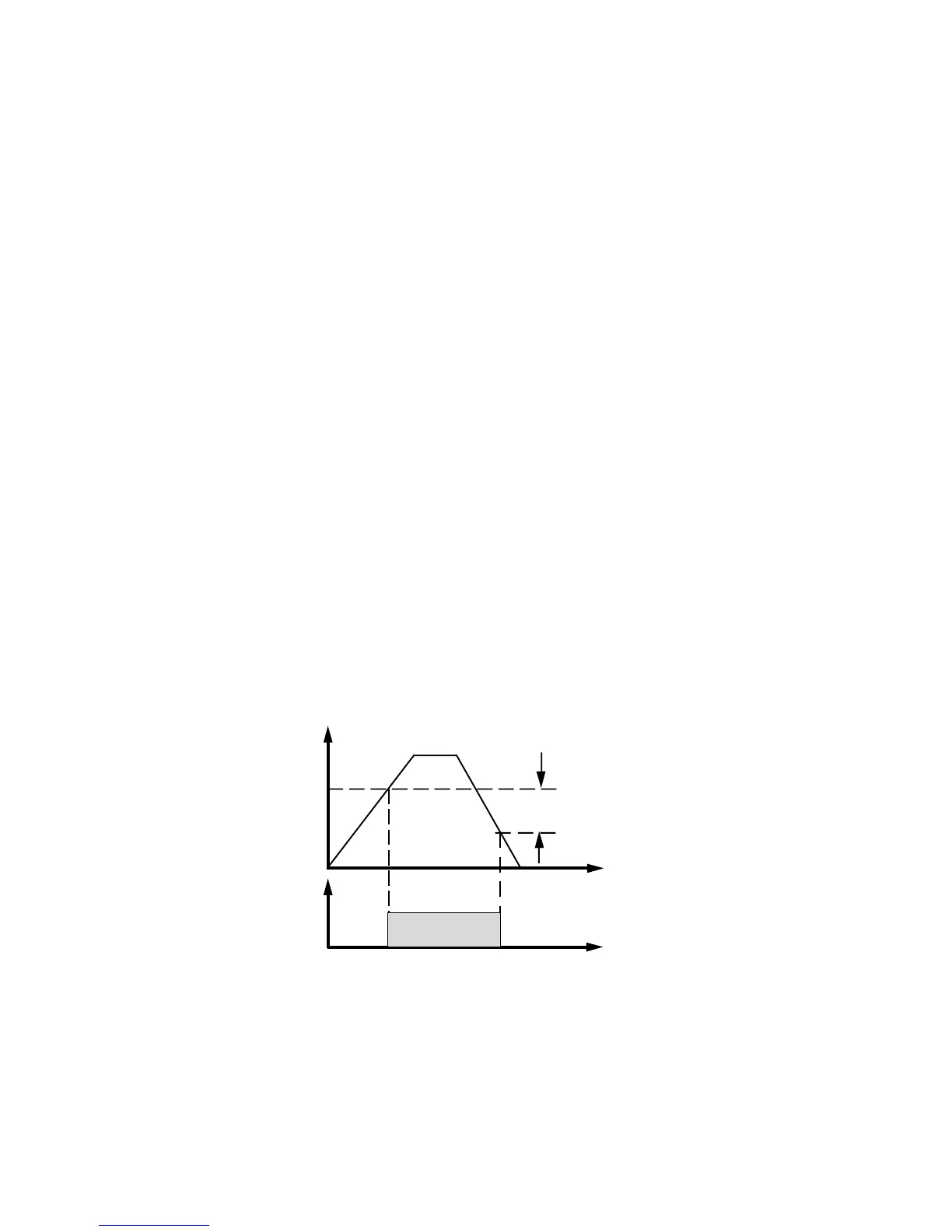

Fig. 5.2.11: Brake Release Functions Diagram
ON
F19
F18
B3 - B4
Output Frequency
Time
