Model 721 Parts Manual

7210013 1

March, 2000

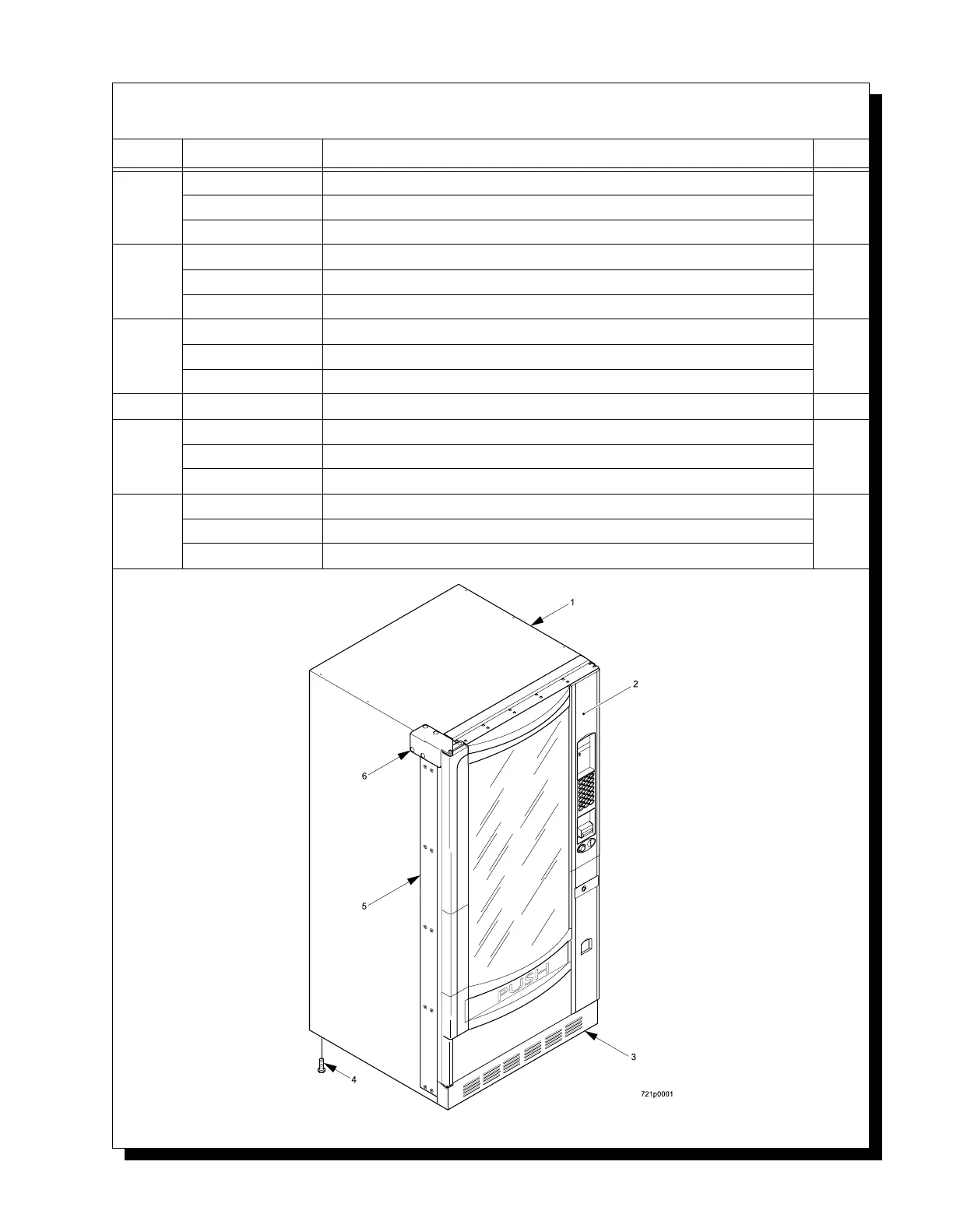

Figure 1. Overall Merchandiser

TABLE 1. OVERALL MERCHANDISER

INDEX PART NUMBER DESCRIPTION QTY

7211285 CABINET ASSEMBLY - INSULATED - BLACK

17210009 CABINET ASSEMBLY - INSULATED - BLUE

7210008 CABINET ASSEMBLY - INSULATED - RED

7212000 DOOR ASSEMBLY - MILLENNIA GRAY

17212074 DOOR ASSEMBLY - BLUE

7212073 DOOR ASSEMBLY - RED

7211290 WELD ASSEMBLY - BLACK KICK PANEL

17211292 WELD ASSEMBLY - BLUE KICK PANEL

7211291 WELD ASSEMBLY - RED KICK PANEL

4 4531016 LEVELER - CABINET - SHORT 4

7211293 VANDAL PANEL - BLACK HINGE SIDE

17211295 VANDAL PANEL - BLUE

7211294 VANDAL PANEL - RED

7211289 HINGE ASSEMBLY - BLACK UPPER

17211297 HINGE ASSEMBLY - BLUE UPPER

7211296 HINGE ASSEMBLY - RED UPPER
