Assembly Instructions (cont)
Step 4
(42) M6*80 flat cross head bolt- 1pc
(83) saddle carrier
PP blocker-2pcs
(50) M3*10 self stapping
screw - 1pc
(43) M6*10 round cross
head screw - 1pc
Multi-functional spanner
NOTE: The Sliding rail end cap (77) is placed in a seperate PE bag. Please identify this part out of box
before this step.

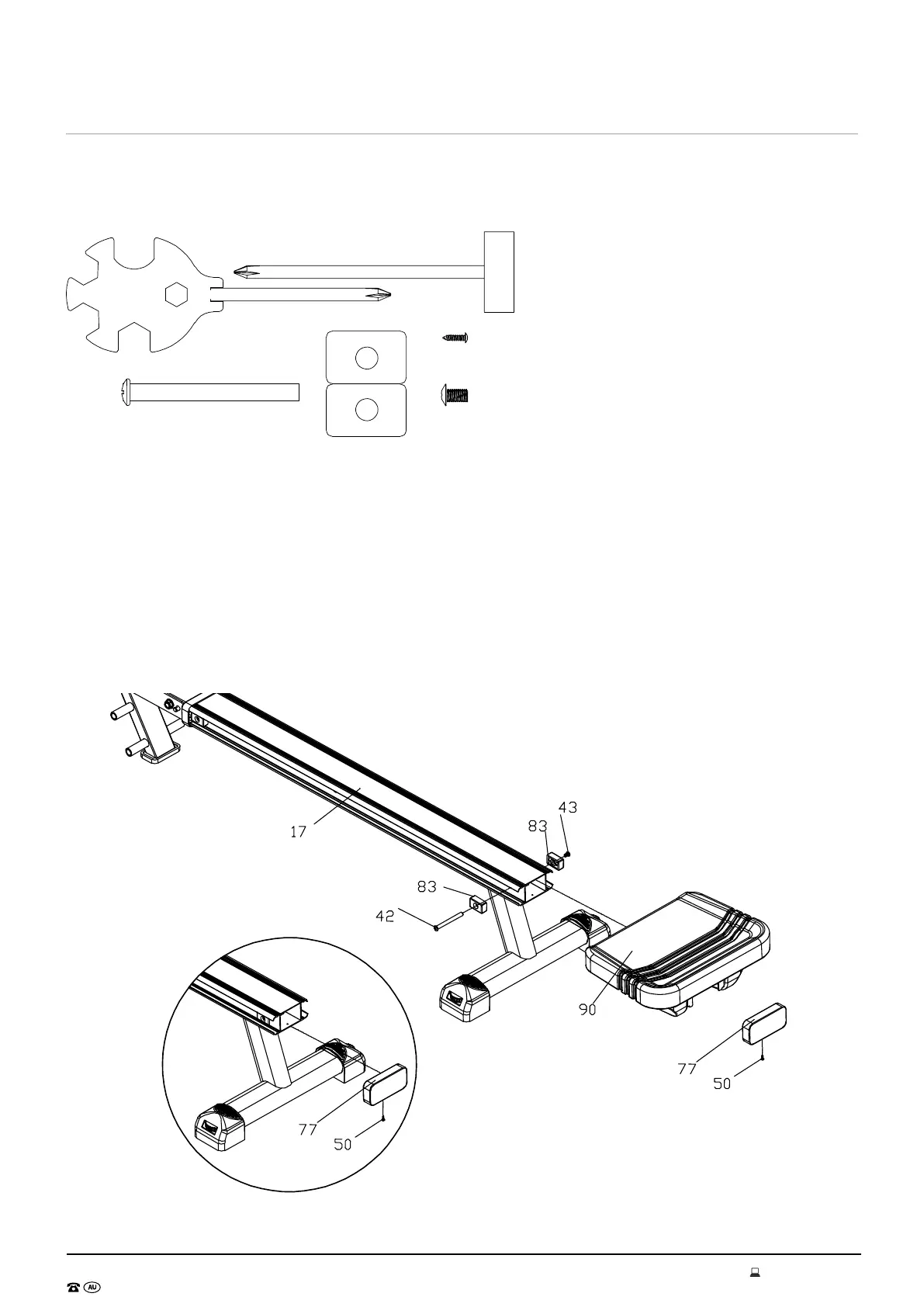

Slide the Saddle (90) onto the Sliding rail (17), then insert the M6*80 flat cross head bolt(42) through 1 x
Saddle carrier PP blocker (83), the holes on the rear end of the rail, and the other blocker.
And finally lock the M6*10 round cross head screw (43) on the end of the bolt. Plug the Sliding rail end
cap (77) on the rear end of the rail and use M3*10 self tapping screw (50) to lock it tight.
.
Spanner screw driver
