MODEL: S002391 PRODUCT CODE: 14498 06/2020
Assembly Instructions (cont)
Step 5
(30) OD22*ID13*2.0T
flat washer - 2pcs
(36) OD20*ID8.5*1.5T
flat washer - 4pcs
(46) M8 split washer
- 4pcs
(9) pedals gap tube- 2pcs
Multi-functional spanner

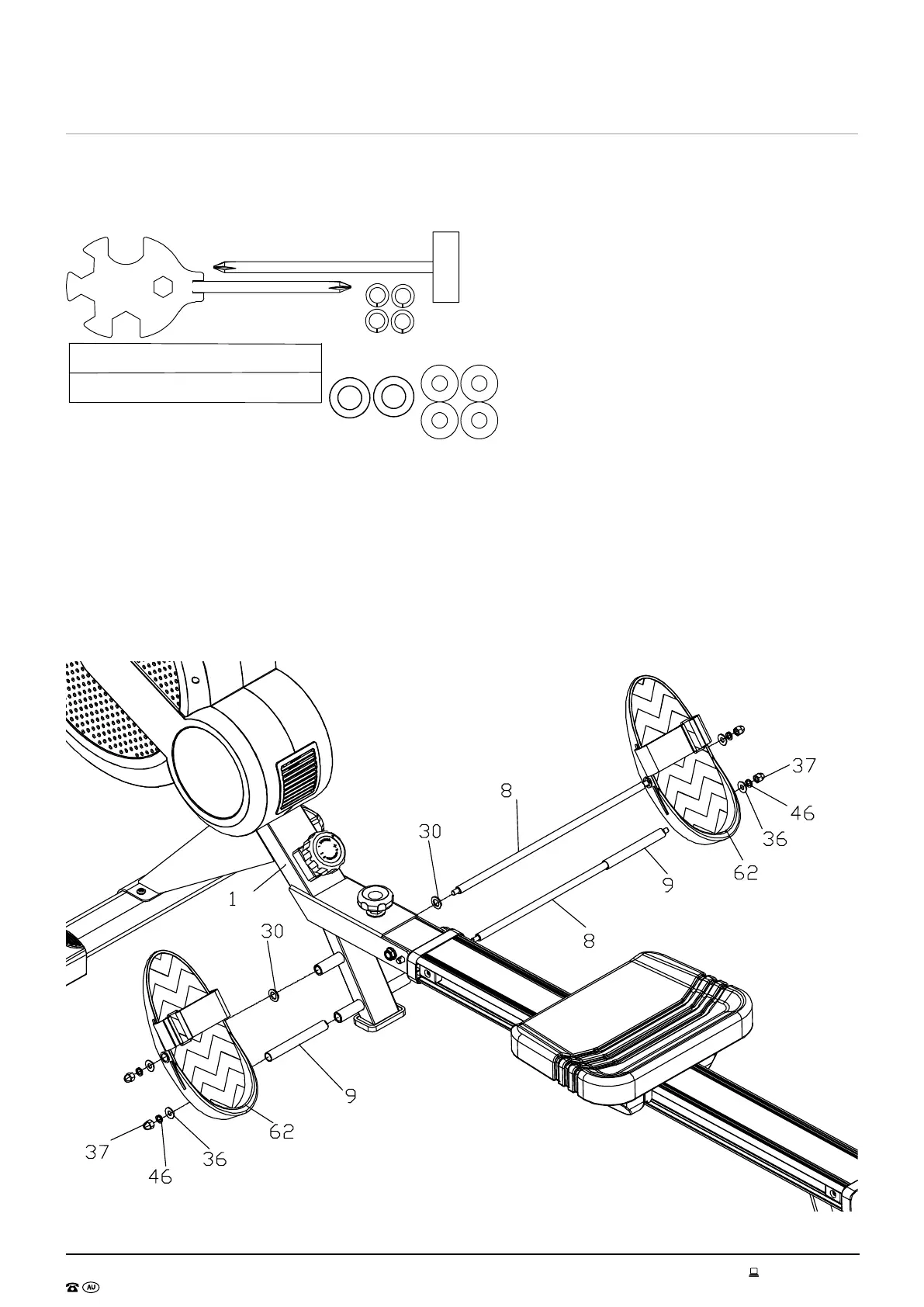

Firstly please identify the two Pedal axles (8) mounted with M8 nut cap (37) out of box.
Insert first Pedal axle (8) through Pedals gap tube (9) and lower holes of the Main frame (1), lock both
ends with the washer(36), M8 split washer (46), M8 nut cap (37) till tight.
Insert the other pedal axle (8) through both washers (30), Pedals (62), and upper holes of the Main
frame (1) , lock both ends with with washer(36), M8 split washer (46), M8 nut cap (37) till tight.
Spanner screw driver
