Crate BT100 User Manual

6

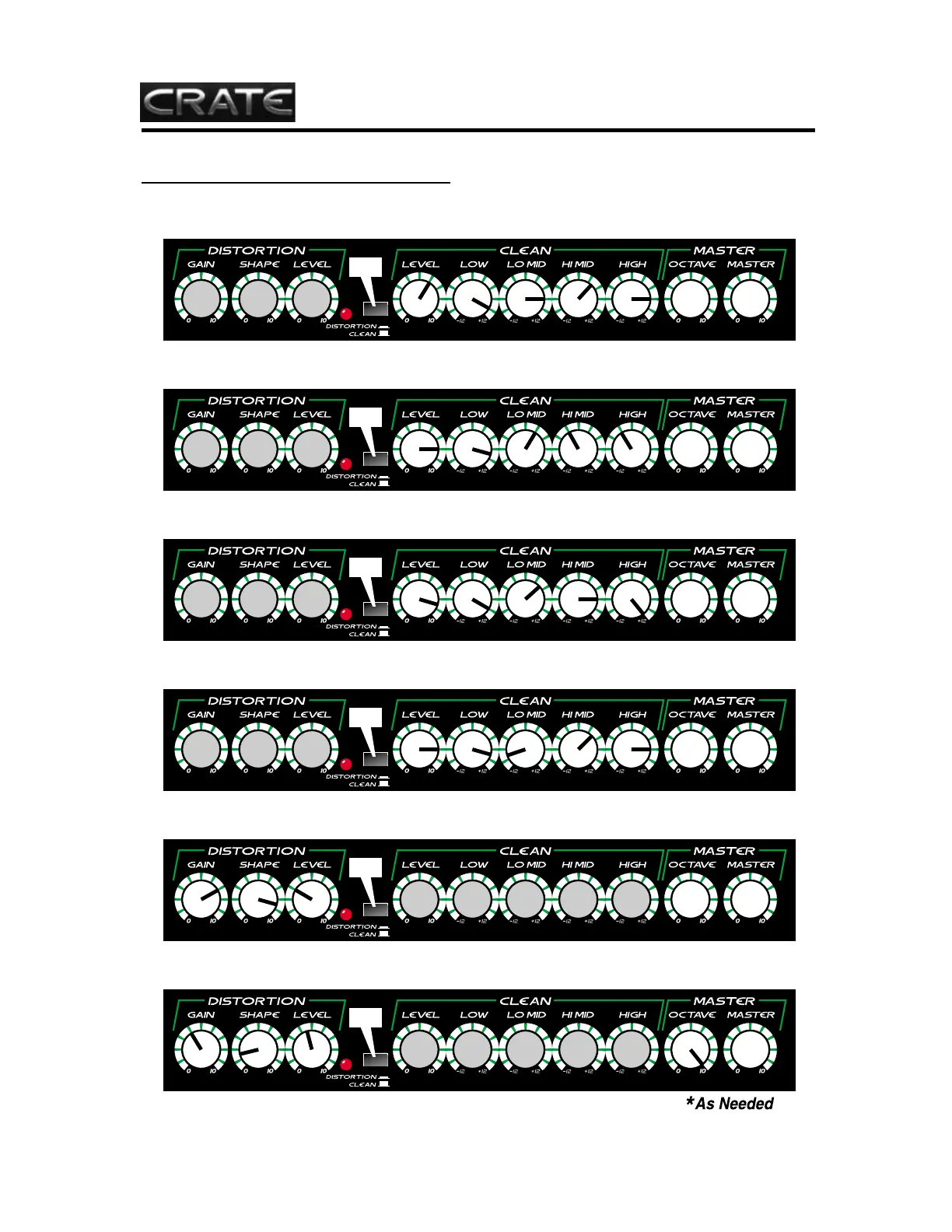

Suggested Starting Settings:
BT100 Bass Amplifier
Rock:
OUT
Jazz:
OUT
Country:
OUT
Funk:
OUT
Solo Fuzz:
IN
Super Fat Fuzz:
IN
**
**
**
**
**
*

Crate BT100 Specifications

Power

output power rating	100W RMS
input power requirements	120 VAC, 60Hz, 115VA

Sound Specifications

gain distortion channel	103dB
clean channel	61dB
tone range low	20dB @ 50Hz
lo mid	24dB @ 150Hz
hi mid	18dB @ 1kHz
high	32dB @ 10kHz
signal to noise ratio	65dB below full power

Inputs and Outputs

input impedance	220k ohms
maximum input signal level accepted	15 volts peak-to-peak
balanced line out jack	2 volts peak-to-peak @ full rated power

Speaker Specifications

internal speaker size	15”
magnet	56 oz.
voice coil	2.5”
rms rating	150 watts
impedance	4 ohms

Weight and Dimensions

size	26-1/2” H x 21-1/2” W x 16-1/2” D
weight	69 lbs
