Crate BV300H User Manual

28.Footswitch Jack: Use this jack to
connect the BVFS4 four-button footswitch to
the amplifier. This allows you to switch
channels and turn the effects loop on and
off - by remote foot control. Connect one
end of the supplied footswitch cable* to
this jack, the other end to the footswitch.
29.Speaker Output Jacks: Use these
jacks to connect your speaker cabinet(s) to
the amplifier. The wiring for the Speakon
®
jacks is Pin 1+ = hot, Pin 1– = ground.
All six Speaker Output jacks are wired in
parallel, which lets you connect the amp to
a bunch of cabinets.
The minimum gauge of the wiring used for
these connecting cables should be 16GA!
30.Impedance Switch: Use this switch to
match the amplifier to the total impedance
of your speaker cabinets. Use the following
chart and make sure that this switch is at
the proper setting before playing!
IMPEDANCE NUMBER OF TOTAL
OF CABINETS CABINETS IMPEDANCE
16 ohms 8 2 ohms
16 ohms 4 4 ohms
8 ohms 4 2 ohms
8 ohms 2 4 ohms
4 ohms 2 2 ohms
31.Slave Out Jack: Use this jack to con-
nect the amp to a slave amplifier, PA amp,
or recording console. The signal at the
Slave Out jack is an attenuated version of
the signal at the Speaker Output jacks.
NOTE: The signal at the Slave Out jack is
capable of potentially damaging certain
equipment. Make sure the Slave Out Level
control is all the way down before connect-
ing anything to the Slave Out jack. Then
slowly increase the Level control!
Never use the Slave Out if the
amplifier is not connected to a
speaker cabinet!
32.Slave Out Level: Use this knob to
adjust the output level of the Slave Out
signal (#31).

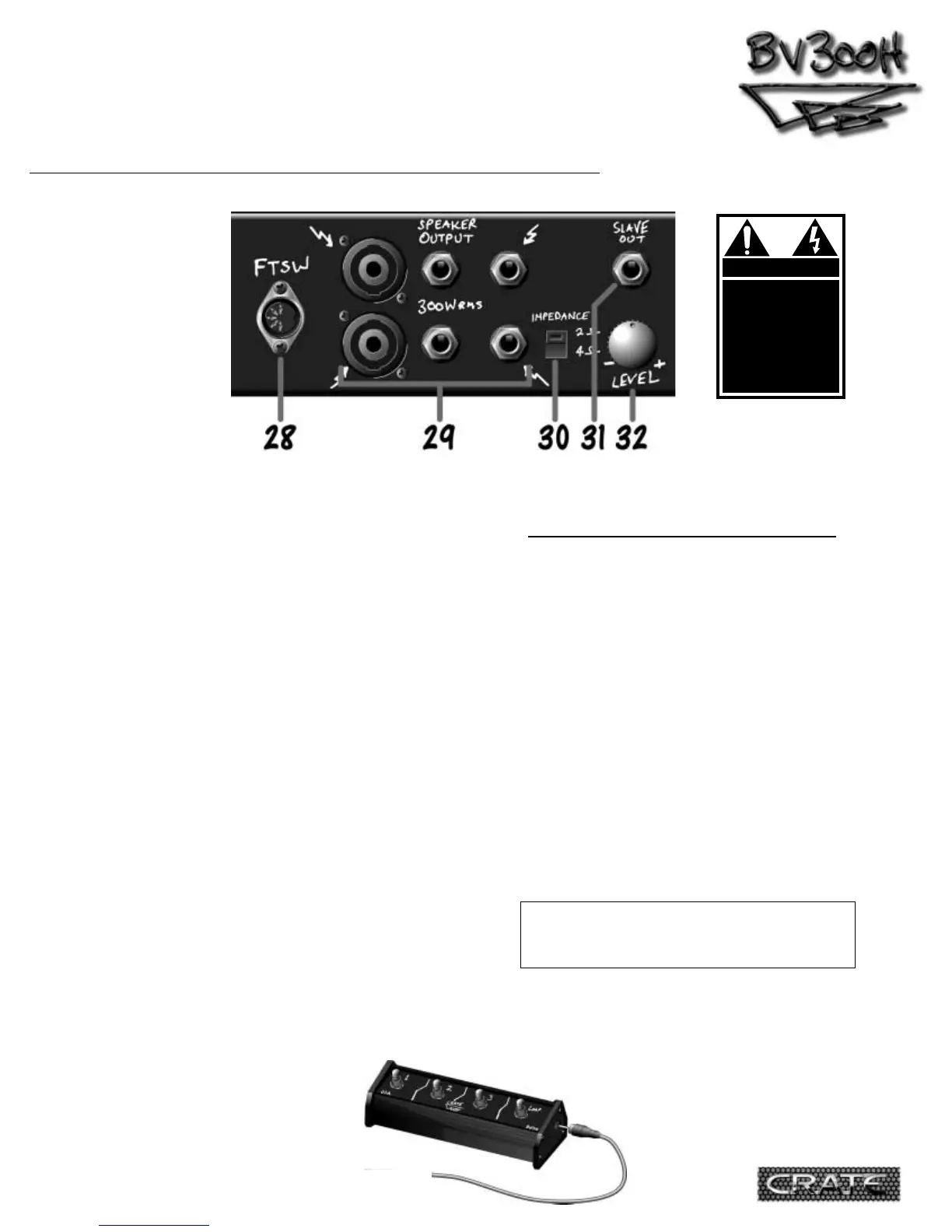

THE REAR PANEL - Footswitch, Speakers, Slave Out:
8
The BVFS4 footswitch - select channels
& turn the effects loop on and off
with just a tap of your foot!
BIG WARNING:
IT MAY BE TEMPTING,
BUT NEVER PLUG
YOUR HEADPHONES
INTO THE SPEAKER
OUTPUT JACKS OF A
300 WATT AMPLIFIER!
*NOTE: You MUST use a
5-wire MIDI cable when
connecting the BVFS4
to the amplifier for
proper operation of
the footswitch.

Crate BV300H Specifications

Output and Signal

output power rating	300 Watts RMS @ 5% THD, 4 ohm load, 120 VAC
signal to noise ratio	75dB Typical
gain channel 1	80dB
gain channel 2	105dB
gain channel 3	105dB

Equalization

low eq channel 1	24dB range @ 50Hz
low eq channel 2	20dB range @ 50Hz
low eq channel 3	18dB range @ 100Hz
mid eq channel 1	+10/-22dB @ EQ Switch
mid eq channel 2	10dB range @ 750Hz
mid eq channel 3	20dB range @ 1.2kHz
high eq channel 1	38dB range @ 5kHz
high eq channel 2	12dB range @ 2kHz
high eq channel 3	25dB range @ EQ Switch

Power

power requirements	120 VAC, 60 Hz, 600VA, 100/115 VAC, 50/60 Hz, 600VA, 230 VAC, 50/60 Hz, 600VA

Physical Specifications

dimensions	30”W x 12-1/2” H x 11”D
weight	80 lbs.
