Crate VTX200 User Manual

9
VTX200 Three-Channel Guitar Amplifier with Stereo DSP
Using the Footswitch:
The special Crate four-button footswitch supplied with the VTX200 performs a
variety of functions. The footswitch allows remote channel selection, remote Tap/Save
for each channel, and allows access to an additional DSP preset for each channel of
the amplifier. Use only the supplied Crate four-button momentary footswitch with the
VTX200. A standard 5-wire midi cable (supplied) may be used to connect the
footswitch to the amplifier.
When the footswitch is connected
to the amplifier, the first tap of but-
tons 1 - 3 select the corresponding
channel. Once a channel is selected,
consequent taps of the same button
produce the same results as tapping
the front panel Save/Tap button – you
can use the footswitch to store pre-
sets and set the tempo of an effect.
(See page 8.)
The “original” DSP presets are
active for each channel when the #4
footswitch LED is illuminated. These
are referred to as “DSP Bank ‘A’.”
When the #4 button is switched and
the LED is off, a second DSP preset
may be stored and recalled for each
channel - “DSP Bank ‘B’.”
NOTE: DSP Bank “B” pre-
sets are only accessible
when the footswitch is
connected to the amplifier.
When the footswitch is not
connected, only DSP Bank
“A” is accessible.
FOOT
SWITCH
SENDRETURN
SEND RETURN
STEREO
EFFECTS LOOP
MONO
EFFECTS LOOP

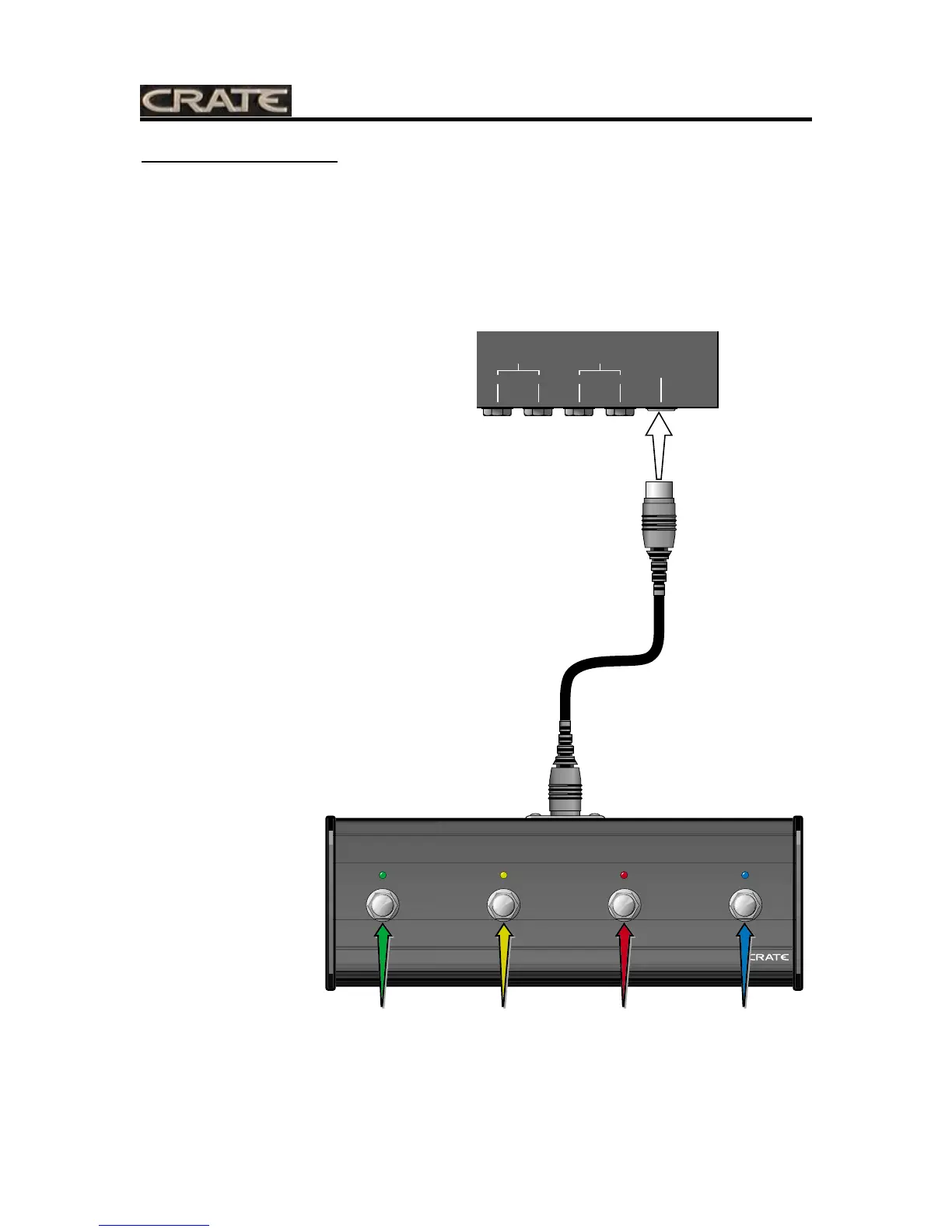

SWITCH #1:
CH. 1 SELECT;
TAP/SAVE FOR CH. 1
FOOTSWITCH
VTX200 REAR PANEL
5-Conductor
MIDI cable
SWITCH #2:
CH. 2 SELECT;
TAP/SAVE FOR CH. 2
SWITCH #4:
LED on: DSP BANK A
LED off: DSP BANK B
4 2
1
SWITCH #3:
CH. 3 SELECT;
TAP/SAVE FOR CH. 3
3
