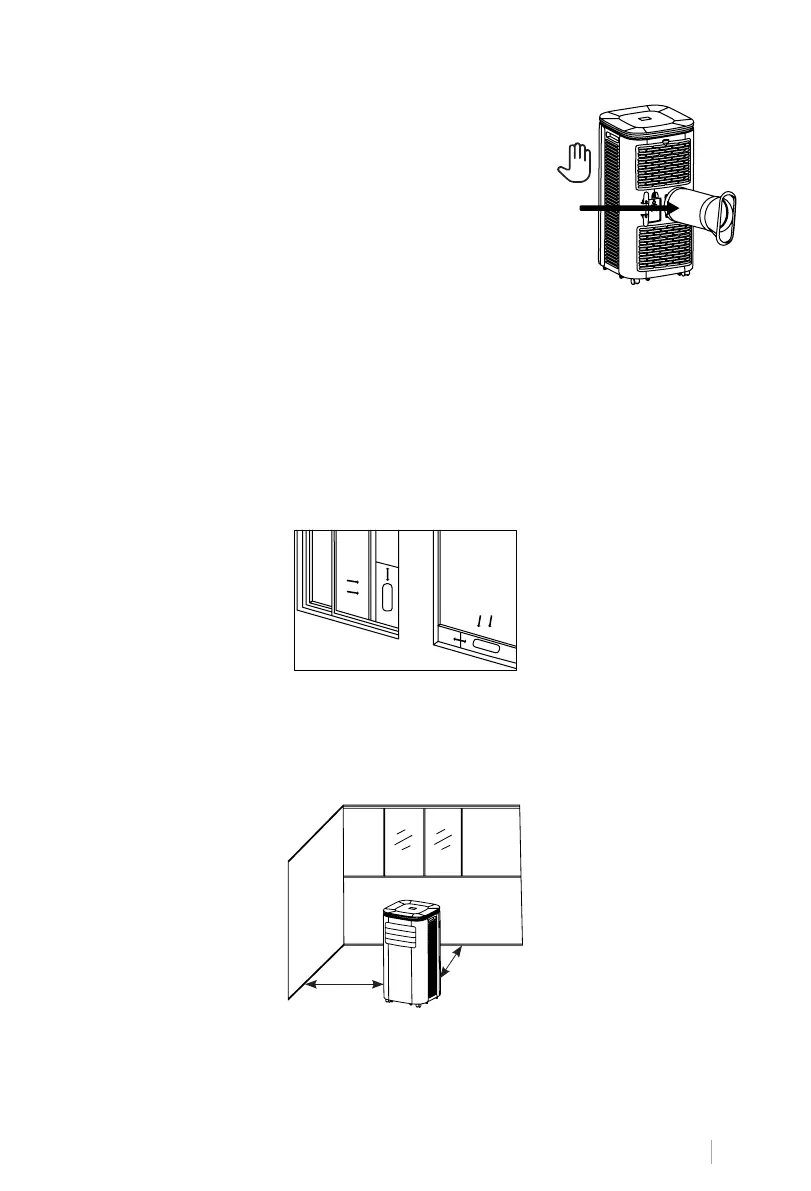

INSTALLATION OF THE HEAT PIPE
INSTALLATION OF THE WINDOW SEALING PLATE
INSTALLATION OF THE APPLIANCE
1. Take out the outer connector assembly and the exhaust pipe
assembly, and remove the plastic bags;
2. insert the heat pipe assembly (the end of the exhaust joint)
into the back panel vent slot (push to the left) and complete
the assembly.
1. Half open the window and mount the window sealing plate assembly to the window. Com-
ponents can be placed in horizontal and vertical direction.
2. Pull the components of the window sealing plate assembly open, adjust their opening dis-

components of the assembly.
Notes
distorted nor have substantial turning (greater than 45°). Keep the ventilation of the exhaust
pipe not blocked.
1. 
the distance between the body and walls or other objects shall be of at least 50 cm.
50 cm
50 cm
