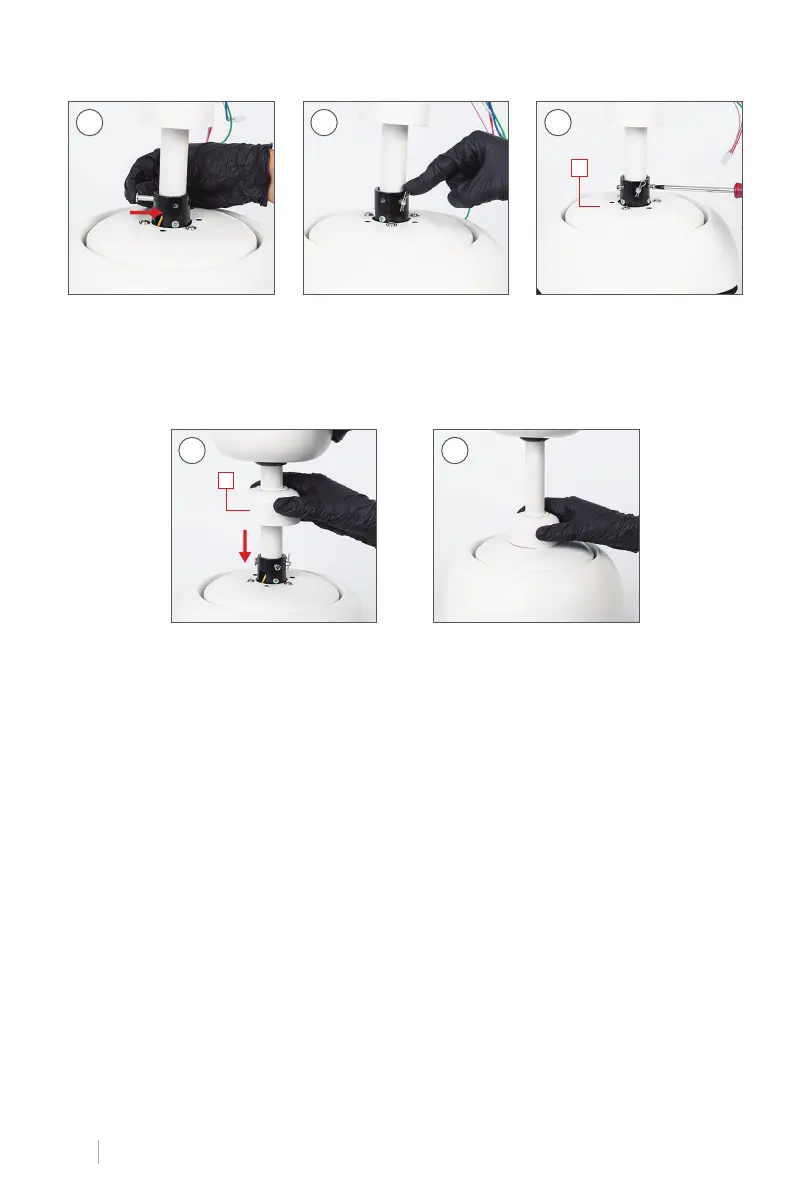

Once the bar has been in-
serted, place the pin of the
part I/J so that it coincides
with the hole in the bar.
Put the locking piece on the
pin so that it does not come
out.
Then replace the screws on
the part H so that the bar is
fully secured.
10 11 12
Once the bar is well anchored to the piece H, slide piece L down. The main body of the fan
motor will be assembled.
13 14
L
H
