• Choose the suspension bar that best suits your situation.
• Remove the bolt from the bar by removing the pin and thread the canopy (roof trim) and
motor canopy through the hanger bar. Next, route the fan motor wires through the inside of
the hanger bar. Fit the hanger bar to the engine and insert the bolt and cotter pin.
CHOICE OF FAN HEIGHT
1. Take out the pin from the bottom of the fan body by remov-
ing the cliq R.
2. Thread the cable through the bar, canopy, and trim, then
seat the bar into the fan body and rotate until the holes in
the bar align with the holes in the fan body.
3. Finally insert the pin through the holes and x it with the
cliq R on the other side.

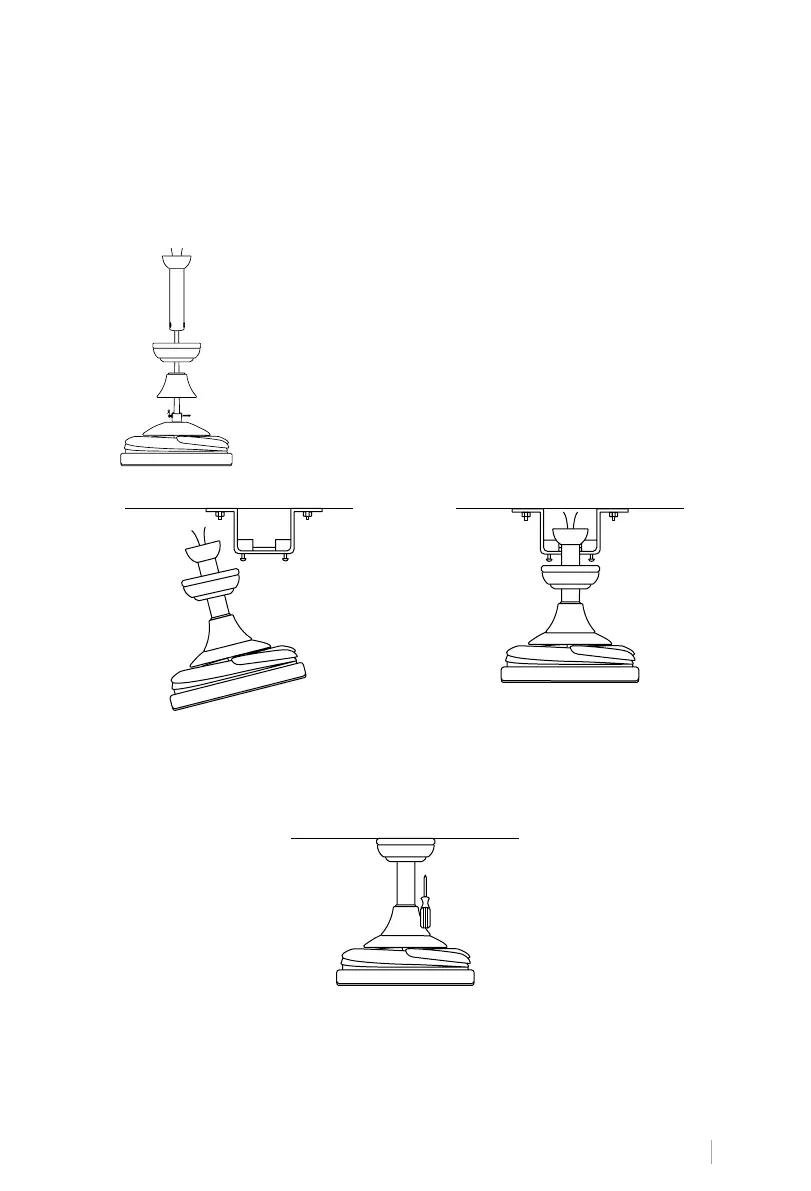

SUSPENSION SYSTEM INSTALLATION
4. Place the down tube with hanger ball on the mounting bracket, rotate the motor assembly
until the mounting bracket check tab has dropped into the hanger ball registration slot
and is seated rmly.
5. Lift the canopy up to the ceiling to cover the mounting bracket (make sure the canopy sits
on the two screws on the bracket), rotate the canopy to make sure the head of the screw is
at the end of the holes, and nally tighten the screws. screws until secure.
