ENGLISH

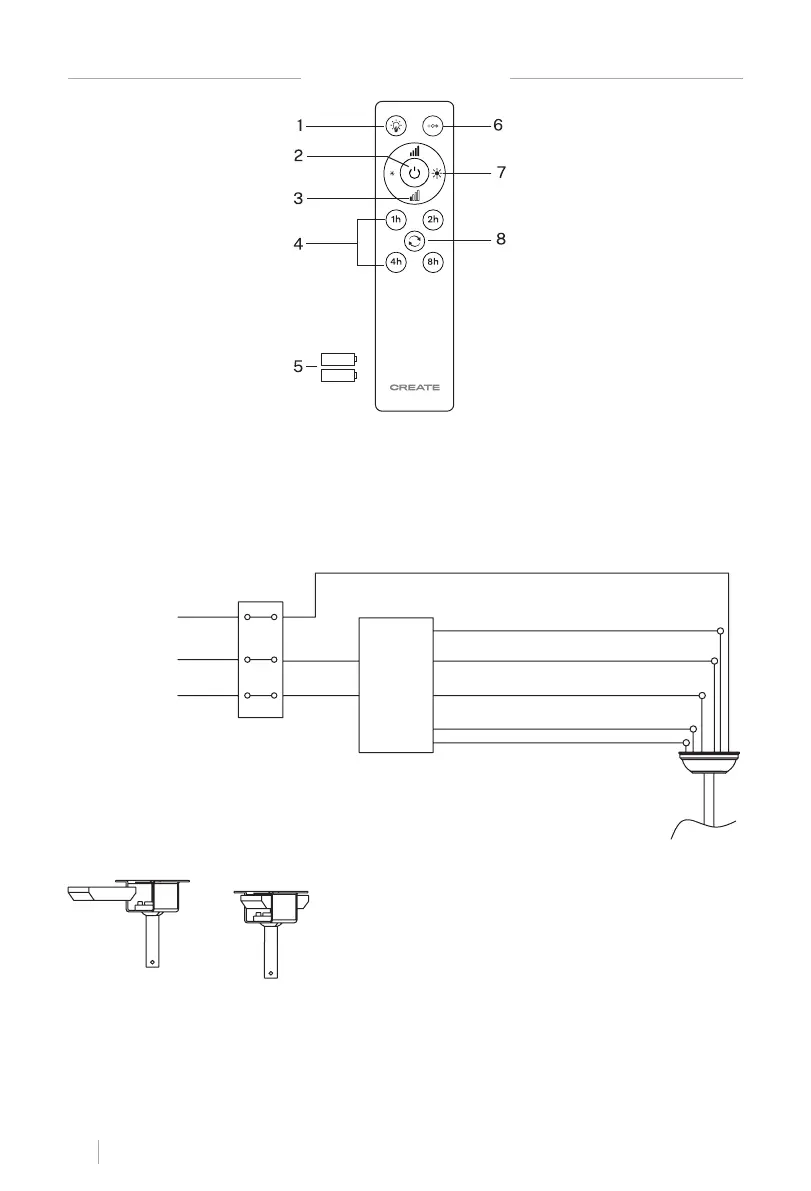

REMOTE CONTROL CONNECTION
REMOTE CONTROL RECEIVER PLACEMENT
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is rm.
DC motor L (red)
Remote
control
receiver
Ground wire
L
N
L input
(black)
Input N
(white)
Neutral N (white)
L clear (blue)
DC motor L (pink)
DC motor L (gray)
Ground wire (green / yellow)
1. **Light
2. On / off button
3. Fan intensity control
4. Timer
5. Batteries (2 x AAA)
6. **Color temperature
control
7. **Fan intensity control
8. Inverse function
REMOTE CONTROL
** Function only available
when the LED board is
installed.
