Creation CT630 - Setting Arbitrary Origin; Knife Control (Raising;Dropping); Resetting the Machine

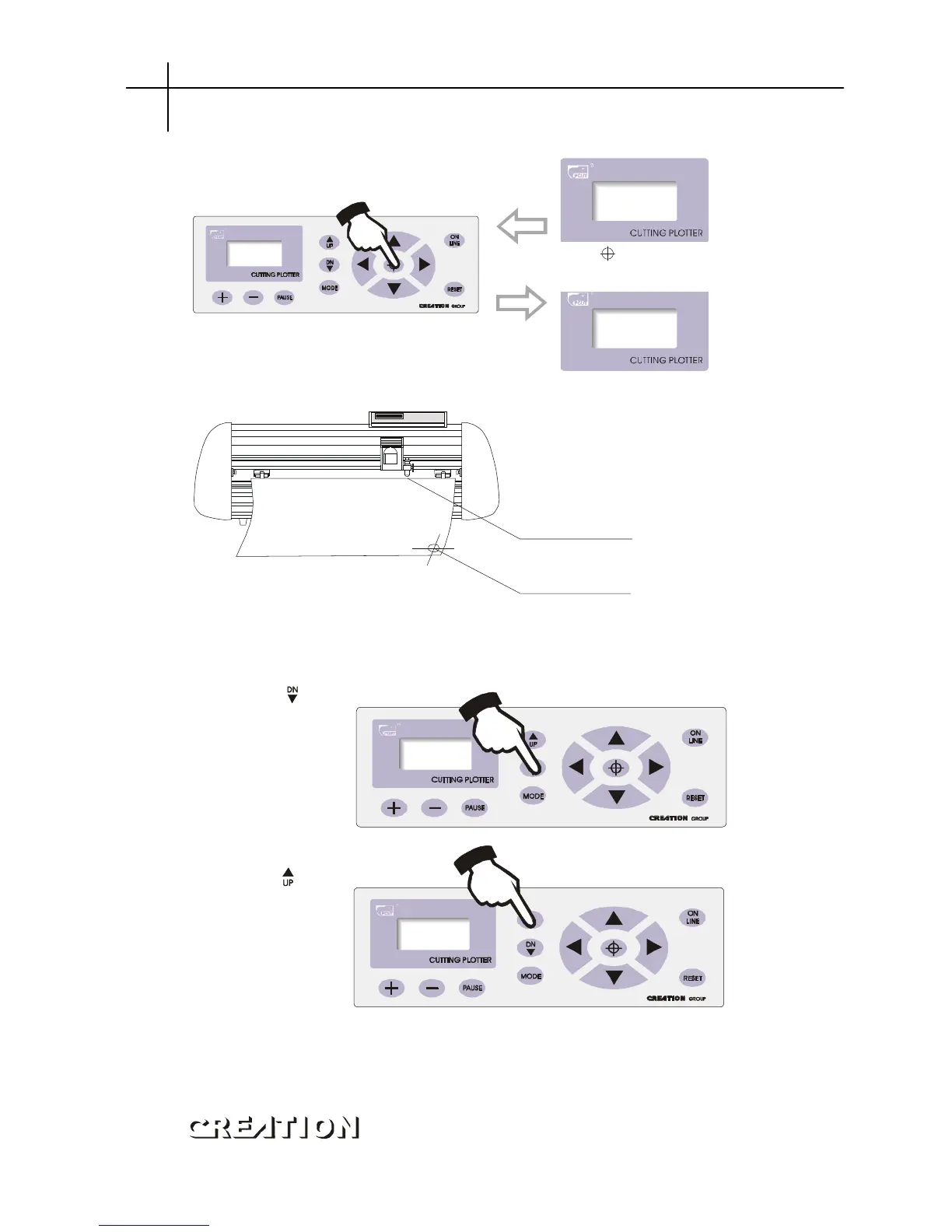

Setting arbitrary origin
X=+00000
Y=+00000
X=+00500
Y=+00500
Press ,fhe valuesXY
wiel be 0
“”“，”
Relational map between absolute origin and arbitrary relative origin。
Arbitrary origin
Absolute origin
6.3.4 Raising knife, dropping knife
While in off-line state, press DN button, the knife will fall, then press UP button to raise
the knife。
Press to drop the knife
Press to raise the knife
“”
“”
6.3.5 RESET
Press RESET button, the machine will reinitialize, the present position of knife top
will be set as new starting origin, all data in buffer memory will be cleared。
Cutting plotter PCUT CT operating instructions PCUT SERIES USER ‘ S
MANUAL
Press“ ”.The values of“x，y”
axis will be 0
