Creda FLORIDA PLUS - ELECTRICAL

5
7. The shower is designed to have an open outlet and should only be used with “Creda”
recommended fittings.
Do not connect the handset until after the shower front cover and corner section are fitted.
WARNING: DO NOT FIT A TAP ON THE SHOWER OUTLET.
WARNING: TAKE CARE TO AVOID RESTRICTING THE OUTLET OF THE PRESSURE RELIEF
DEVICE.
c) ELECTRICAL
WARNING: THIS SHOWER MUST BE EARTHED.
The electrical installation must be in accordance with the current BS.7671 (IEE Wiring Regulations)
and “Part P” of the Building Regulations and/or local regulations
1. The shower unit is designed for a single phase AC electrical supply.
Please check the rating plate on the unit to see what details apply to your shower.
AS A GUIDE ONLY (* Only applies if external earth impedance is less than 0.35 Ohms)
Rating
Cable Sizes
Fuse / MCB
Cable Length
8.5 / 7.8kW 240 / 230V
6.0mm²
10.0mm²
40A Type B MCB
27m Max.
45m Max.
6.0mm²
10.0mm²
45A BS.1361 fuse
12m Max.*
21m Max.*
9.5 / 8.7kW 240 / 230V
6.0mm²
10.0mm²
40A Type B MCB
27m Max.
45m Max.
6.0mm²
10.0mm²
45A BS.1361 fuse
12m Max.*
21m Max.*
10.5 / 9.6kW 240 / 230V
10.0mm²
45A BS.1361 fuse
12m Max.*
Remember to upgrade the cable if it runs in thermal insulation in a loft, or for a longer distance.
2. A means for disconnection in all poles must be incorporated in the fixed wiring in accordance
with the wiring rules.
We recommend a suitably rated ceiling switch mounted in a convenient position.
3. Cut back cable as in Diagram 3.
Connect cable to terminal block making sure that all the retaining screws are VERY TIGHT and
that no cable insulation is trapped under the screws.
WARNING: FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN
FAILURE OF THE TERMINAL BLOCK

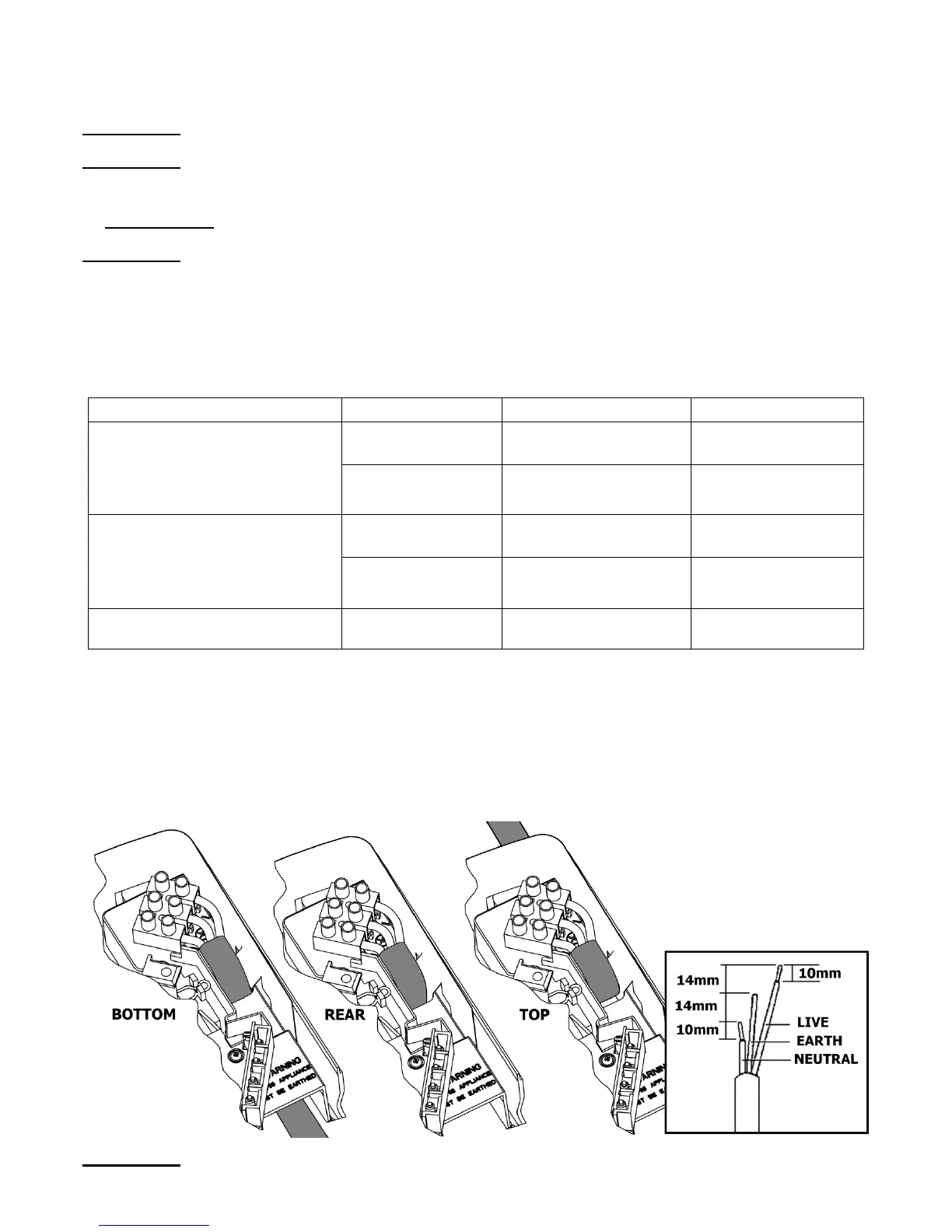

Diagram 3
Cable Entry
Options
