4. Ensure the corner section is fitted back into the backplate.
5. Re-fit the front cover back into position making sure the knobs are aligned correctly with
the flow valve and power selector (see Diagram 5).

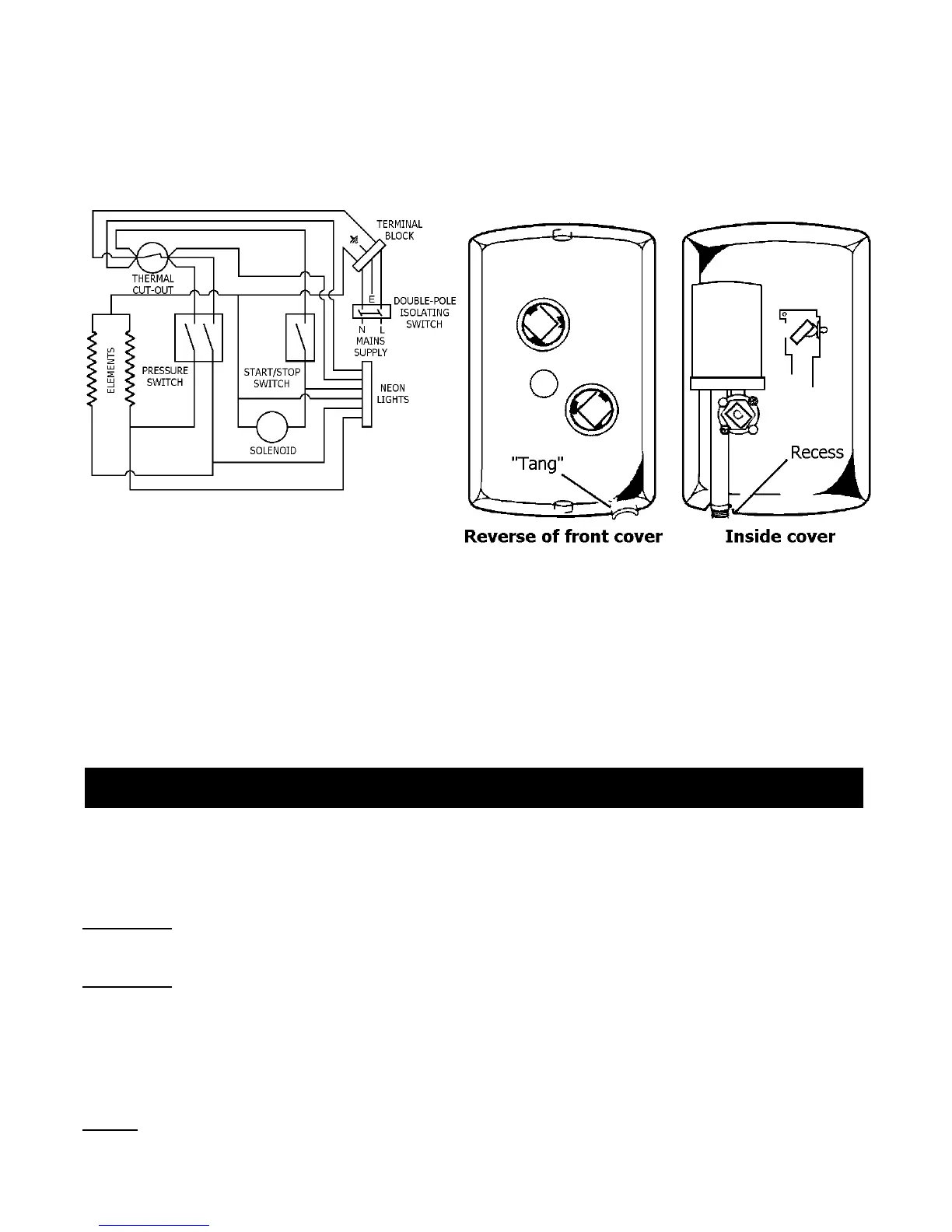

Start by locating the “tang” around the recess for the outlet pipe, and then “roll” the front cover
over the knobs and onto the top of the backplate.
Replace and secure the top and bottom fastening screws.
6. Fit the shower hose, and operate the shower first on cold setting without the handset to flush
out particles, fit the handset and then operate the shower as on page 7 or 12 and check:
a. That the water gets to a satisfactory temperature.
b. Water flow can be adjusted by knob “C”.
c. Power selection does give a change in water temperature and that the power lights
illuminate.
d. Check again for leaks and that the holes in the shower handset are not blocked
7. DEMONSTRATE OPERATION TO USERS
It is recommended that the shower unit and hose etc. be cleaned using a soft cloth and that the use
of abrasive or solvent based cleaning fluid be avoided, especially on any plated finishes.
We recommend that before any cleaning, the isolating switch be turned off, thus avoiding
accidentally switching on the shower.
WARNING: YOU MUST REGULARLY INSPECT THE SHOWER HOSE FOR WEAR AND DAMAGE.
REPLACE IF NECESSARY, OR EVERY TWO YEARS, WITH A CREDA APPROVED PART.
WARNING: IN ORDER TO MAINTAIN THE PERFORMANCE OF YOUR SHOWER,
YOU MUST DESCALE THE SHOWER HANDSET REGULARLY.
All water contains particles of lime-scale, which build up in the shower handset and unit reducing the
performance.
It is therefore important to clean the shower handset by simply rubbing the rubber nozzles, or
soaking in a proprietary lime-scale remover and rinsing thoroughly before use.
NOTE: After use it is normal for some water to drip from the shower handset for a few moments.
This inhibits scale build-up over prolonged use.
